System Windows Series

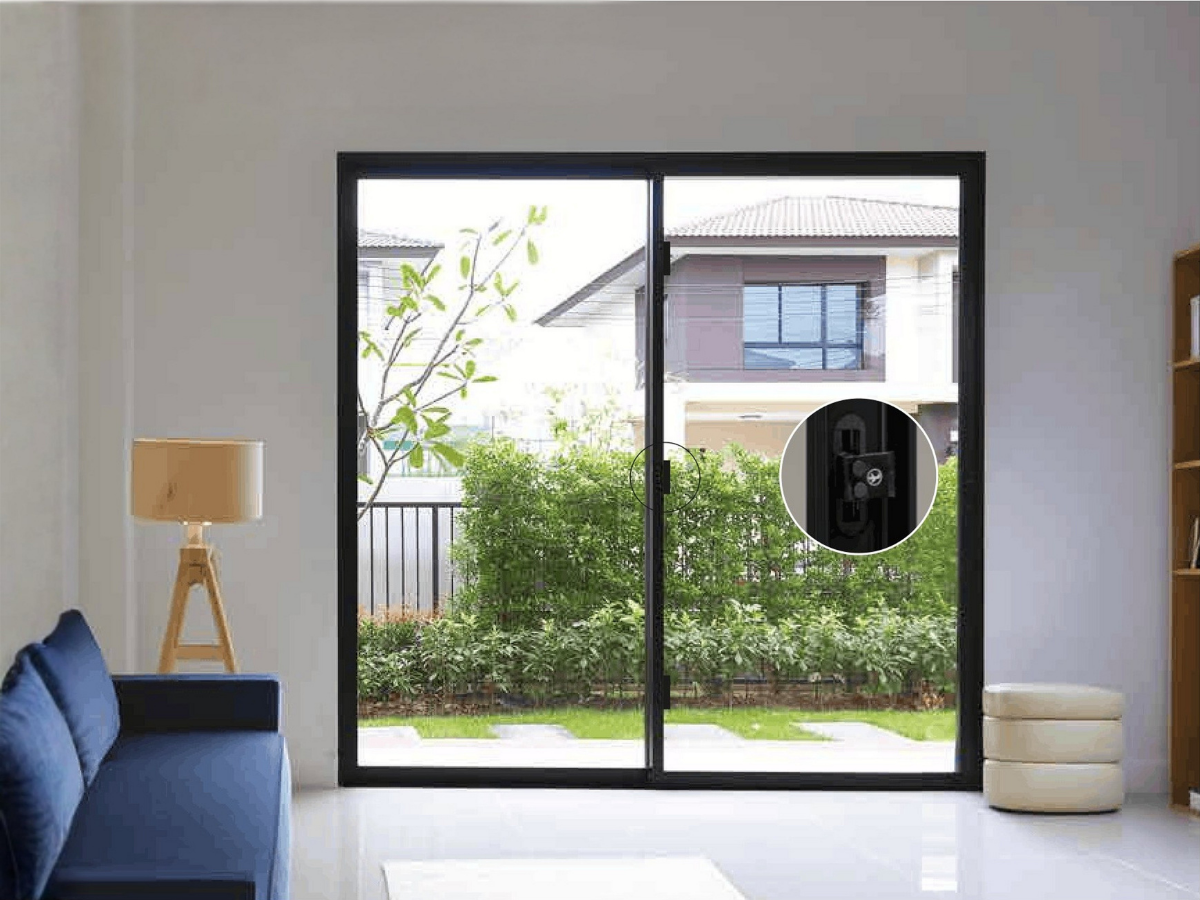

TOT-SD NEX GEN
Sliding series

Product specifications

  • Max sash height (mm): 2700
  • Max sash width (mm): 1050
  • Glass range (mm): 5 – 8

Performance parameters

  • Wind load: 1.6 kpa
    As per class 4A (BS EN12210 : 2000)
  • Air tightness: 450 Pa
    As per class 2 (BS EN12207 : 2000)
  • Water tightness: 250 Pa
    As per class 4A (BS EN12207 : 2000)

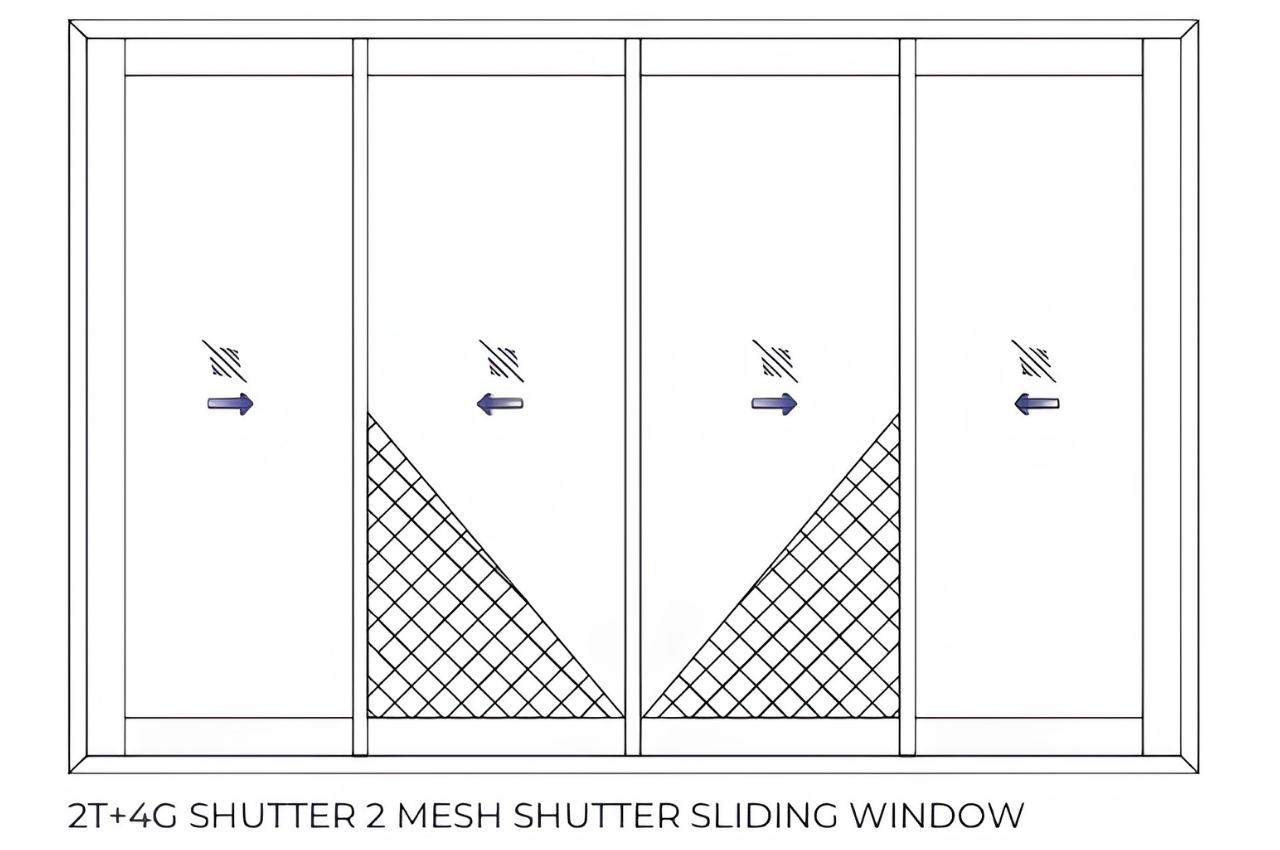

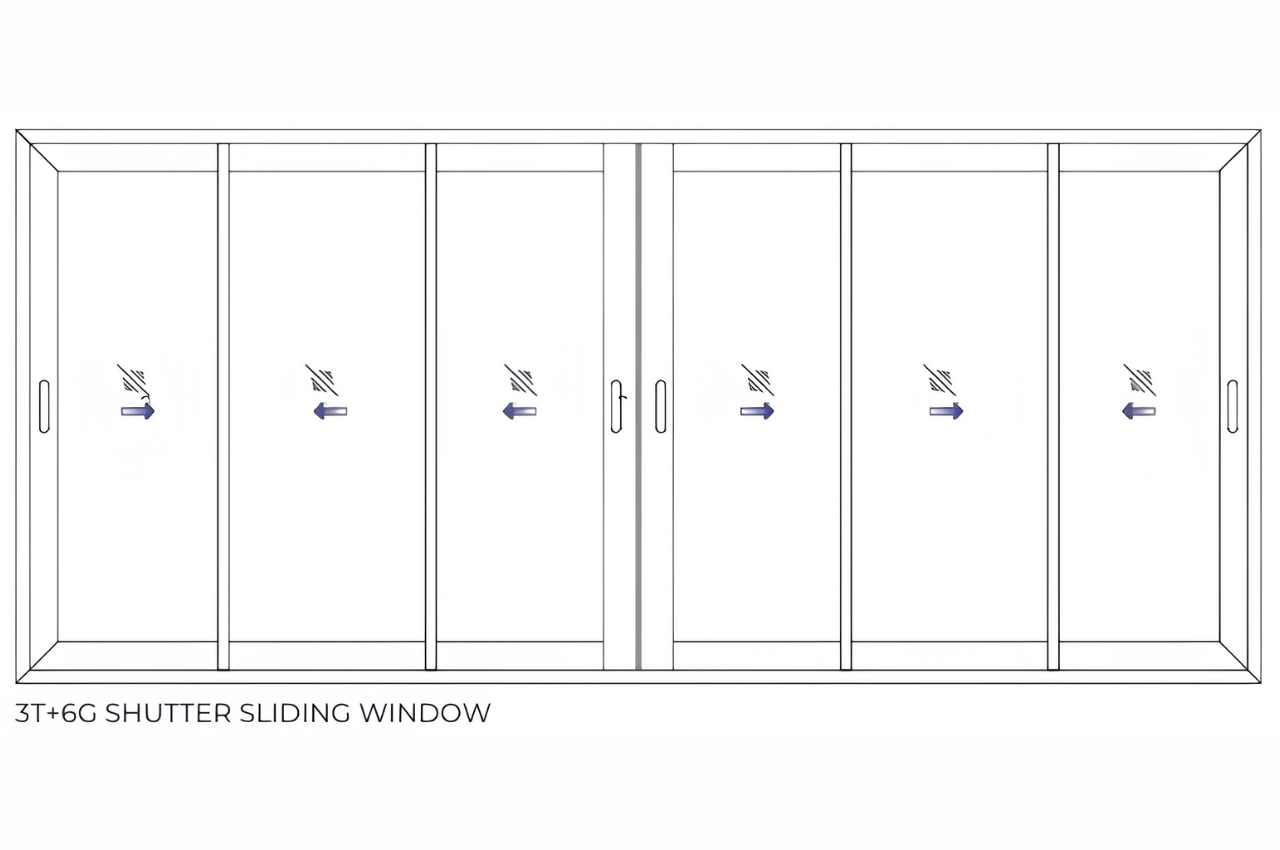

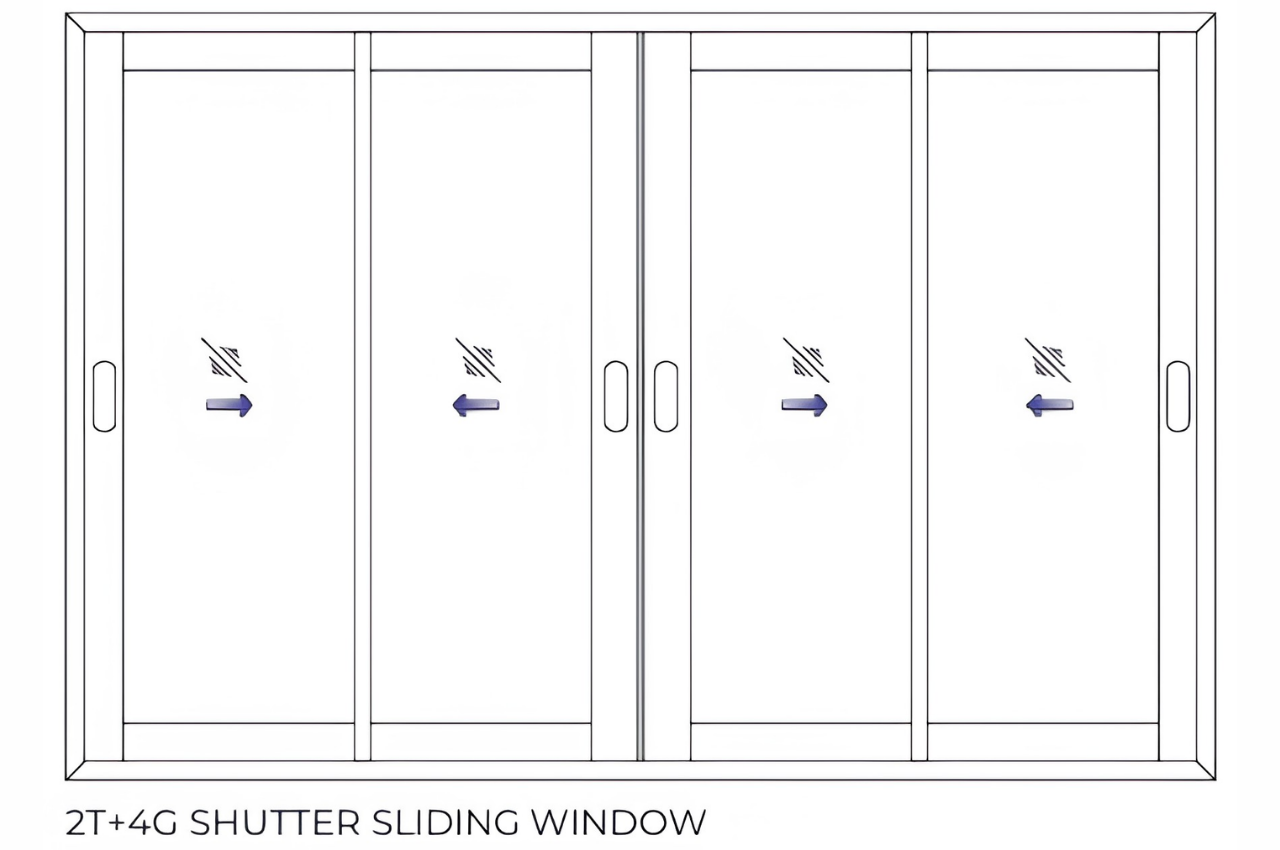

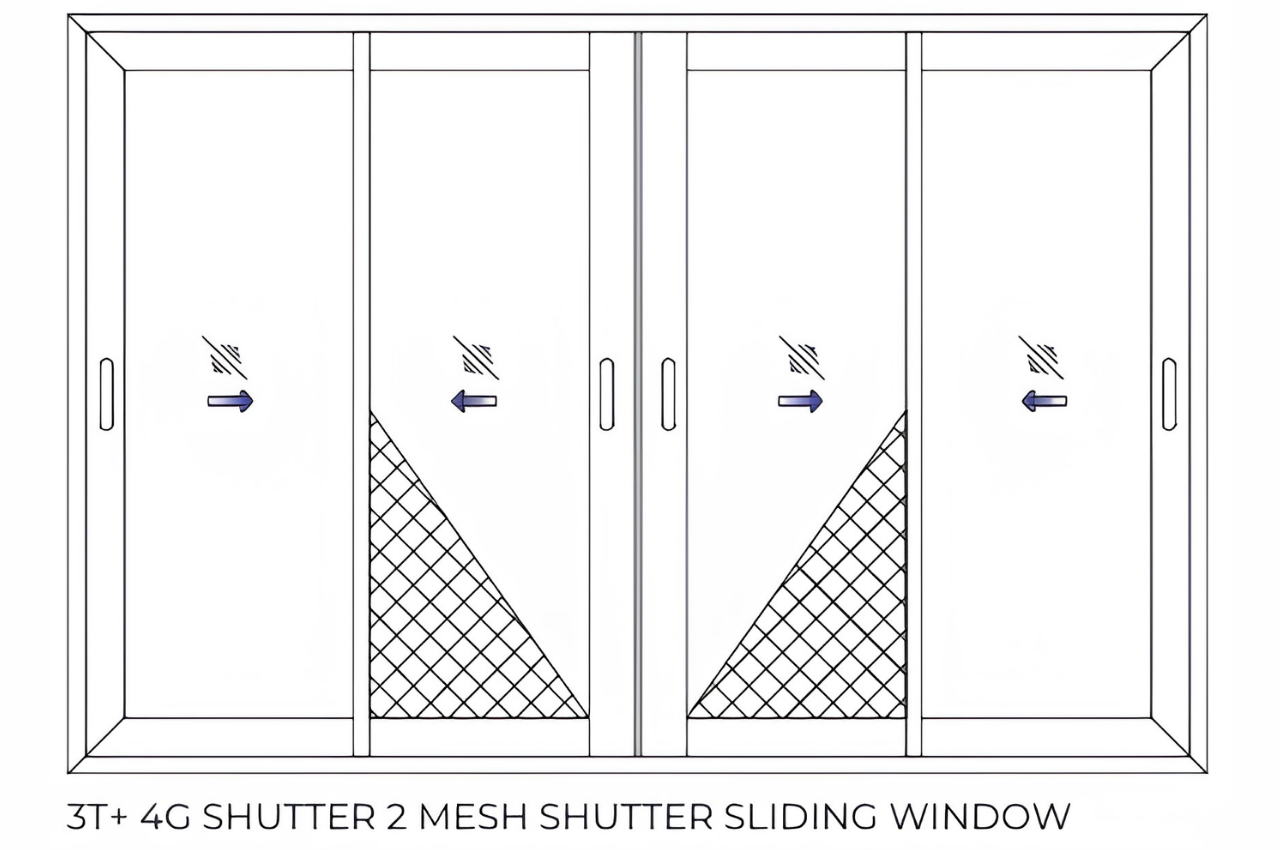

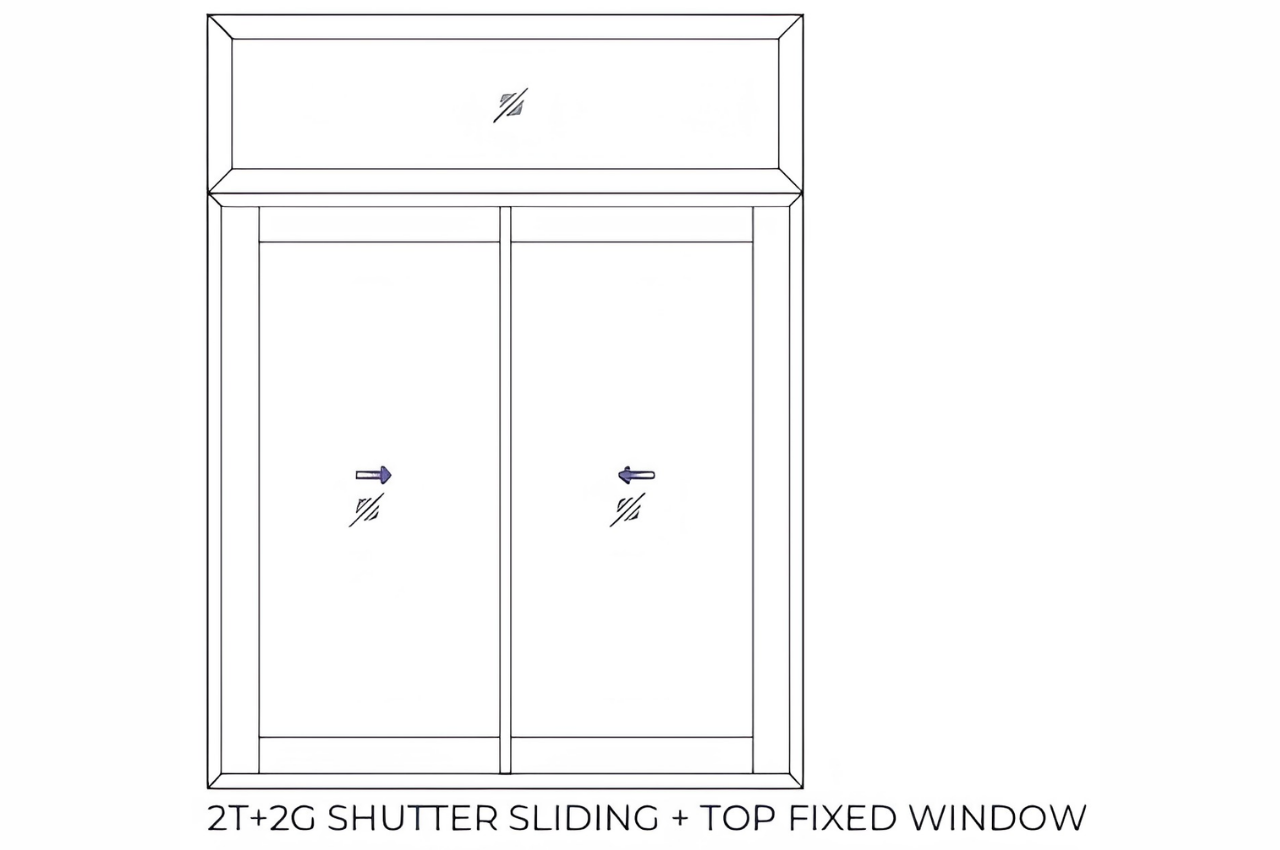

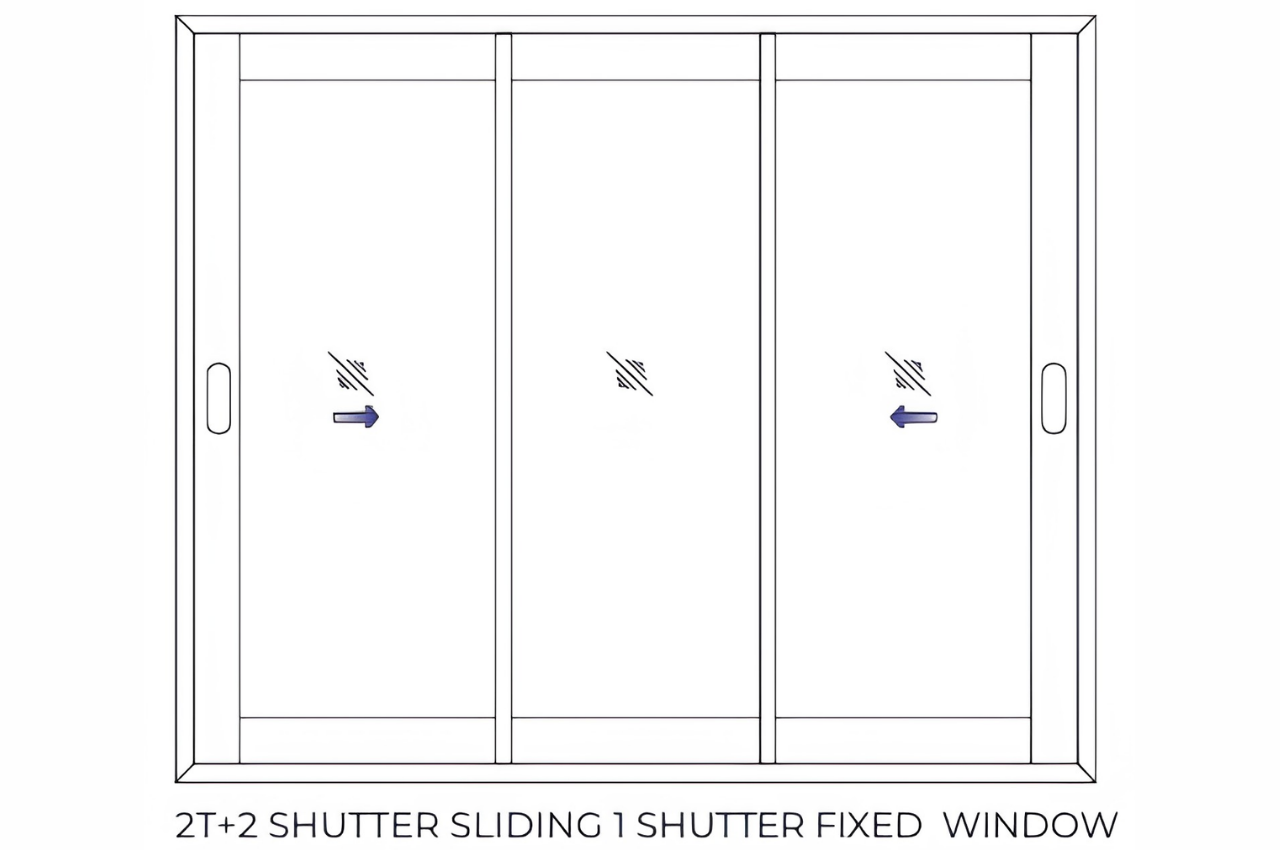

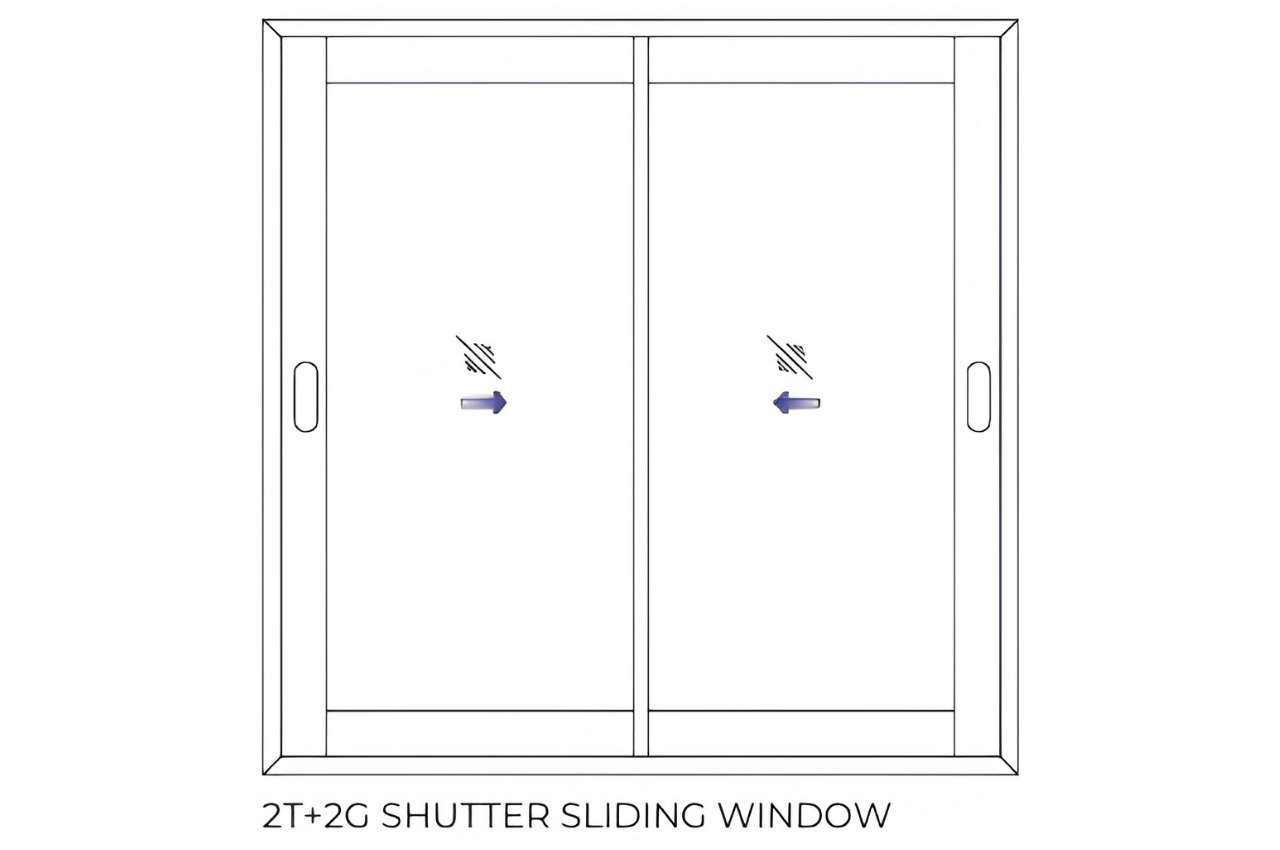

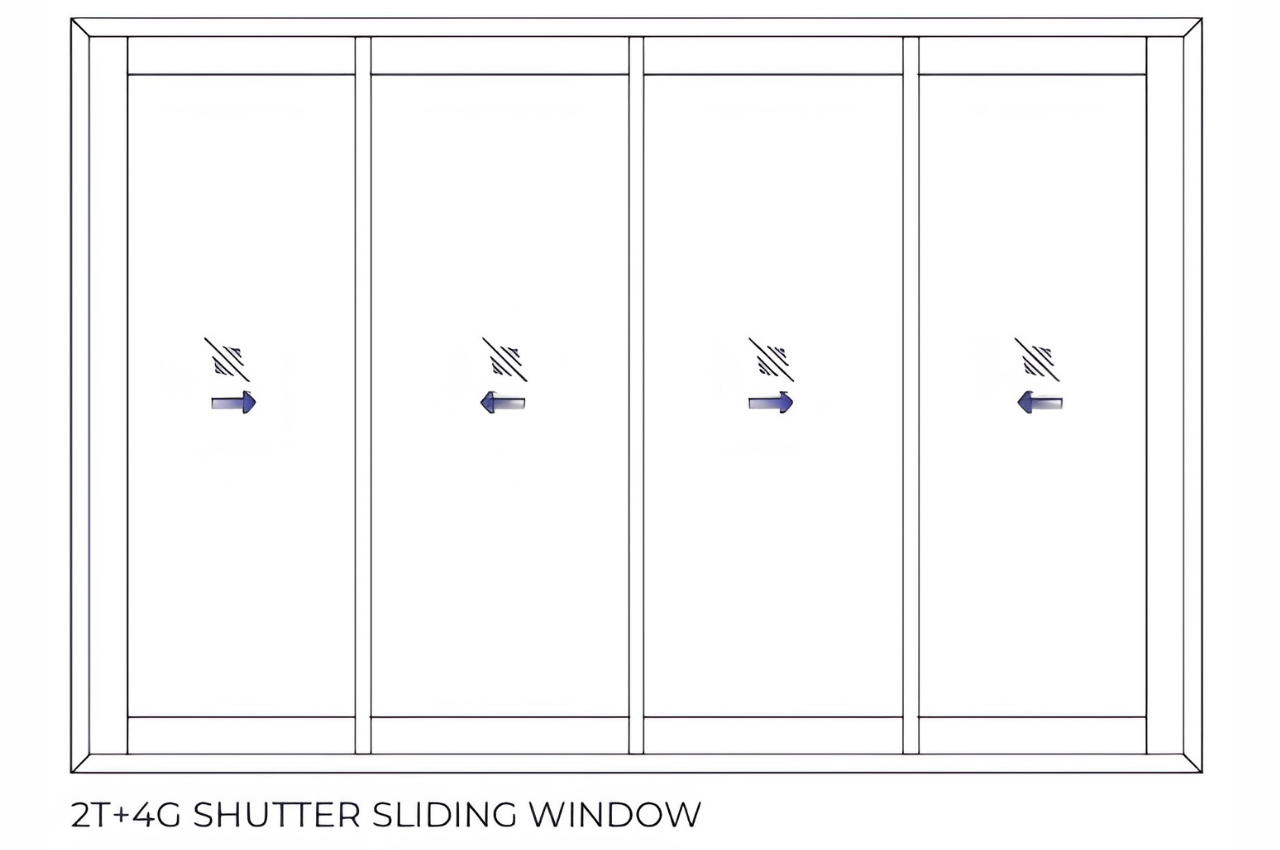

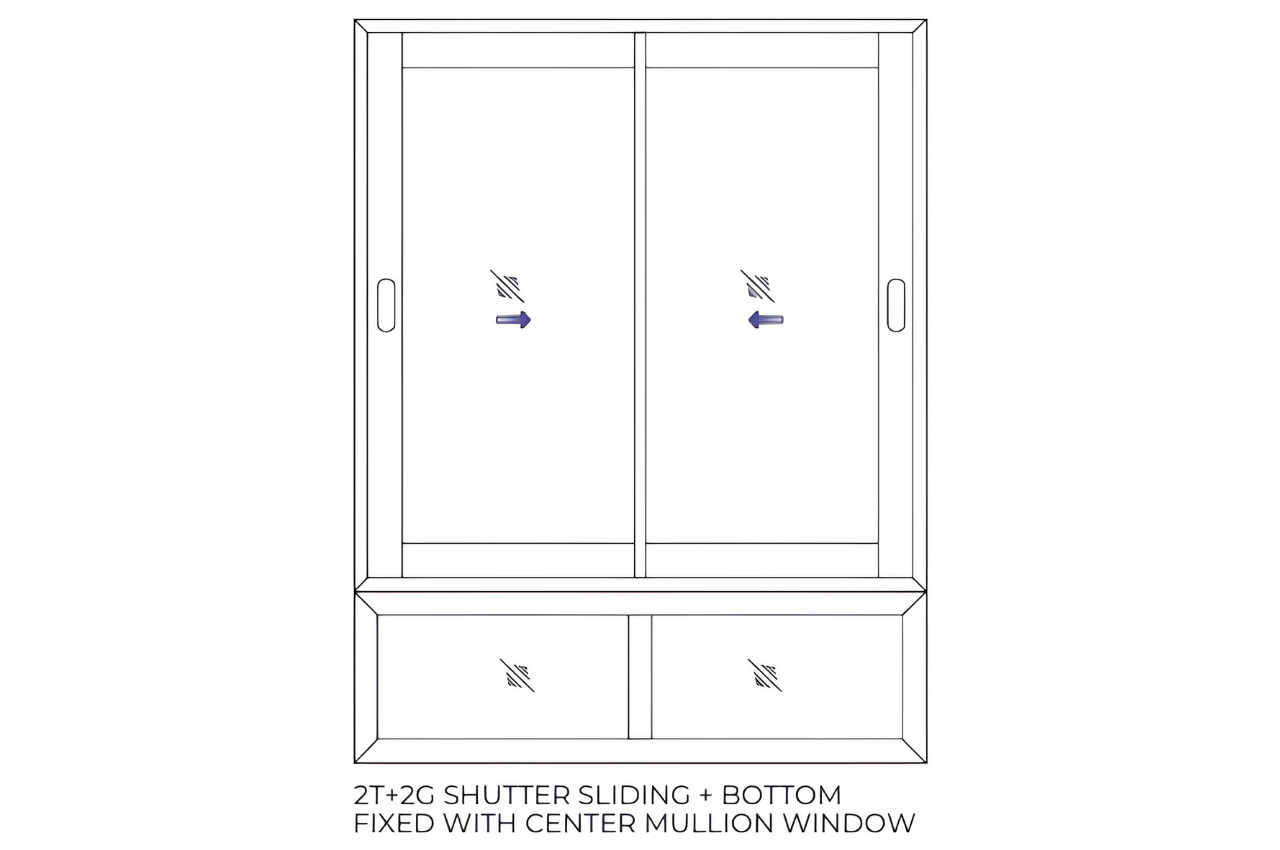

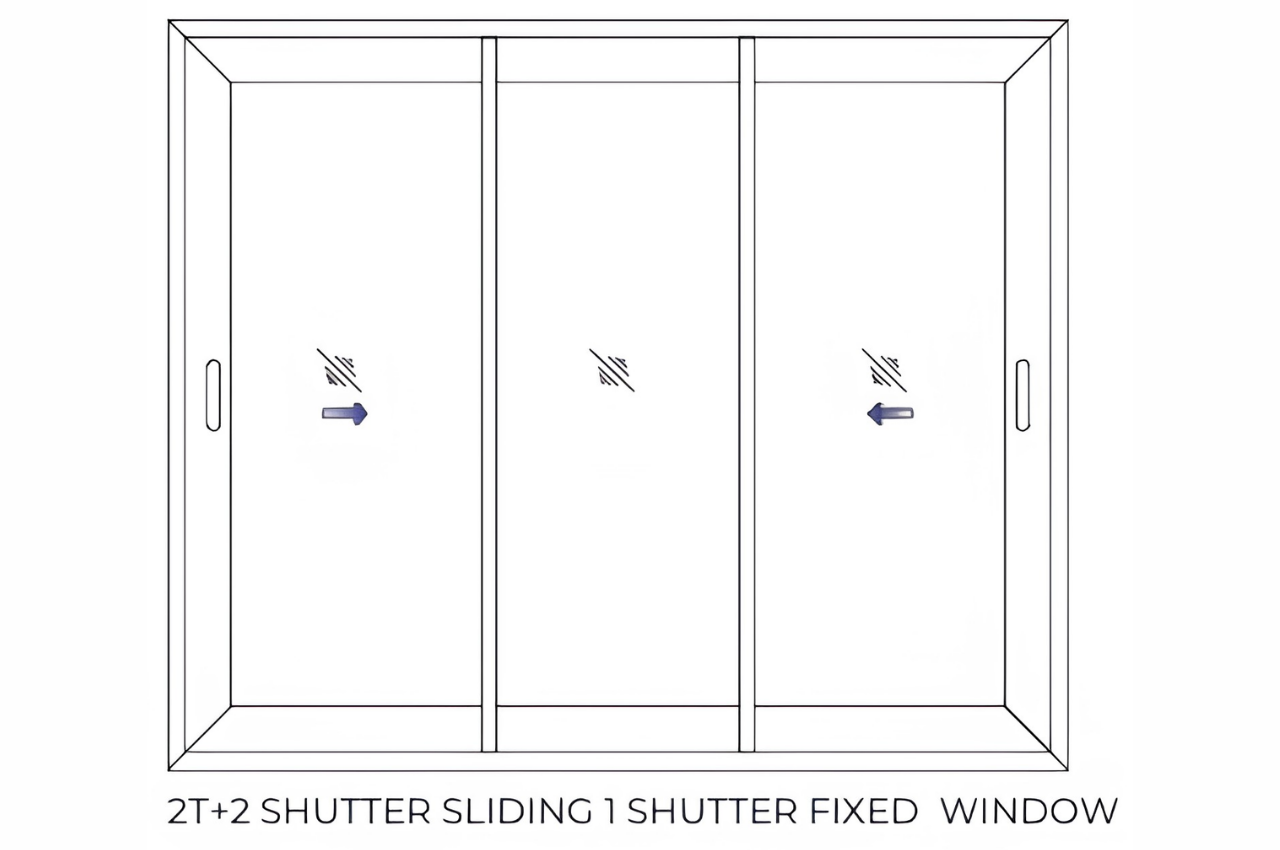

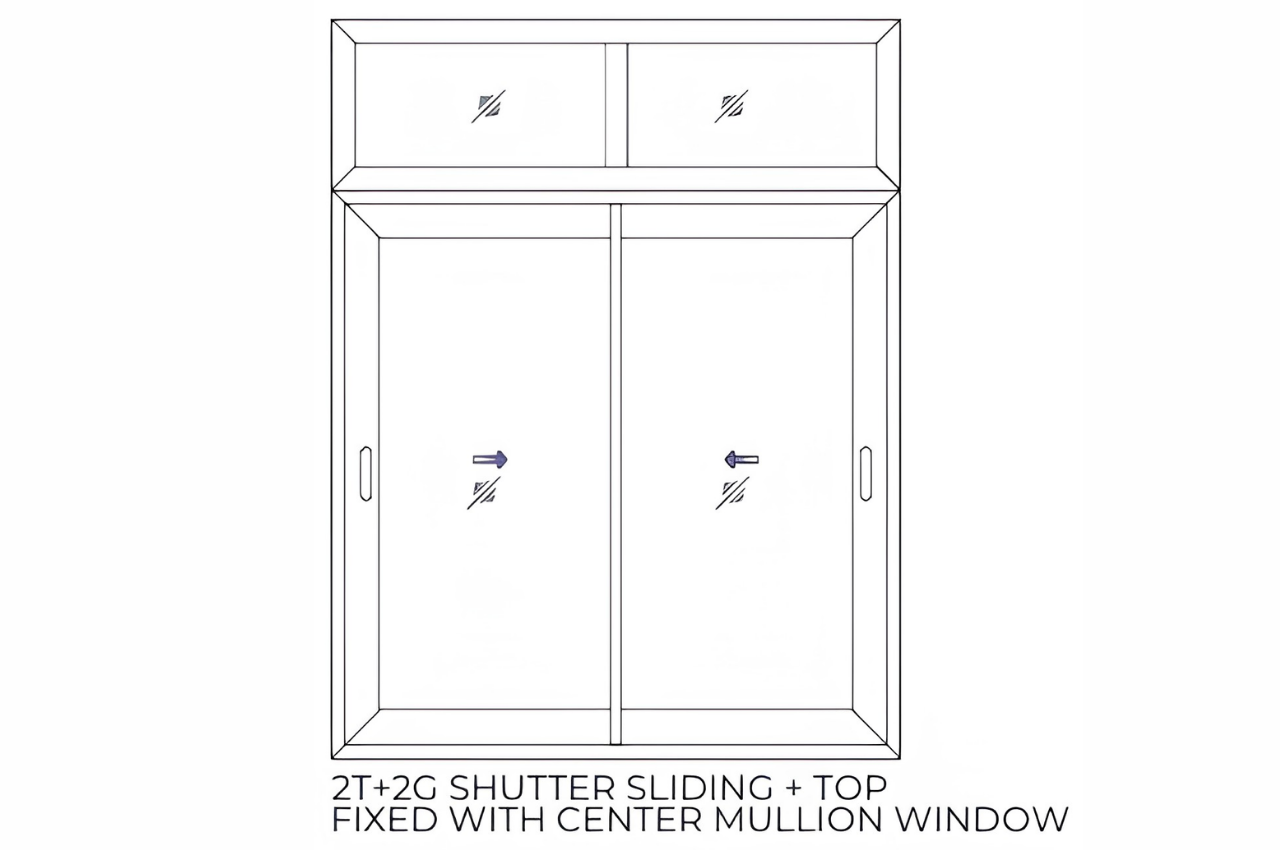

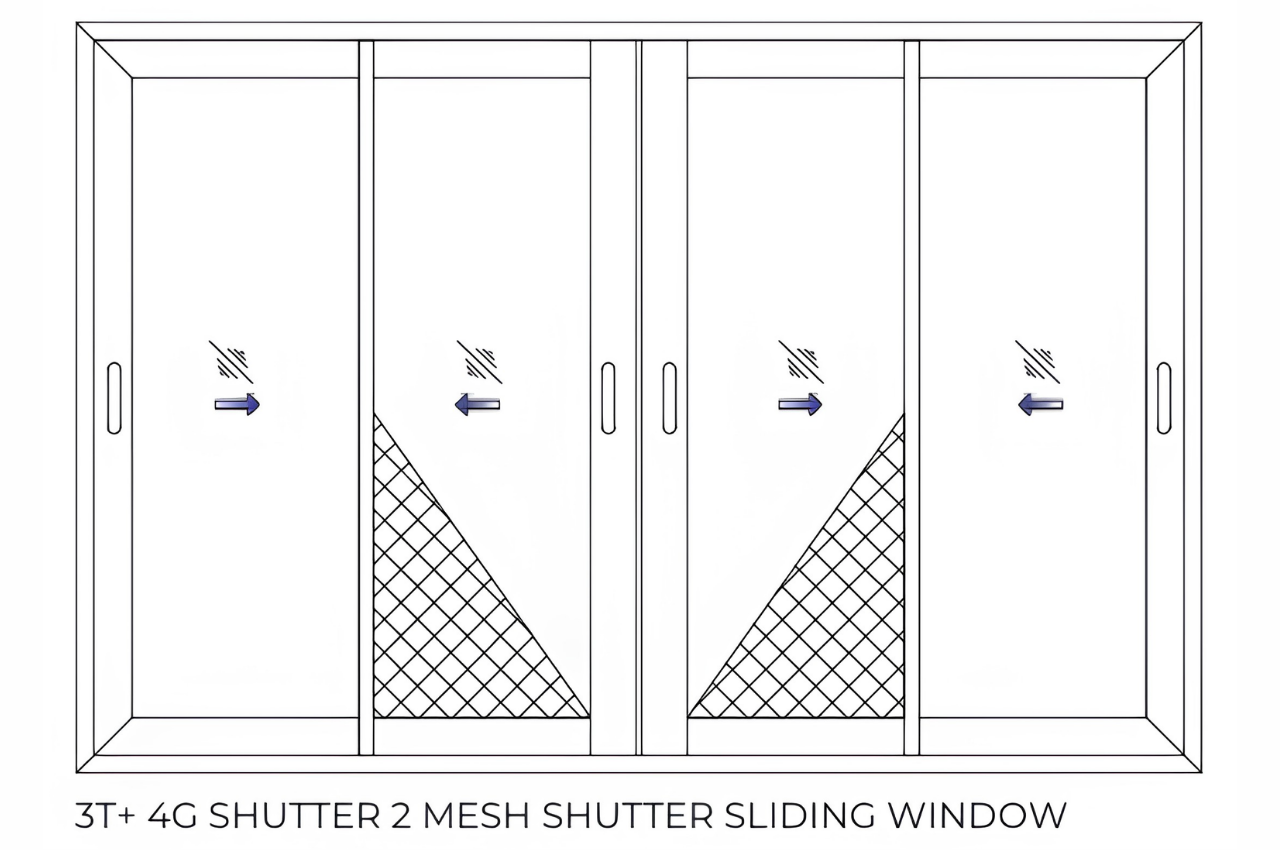

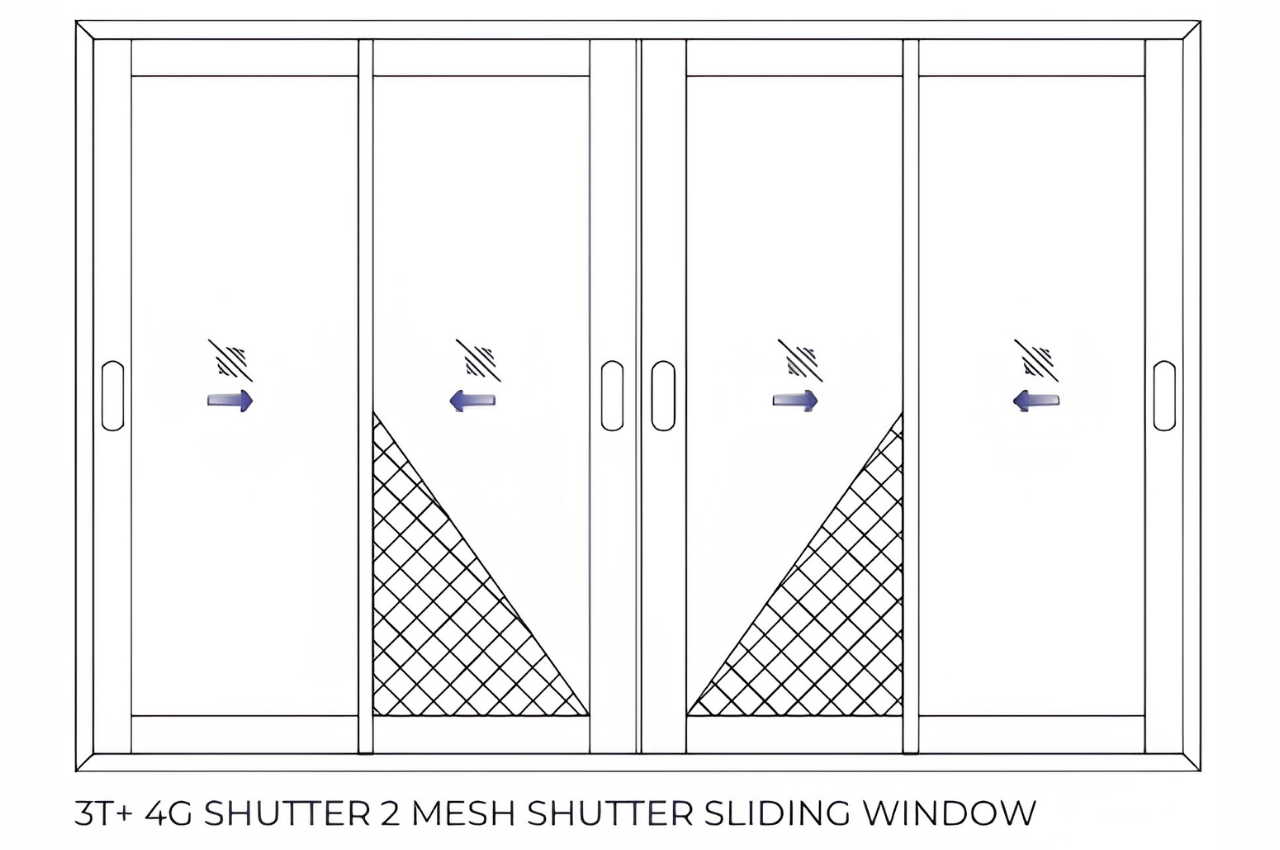

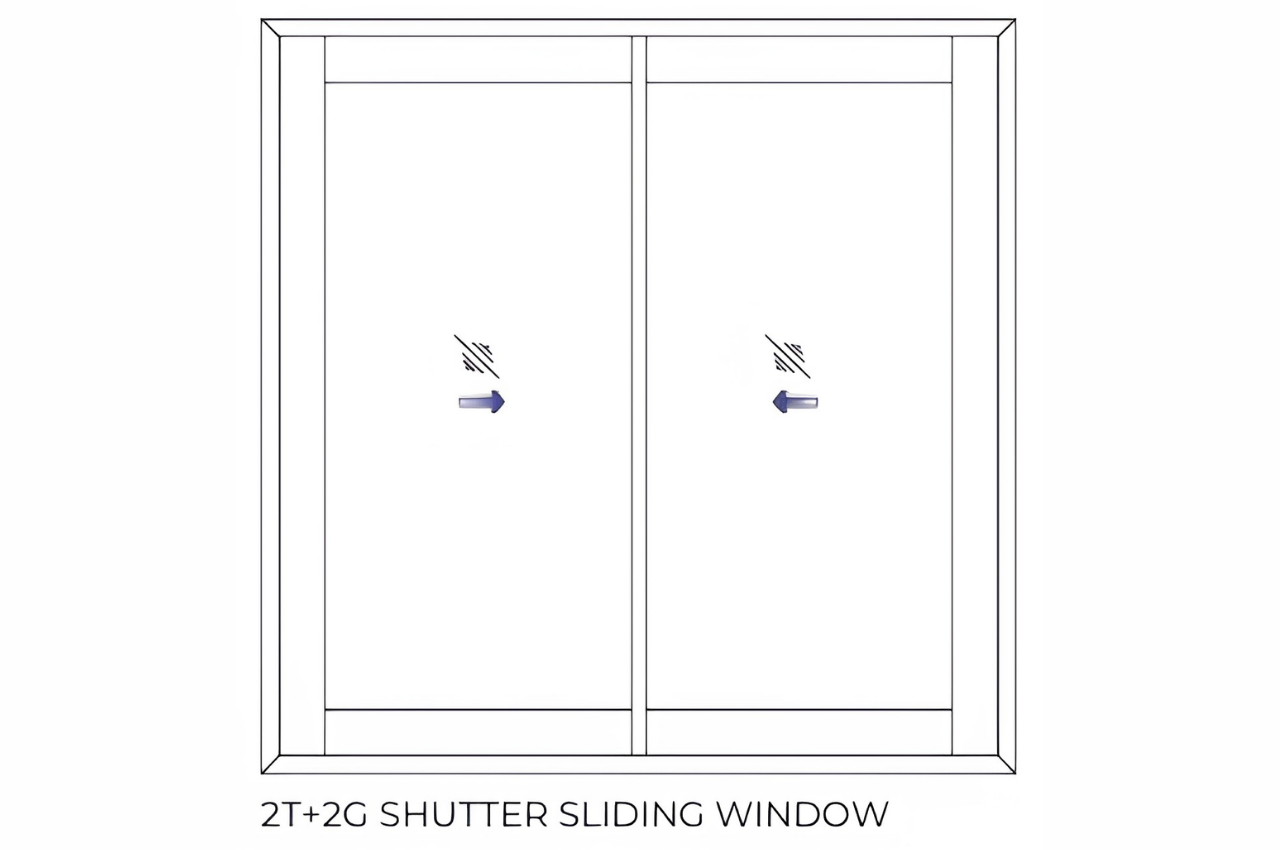

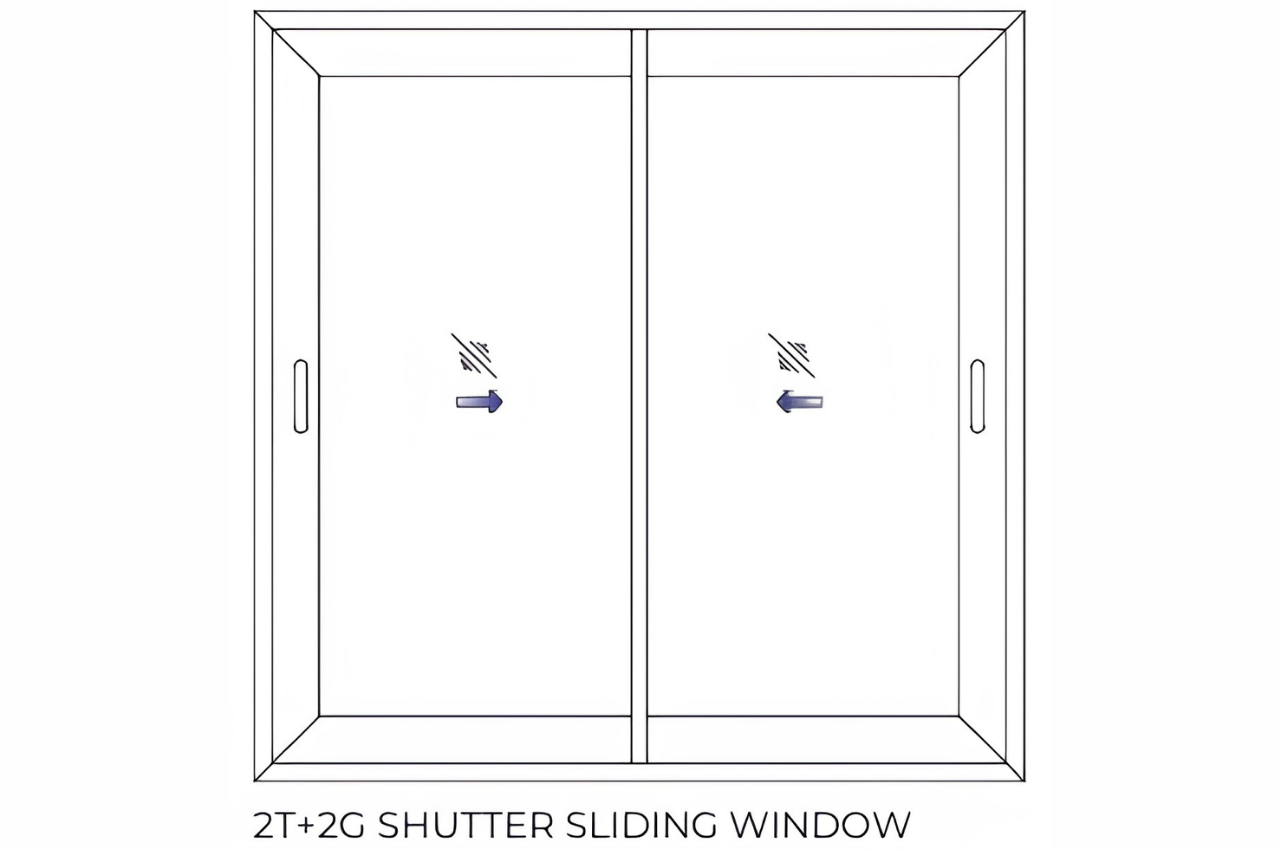

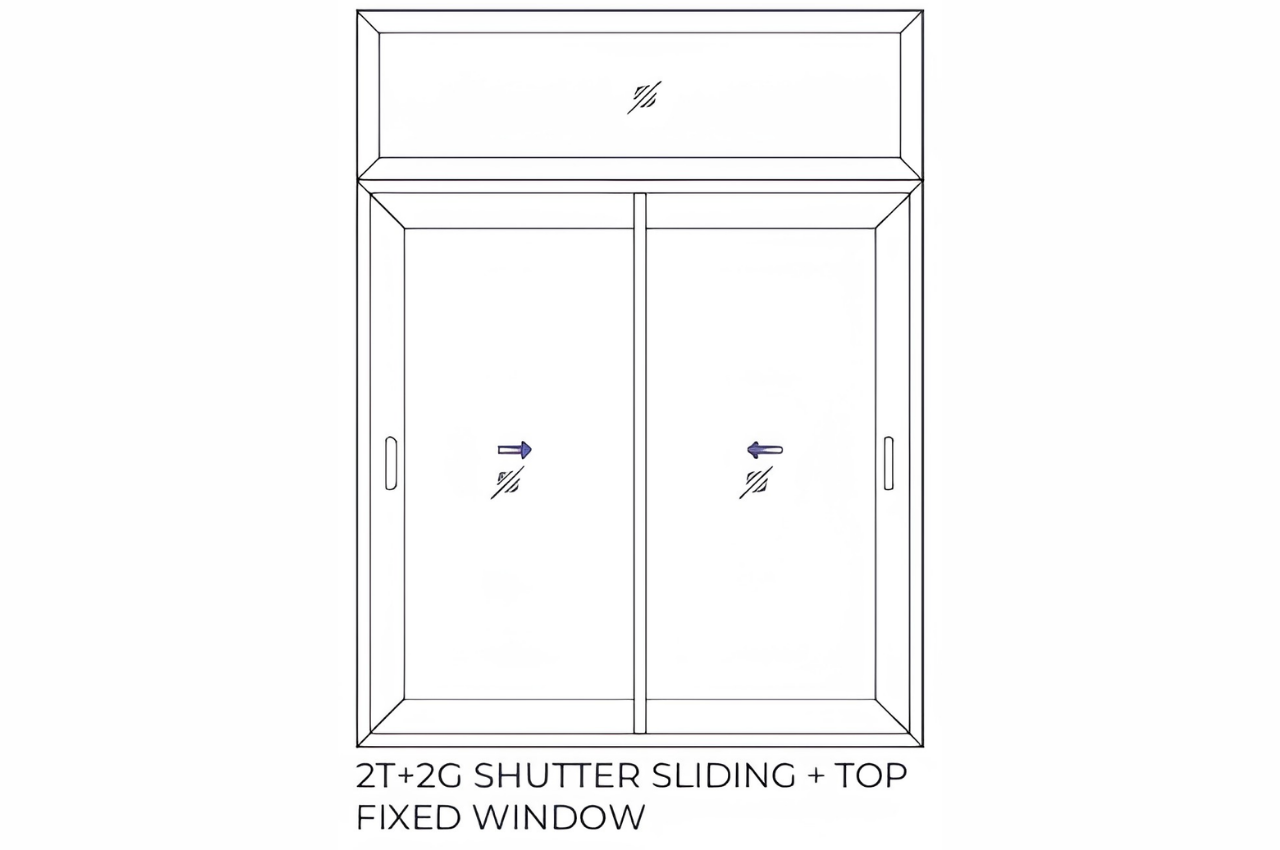

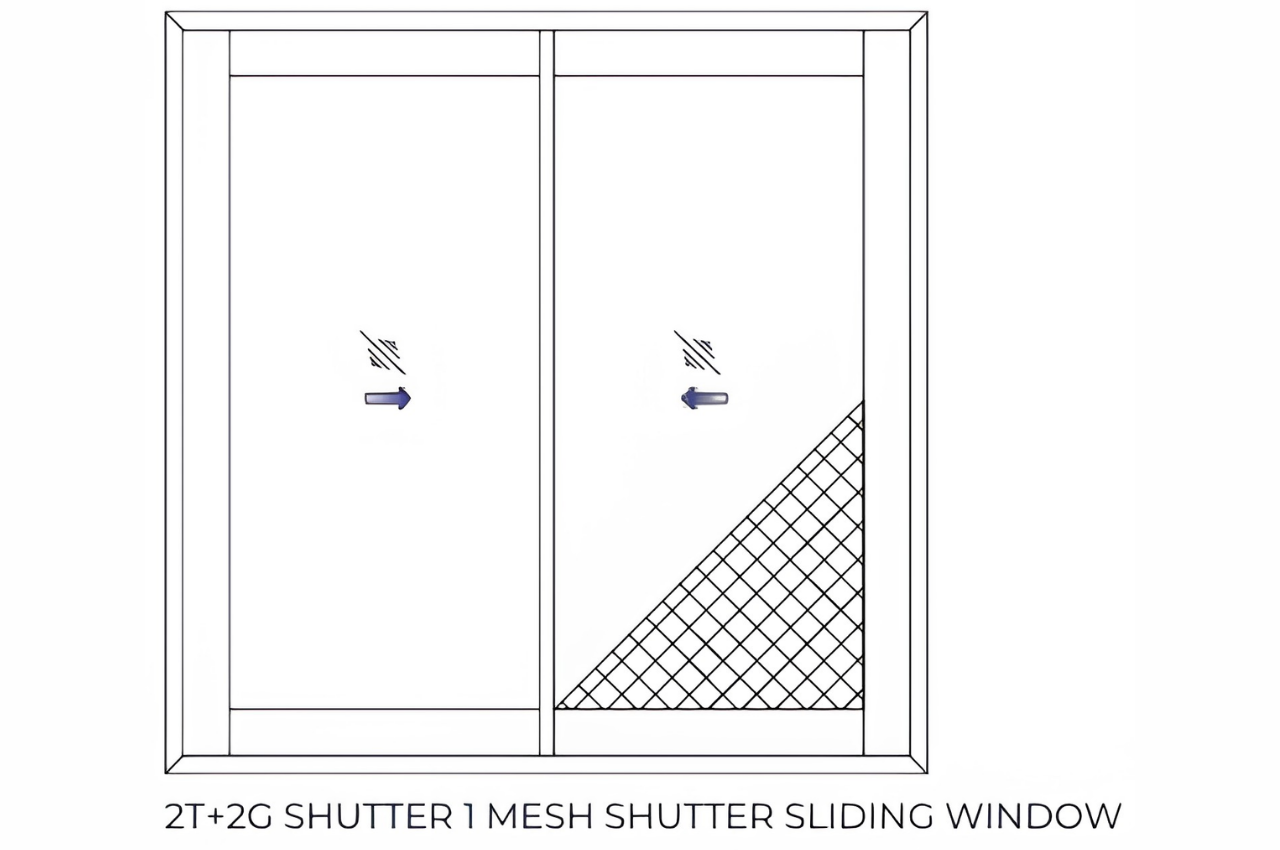

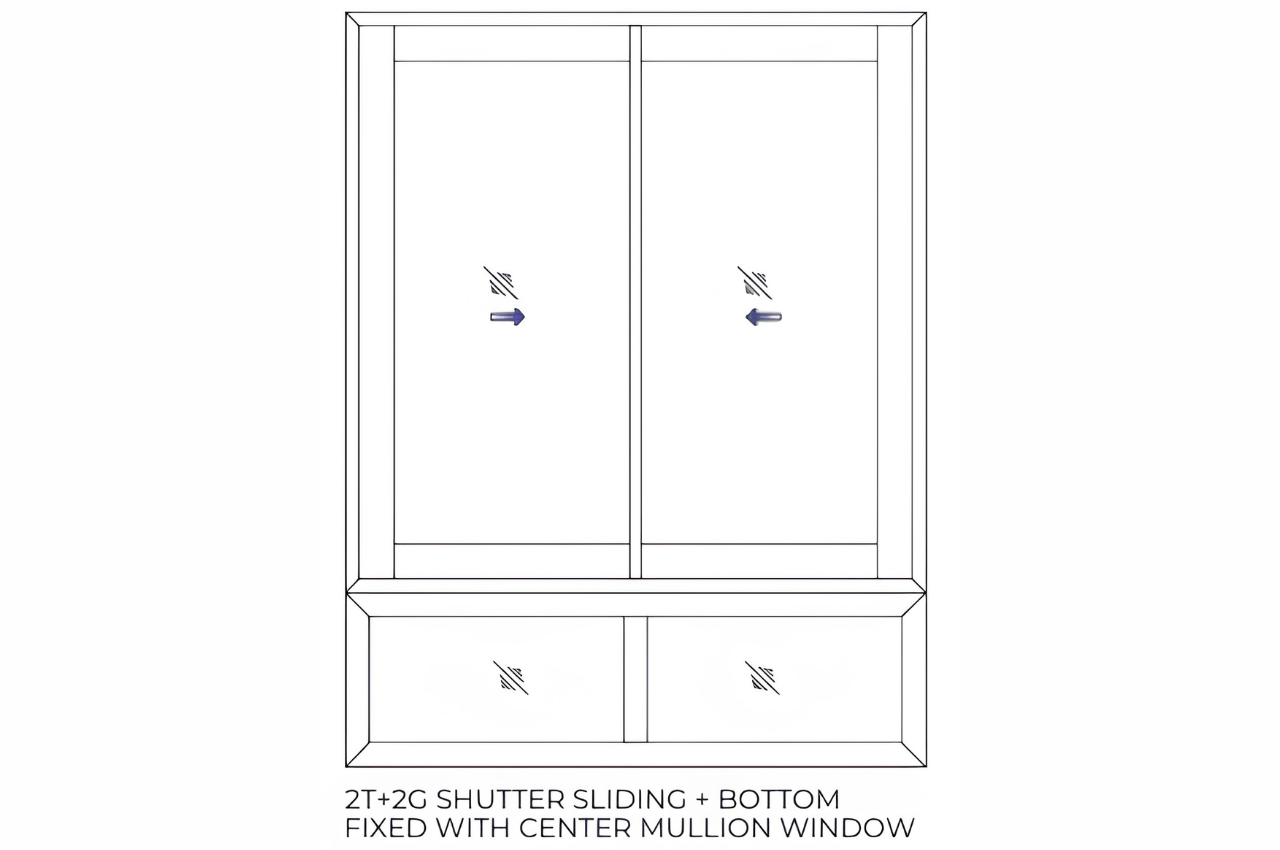

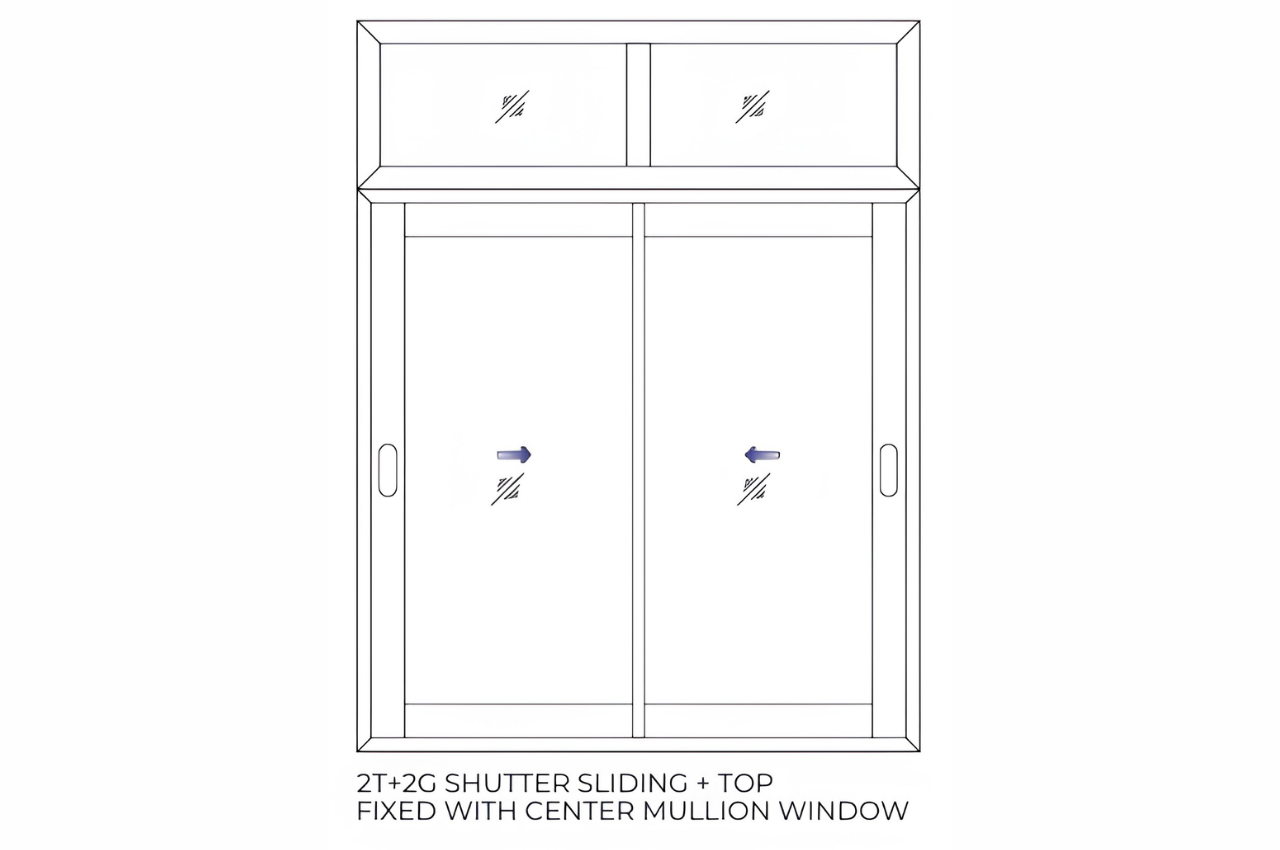

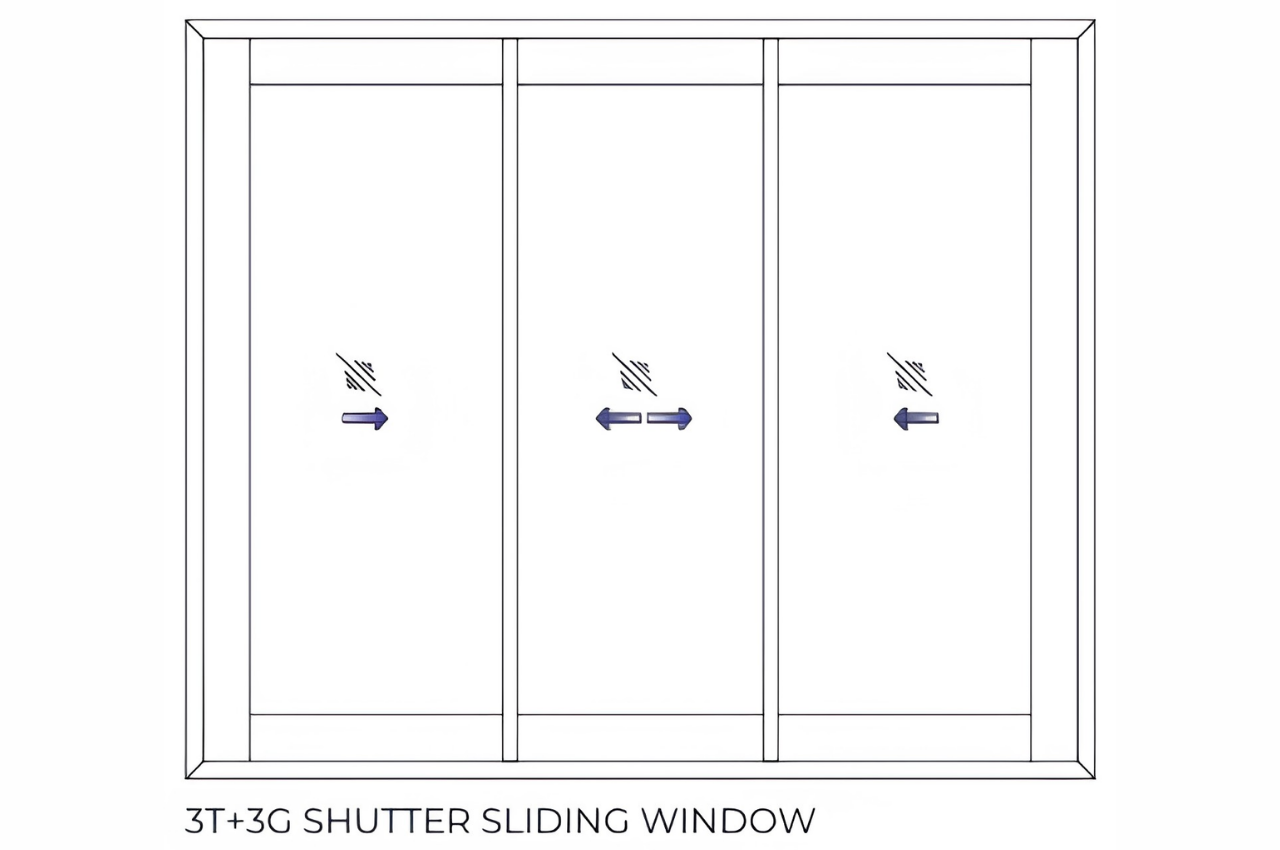

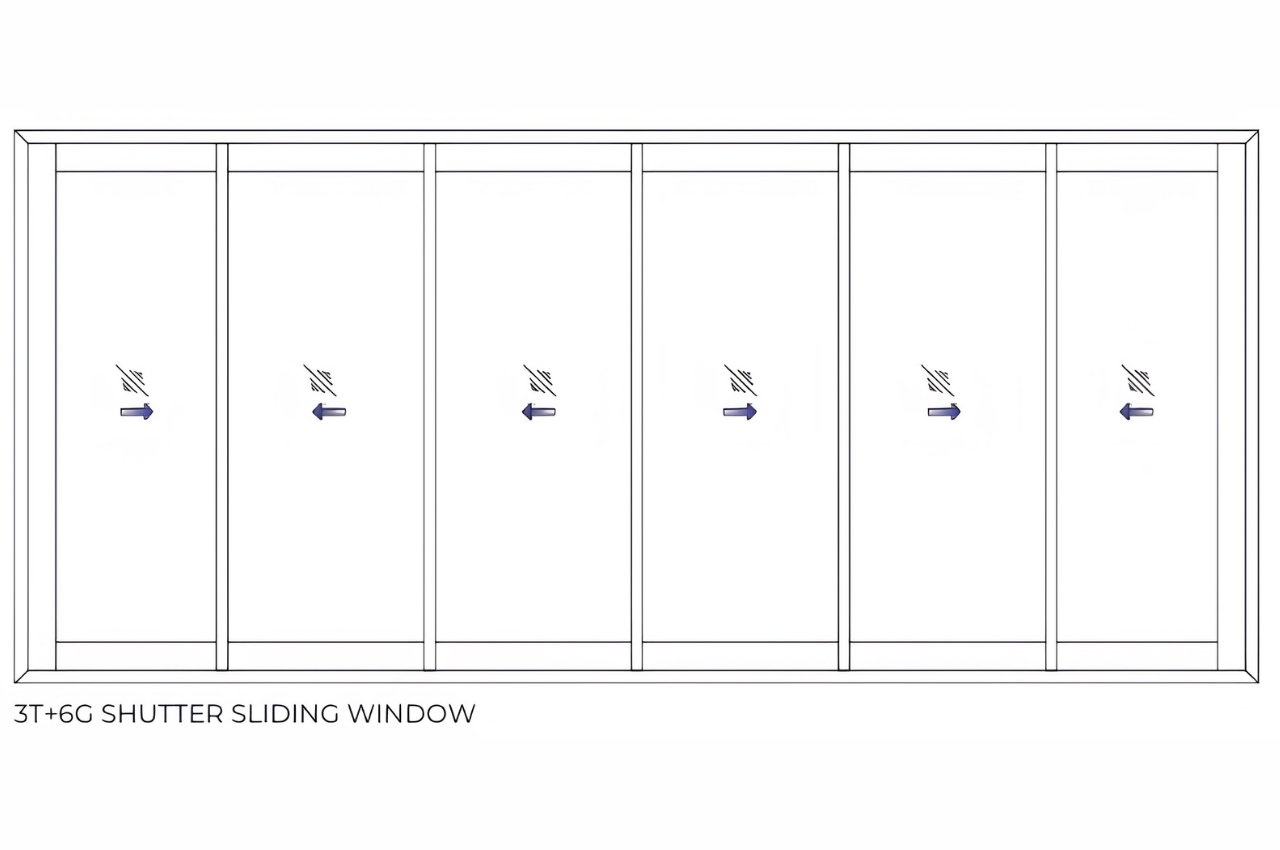

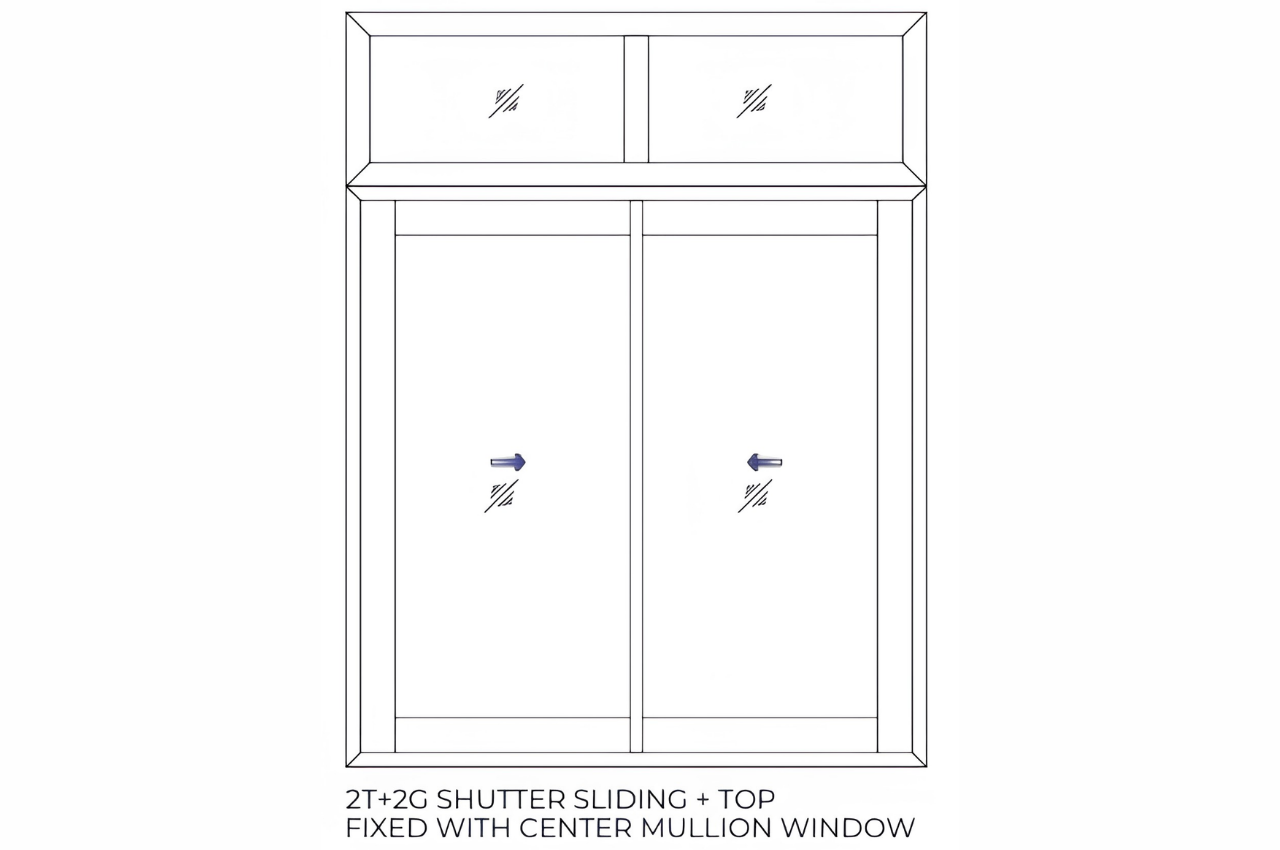

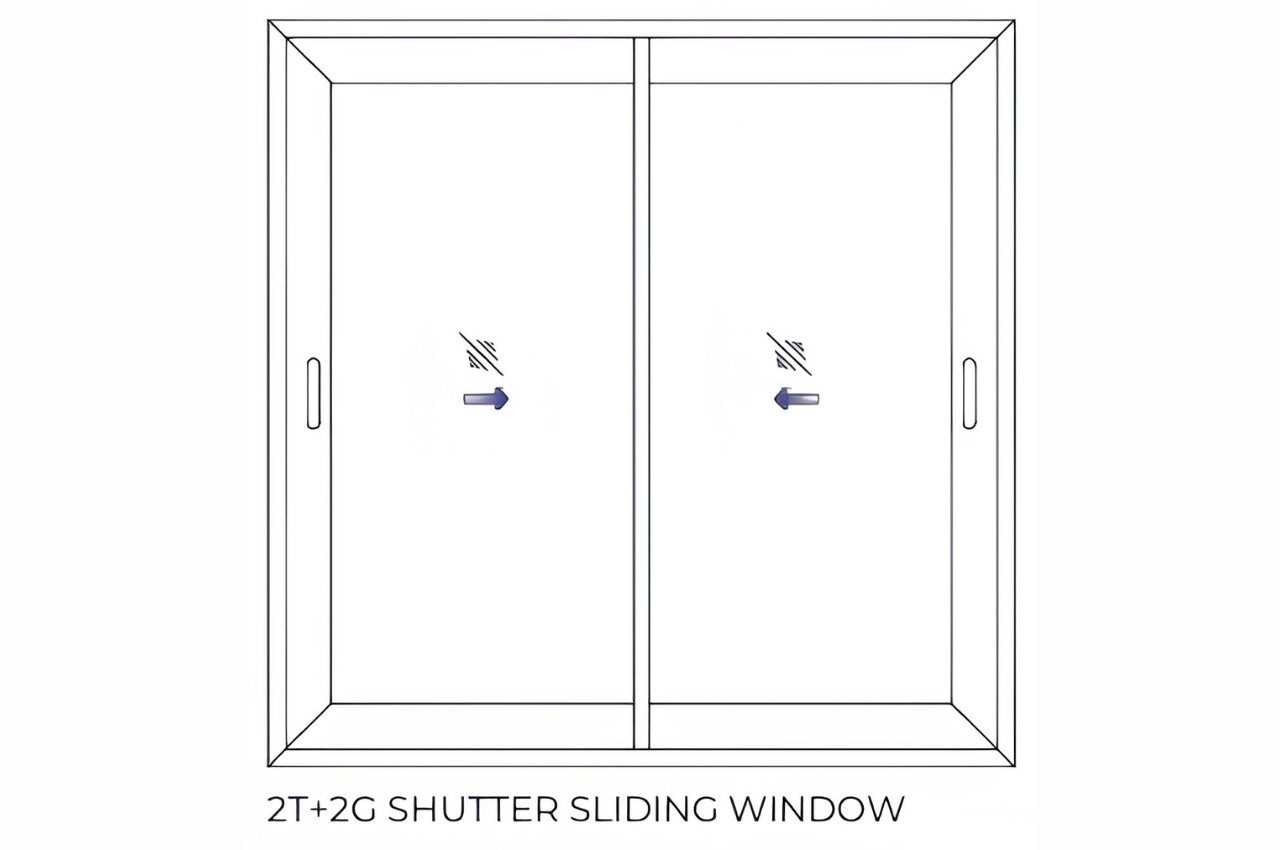

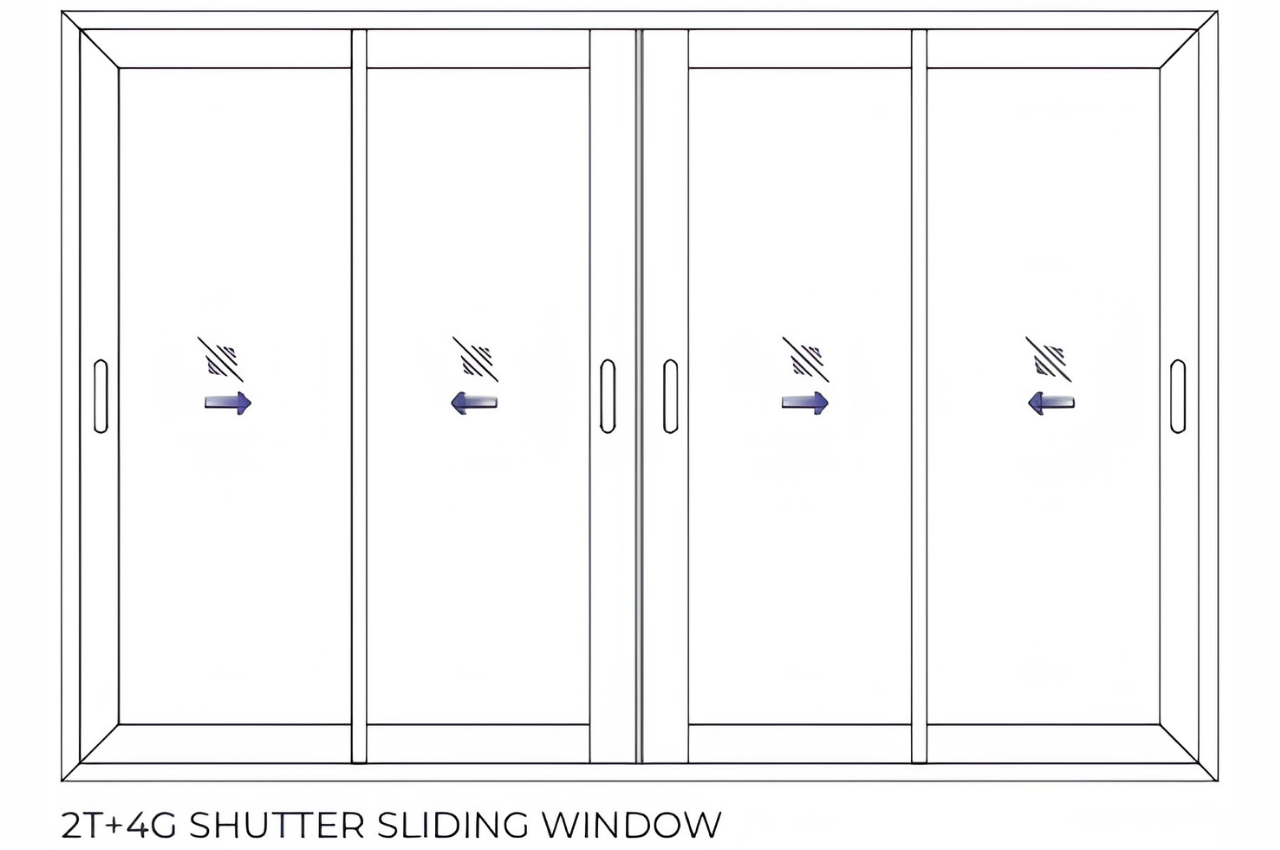

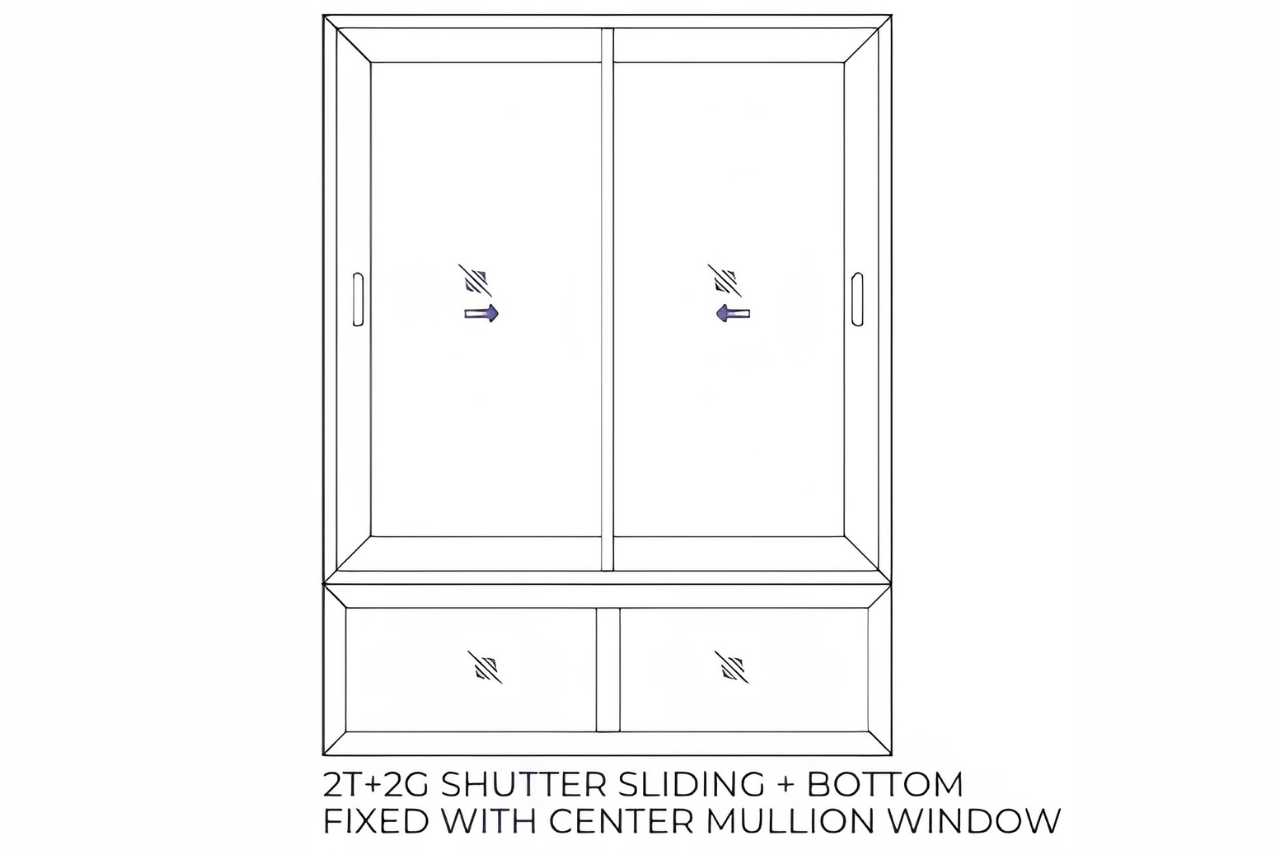

Popular Typologies

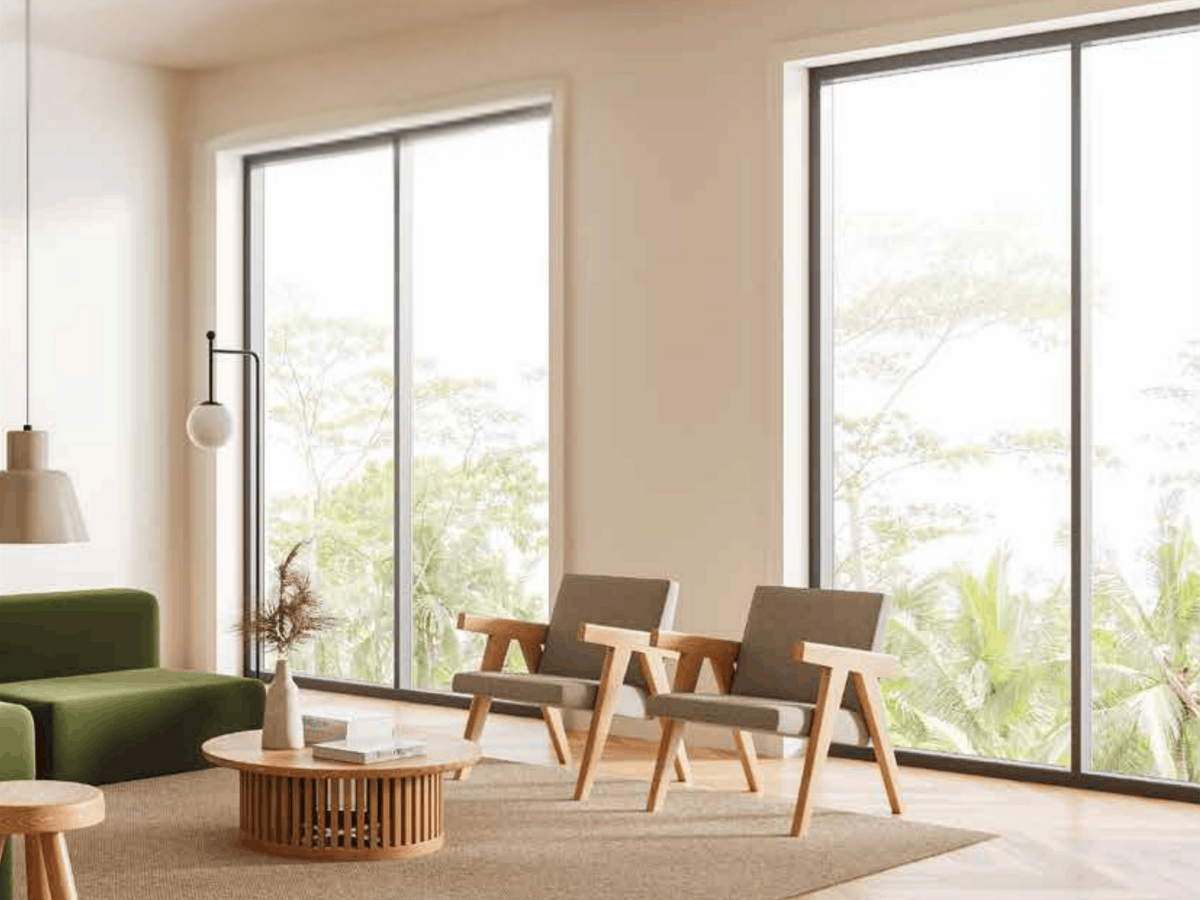

TOT-SD NEX GEN PLUS
Sliding series

Product specifications

  • Max sash height (mm): 3000
  • Max sash width (mm): 1500
  • Glass range (mm): Upto 24

Performance parameters

  • Wind load: 2.5 kpa
    As per class 4A (BS EN12210 : 2000)
  • Air tightness: 450 Pa
    As per class 2 (BS EN12207 : 2000)
  • Water tightness: 300 Pa
    As per class 4A (BS EN12207 : 2000)

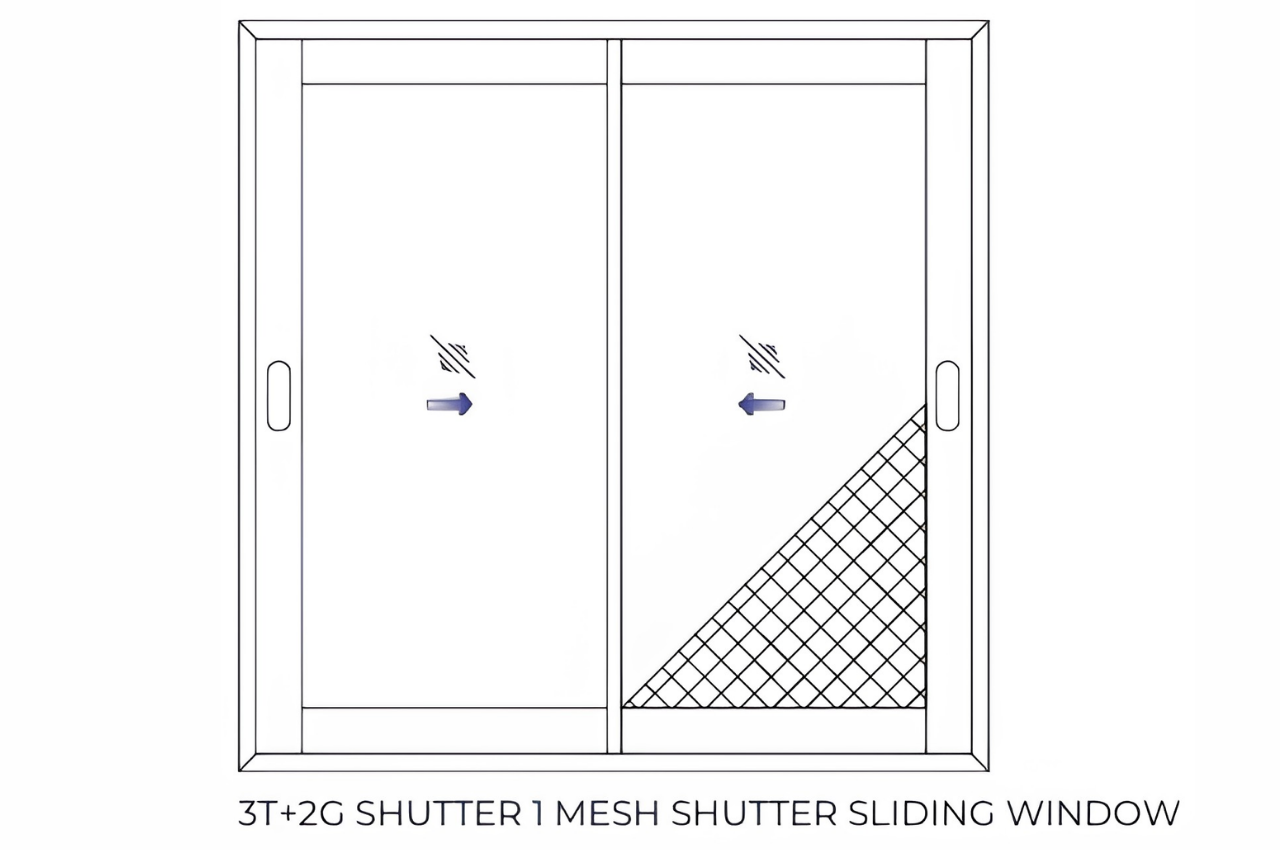

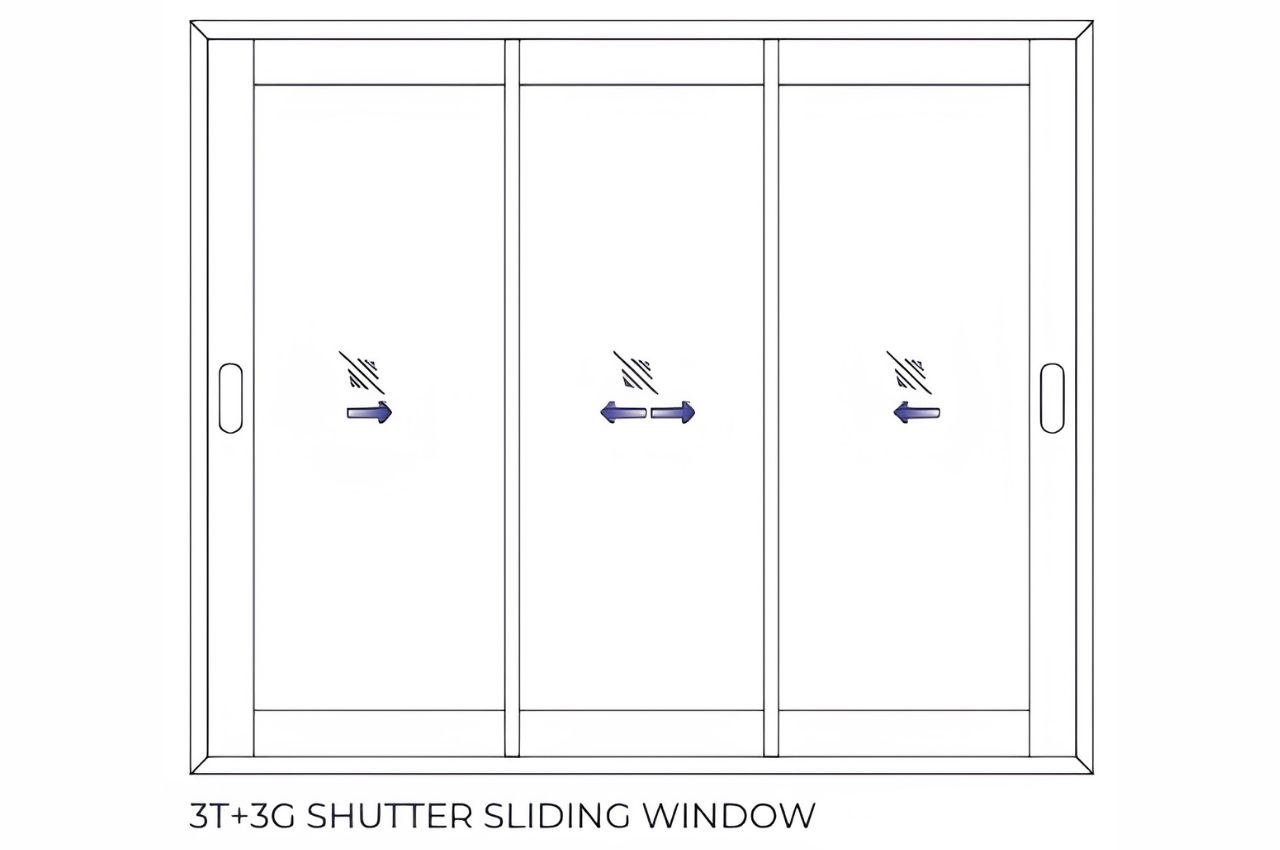

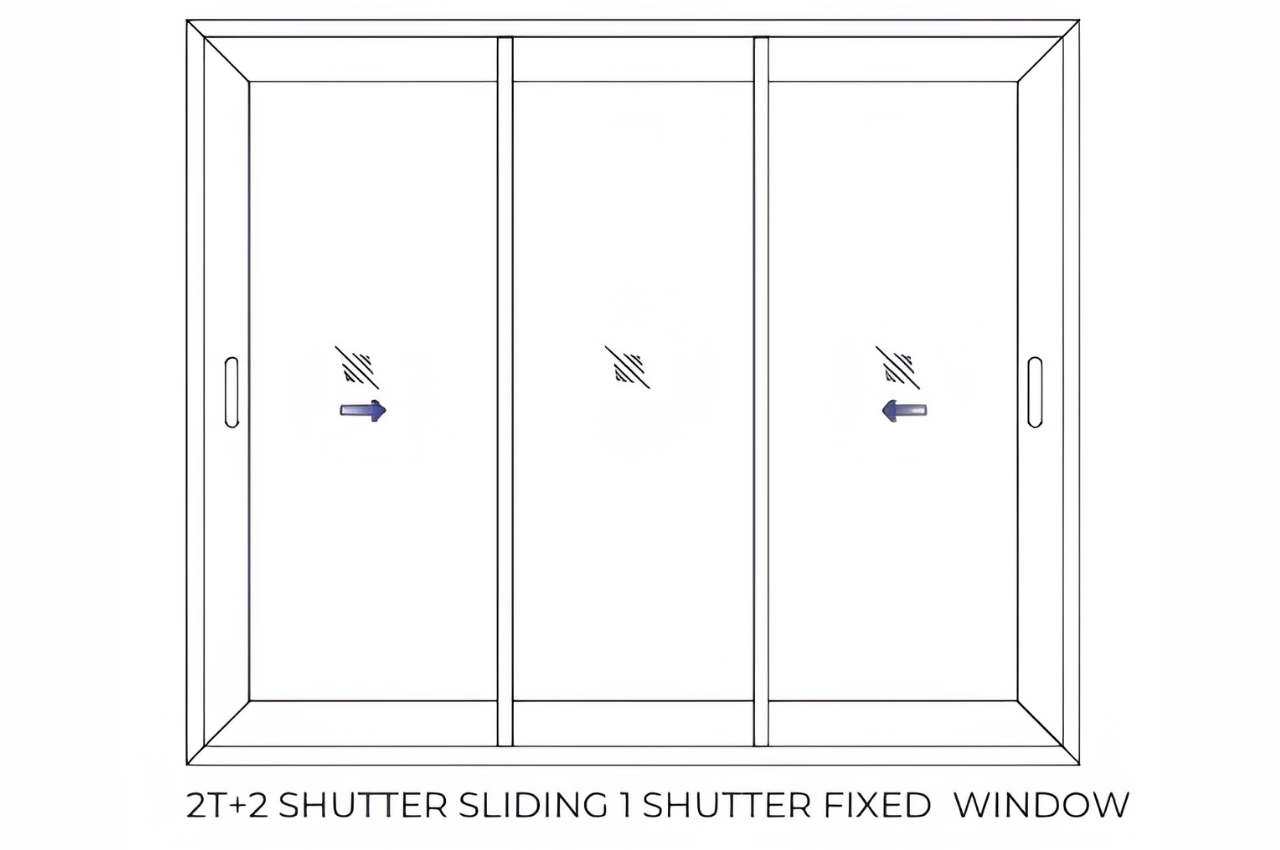

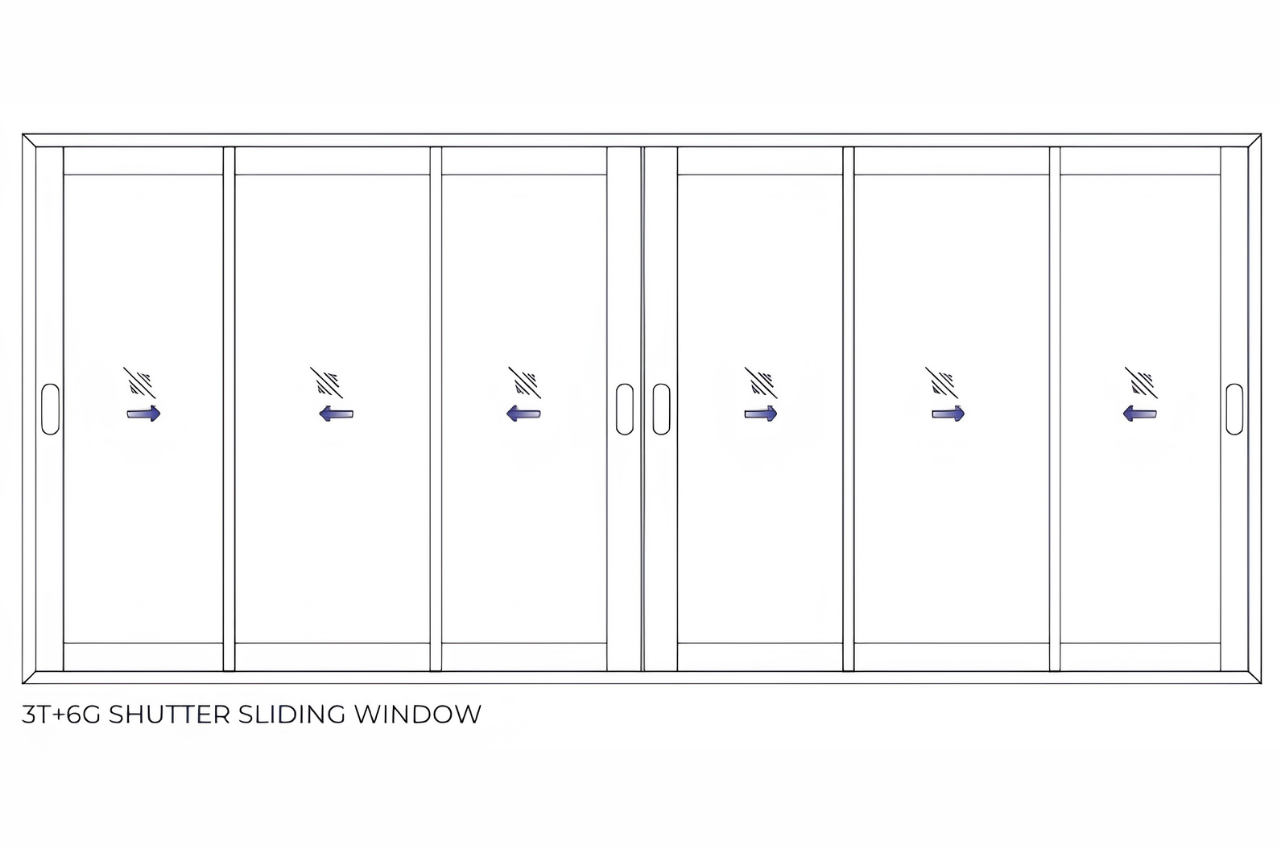

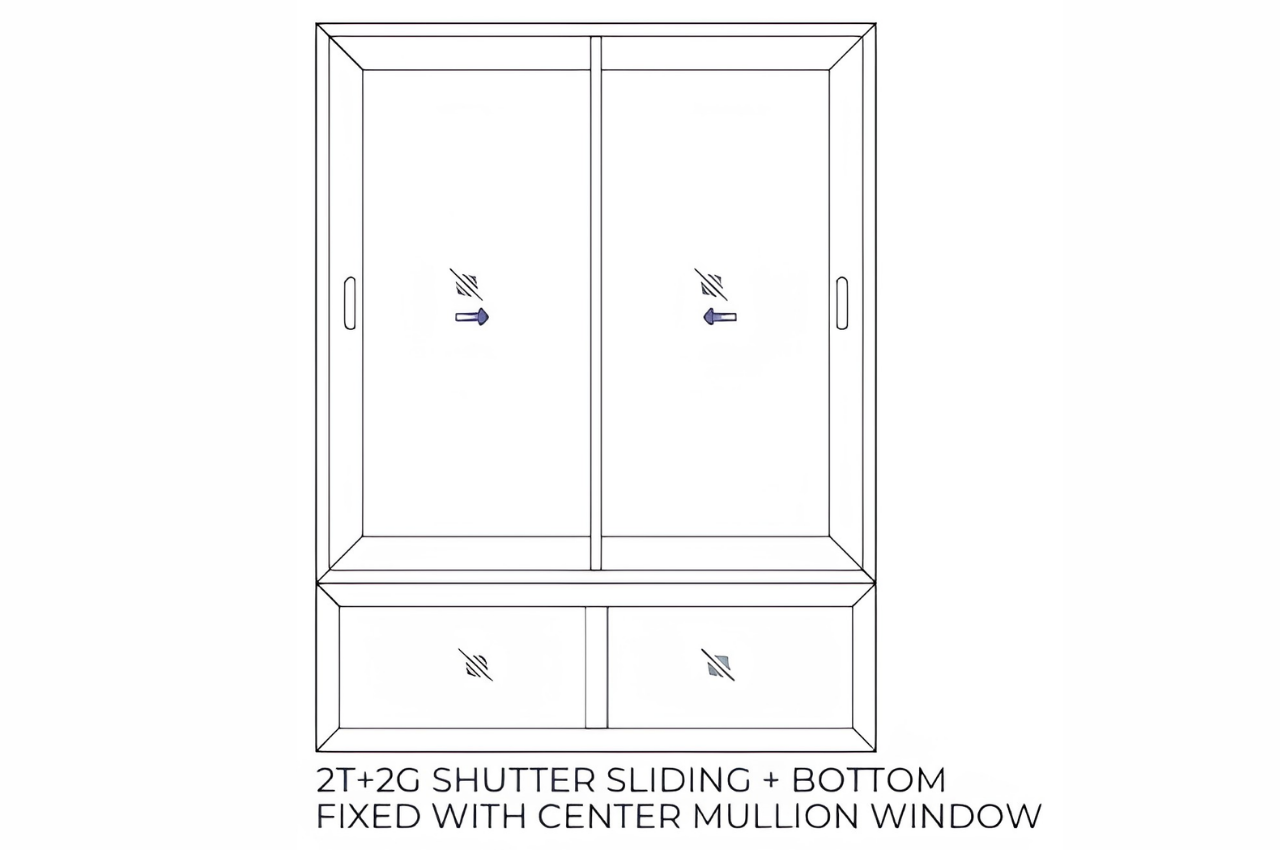

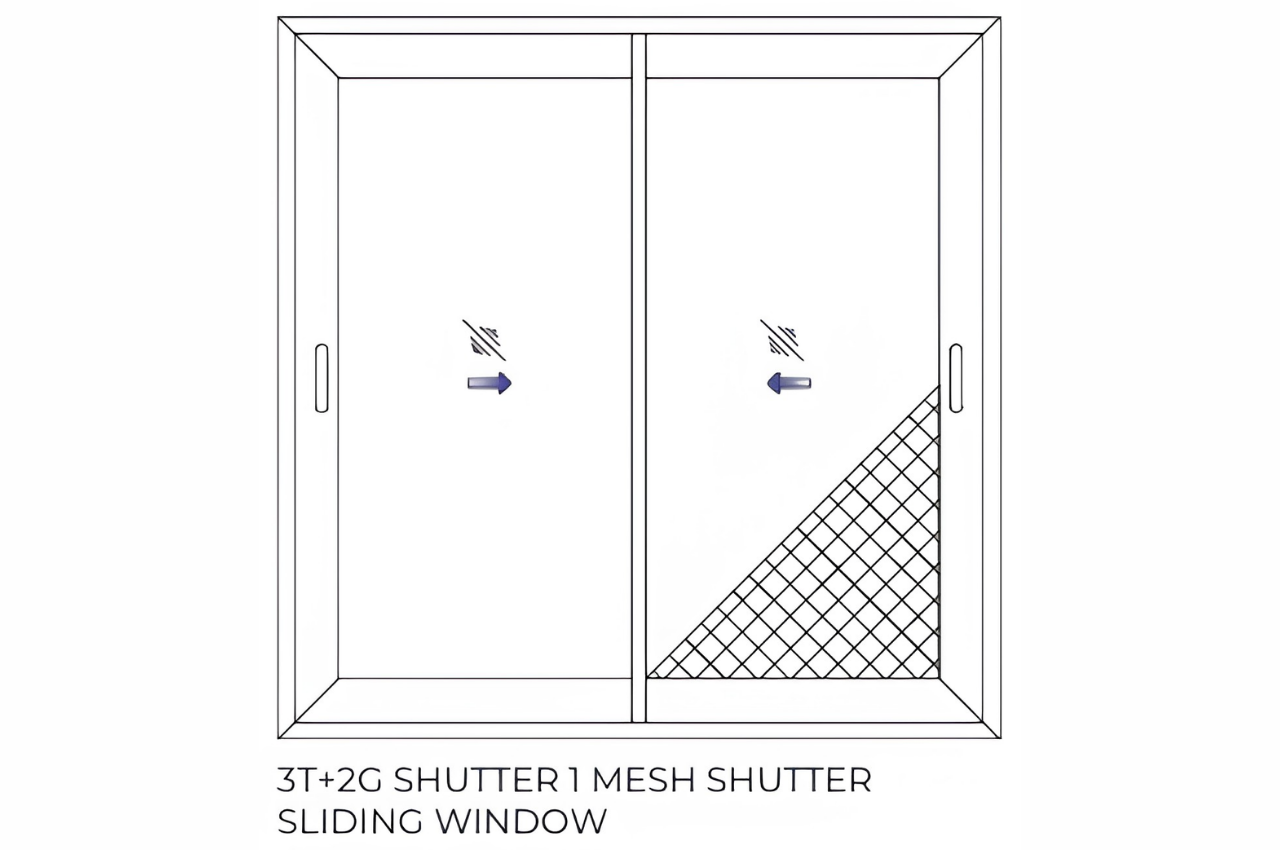

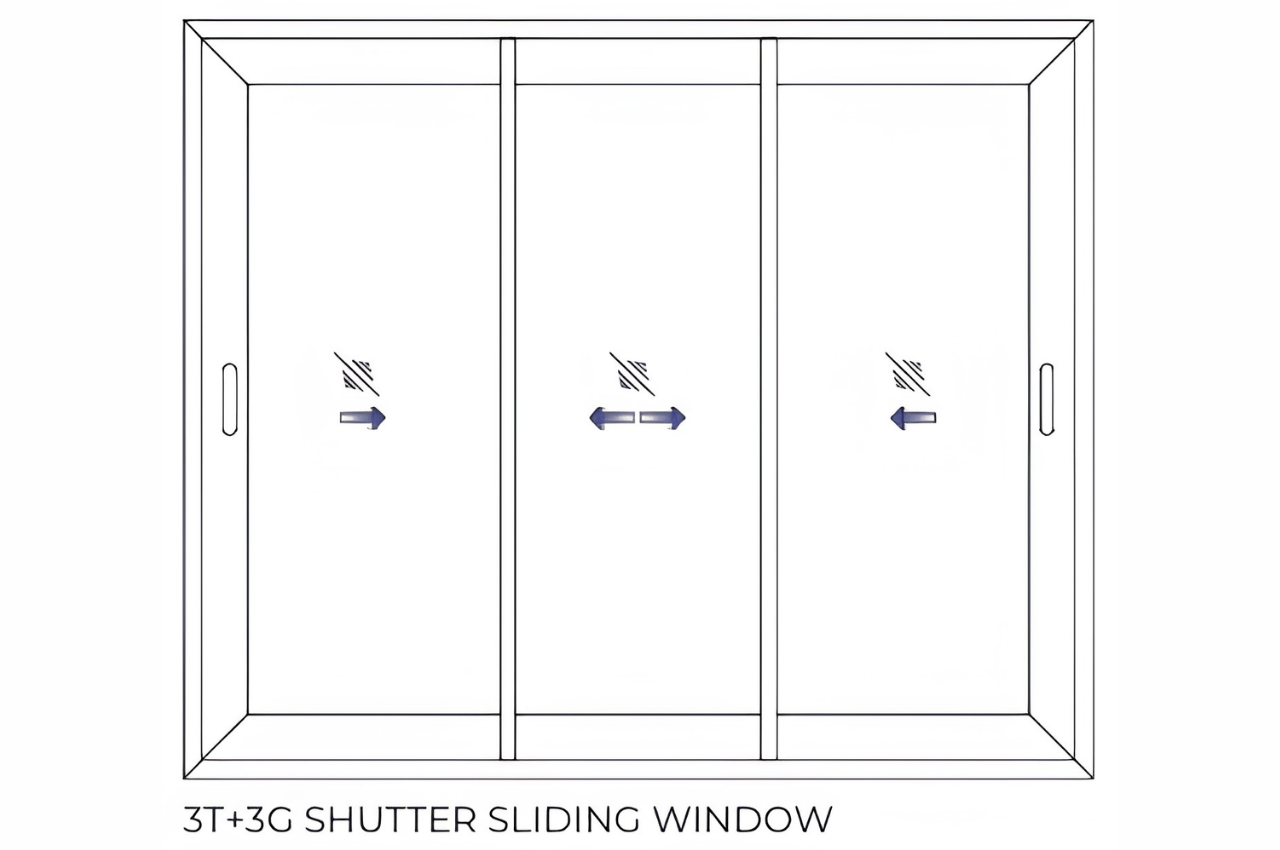

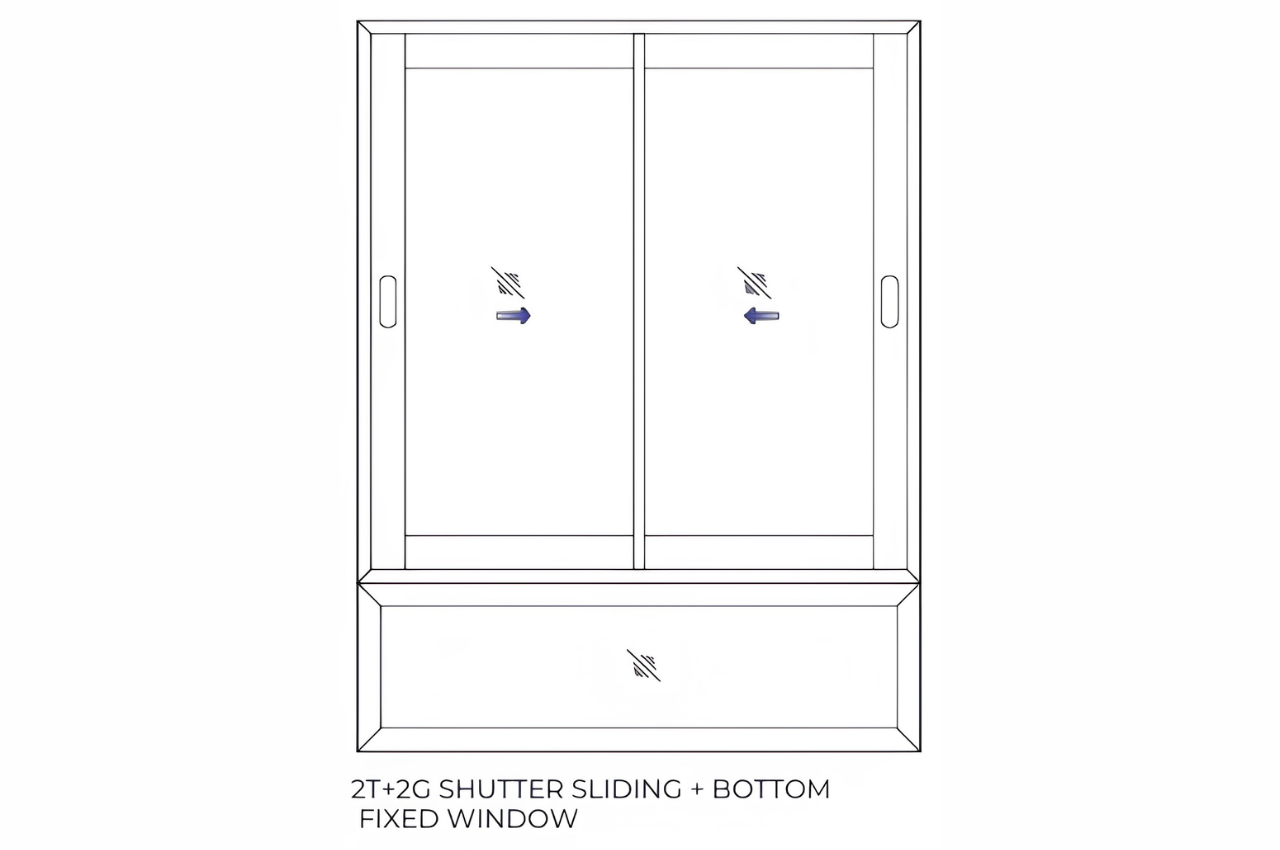

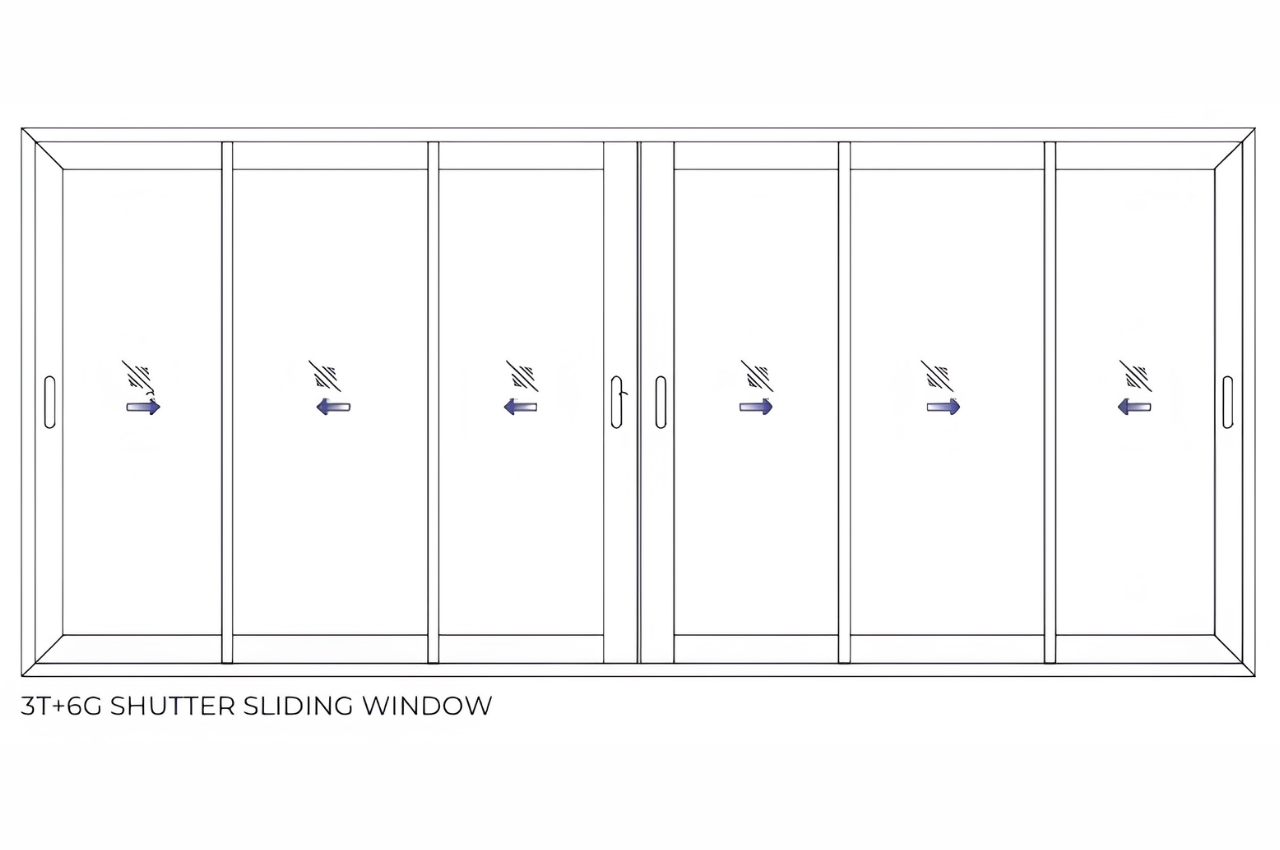

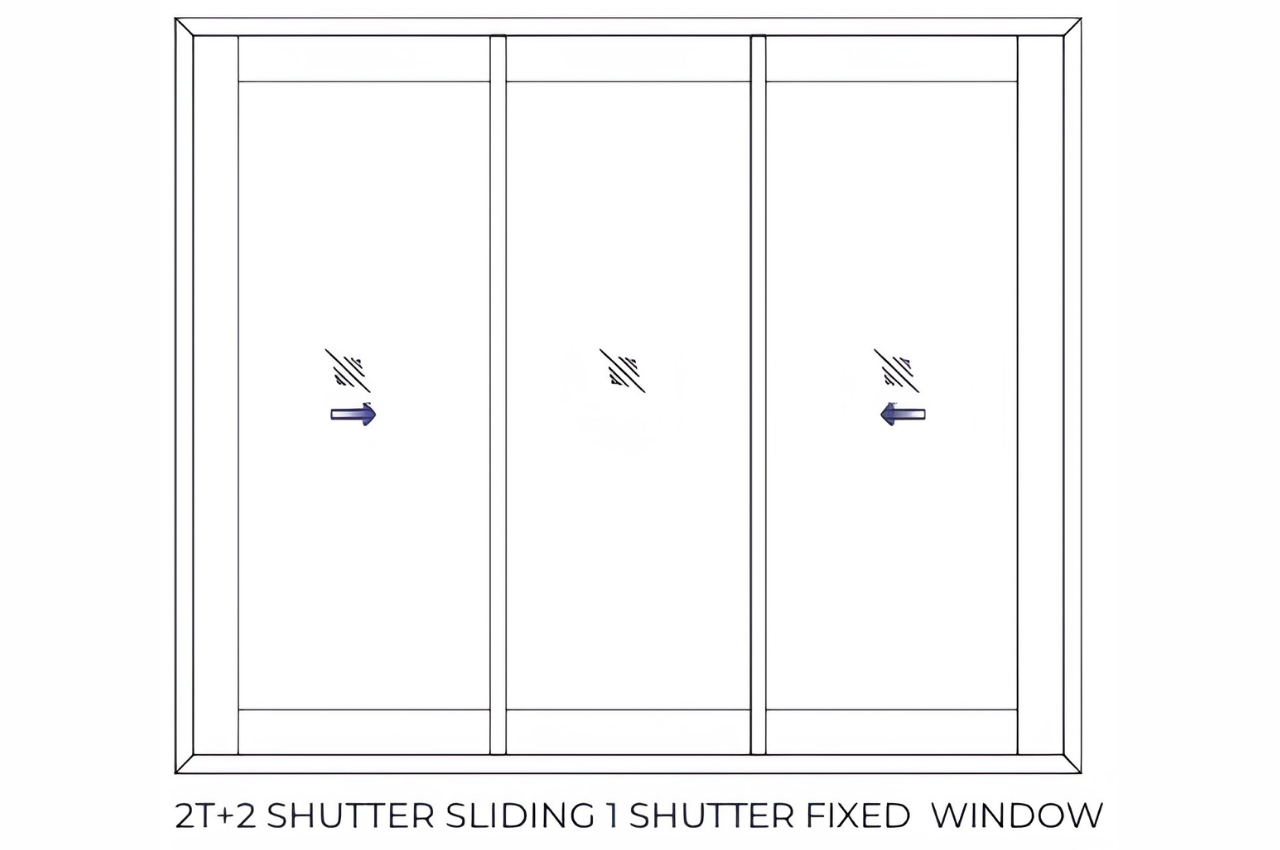

Popular Typologies

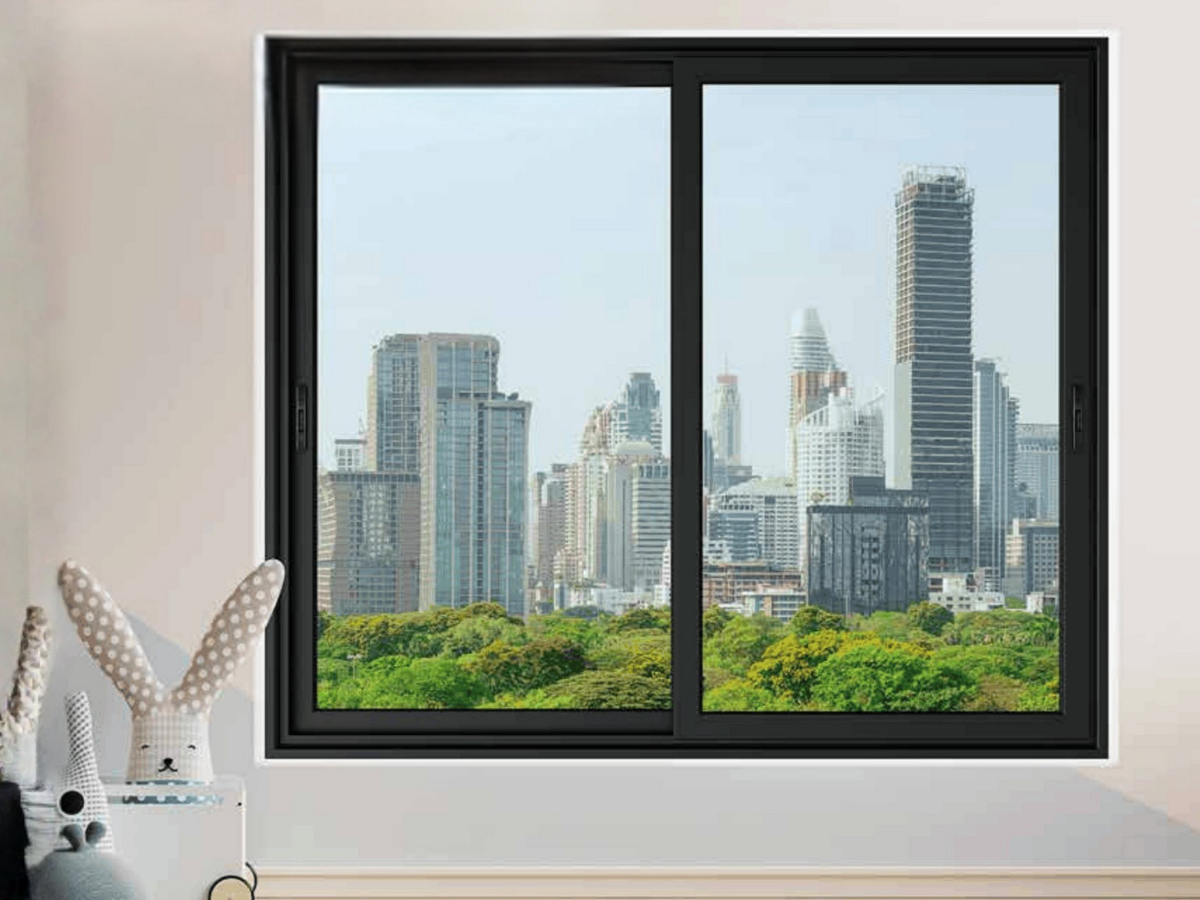

TOT-SD LITE
Sliding series

Product specifications

  • Max sash height (mm): 1500
  • Max sash width (mm): 800
  • Glass range (mm): 5 – 6

Performance parameters

  • Wind load: 1.6 kpa
    As per class 4A (BS EN12210 : 2000)
  • Air tightness: 150 Pa
    As per class 2 (BS EN12207 : 2000)
  • Water tightness: 150 Pa
    As per class 4A (BS EN12207 : 2000)

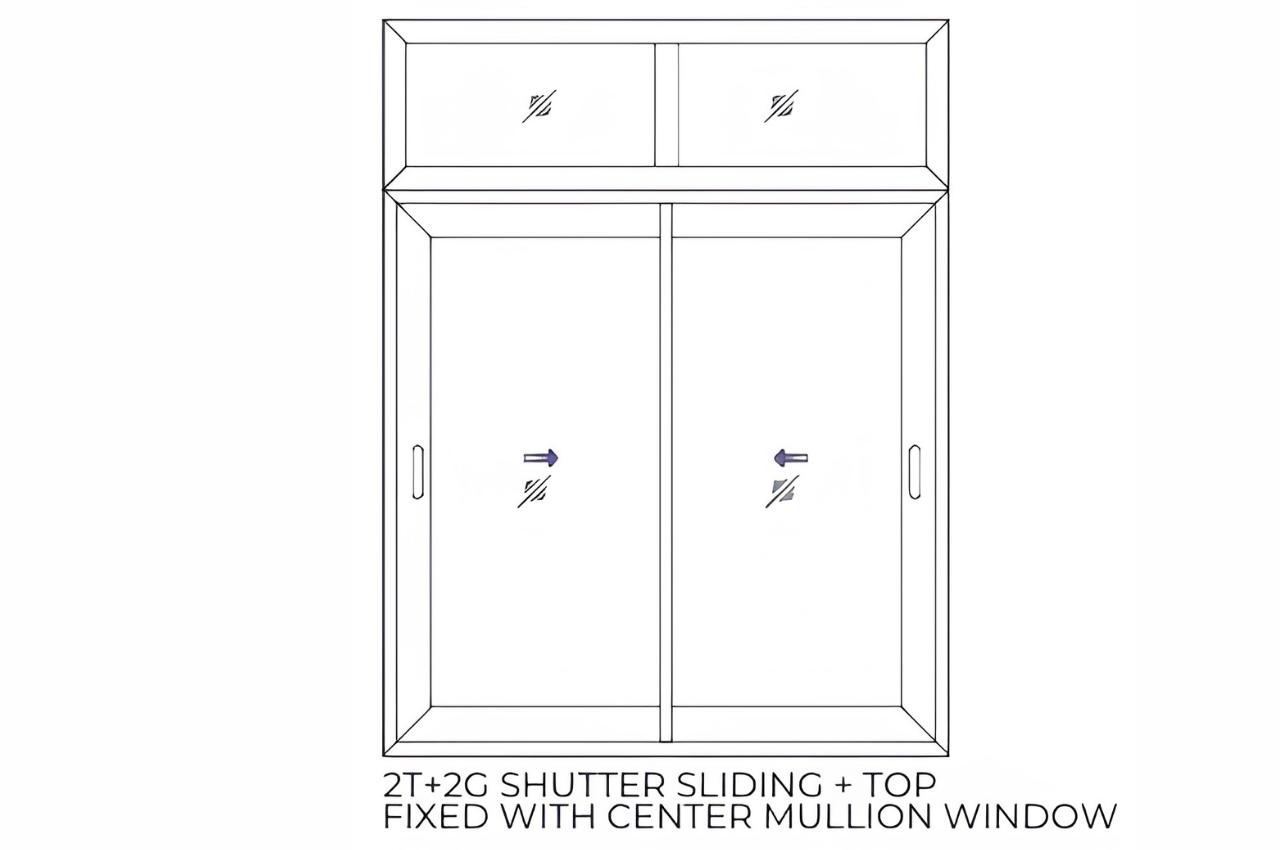

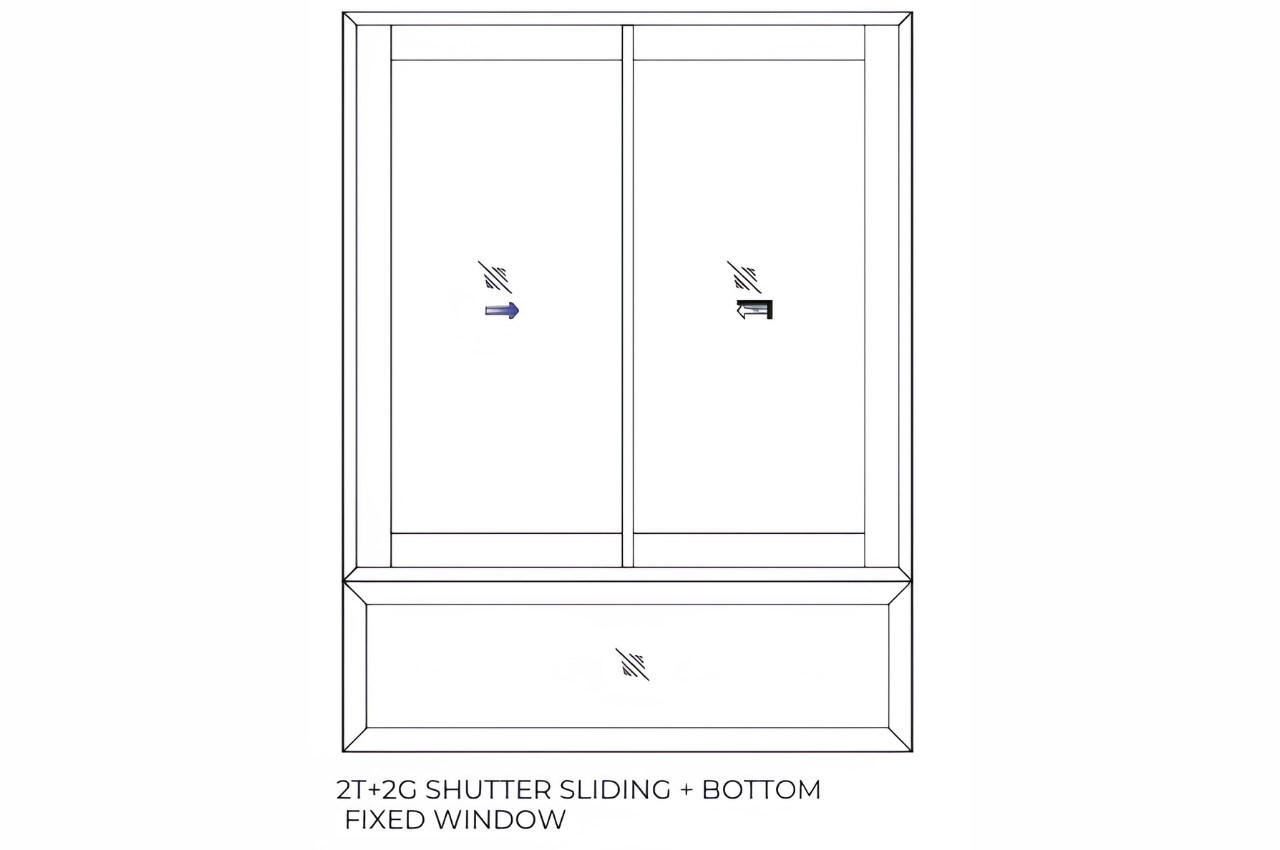

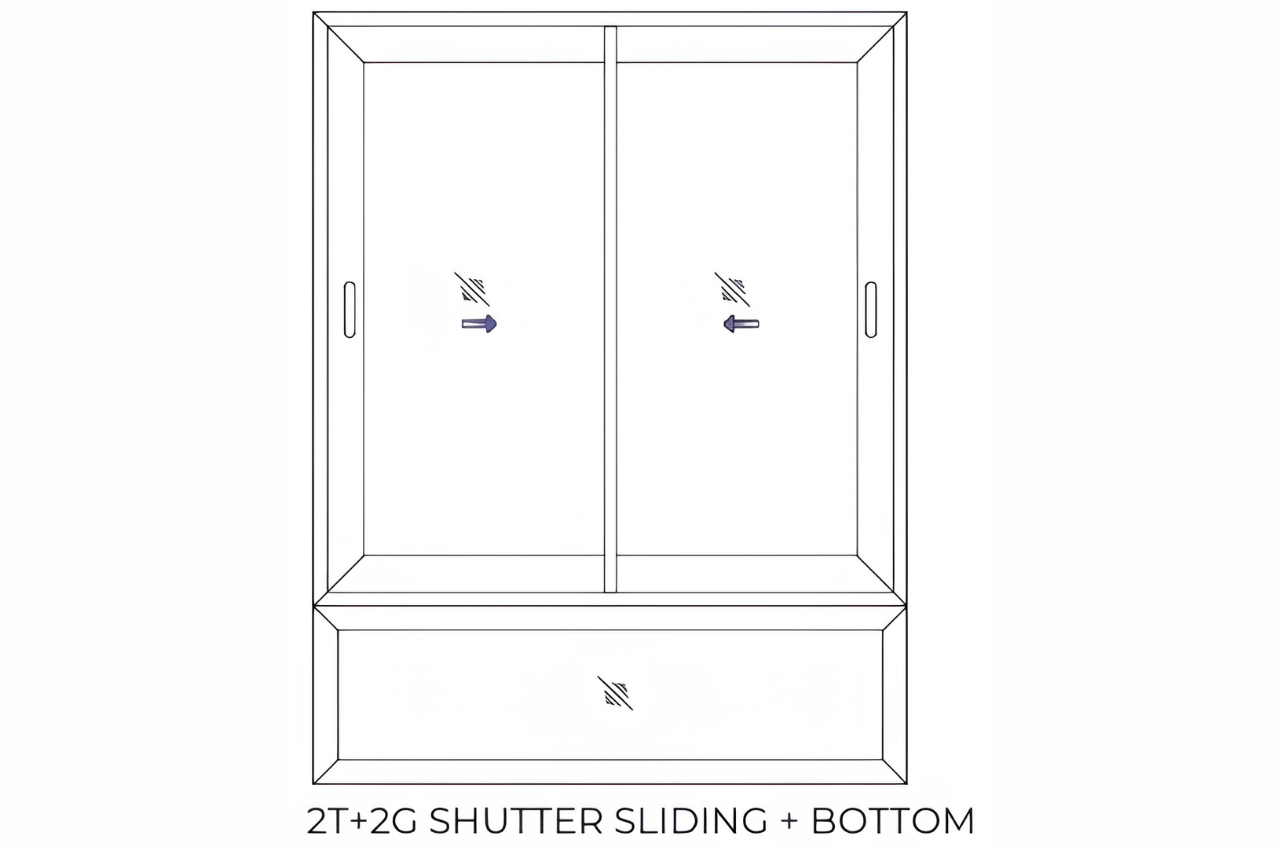

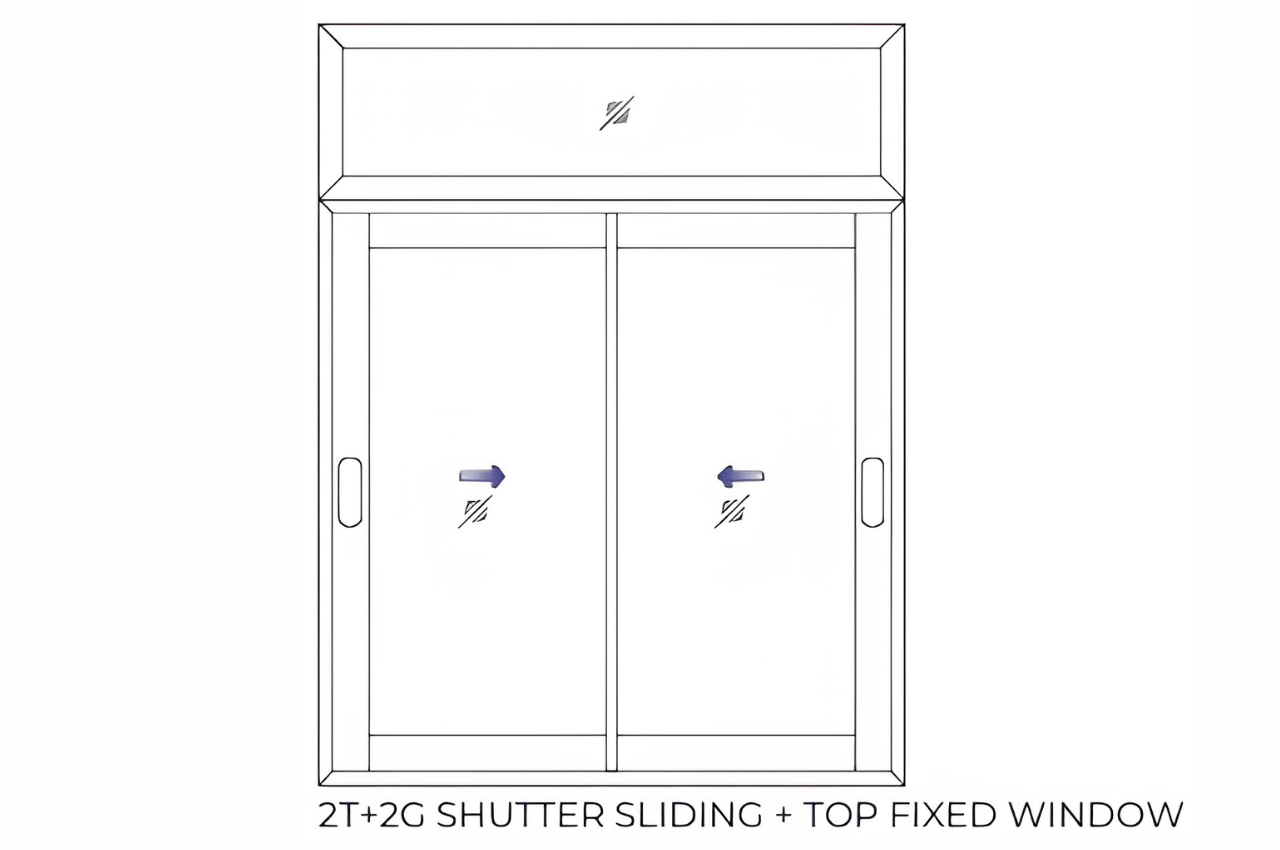

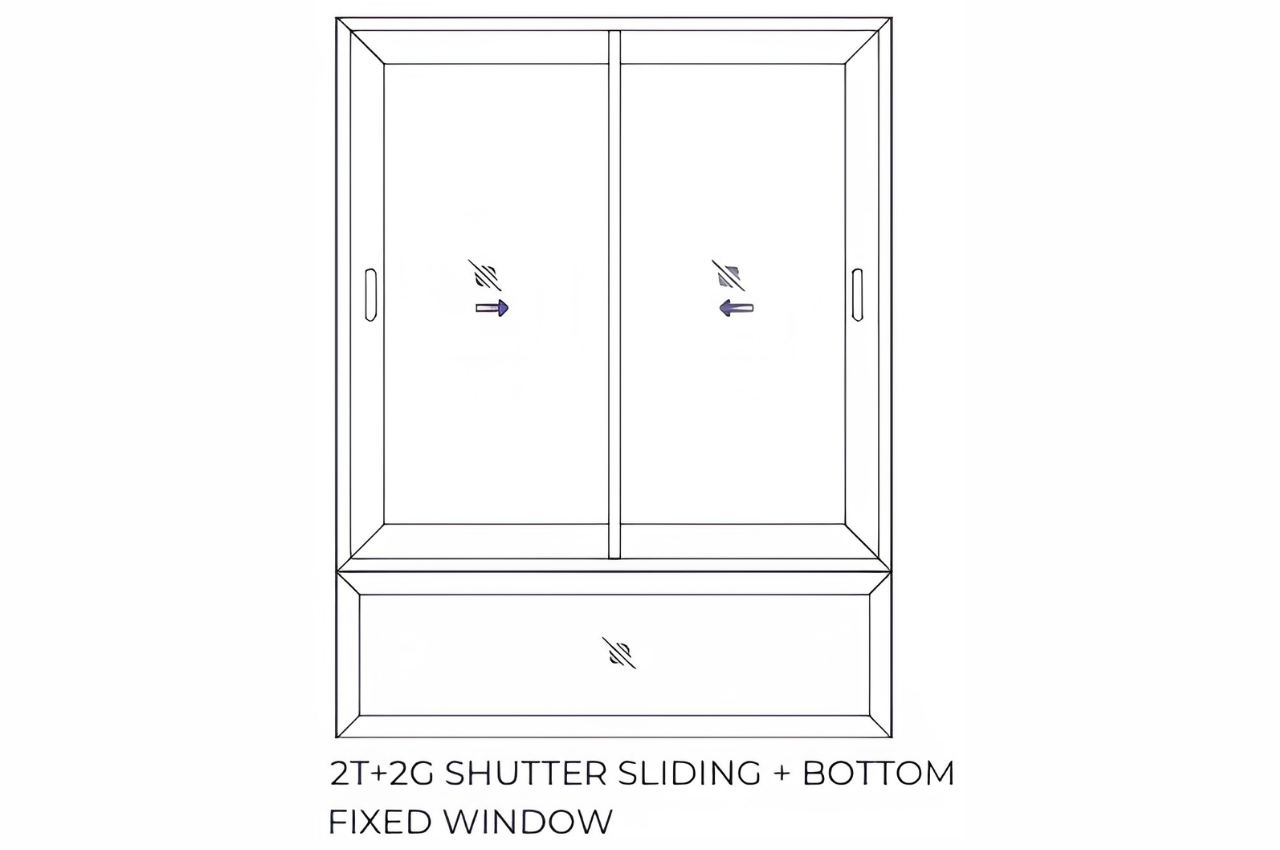

Popular Typologies

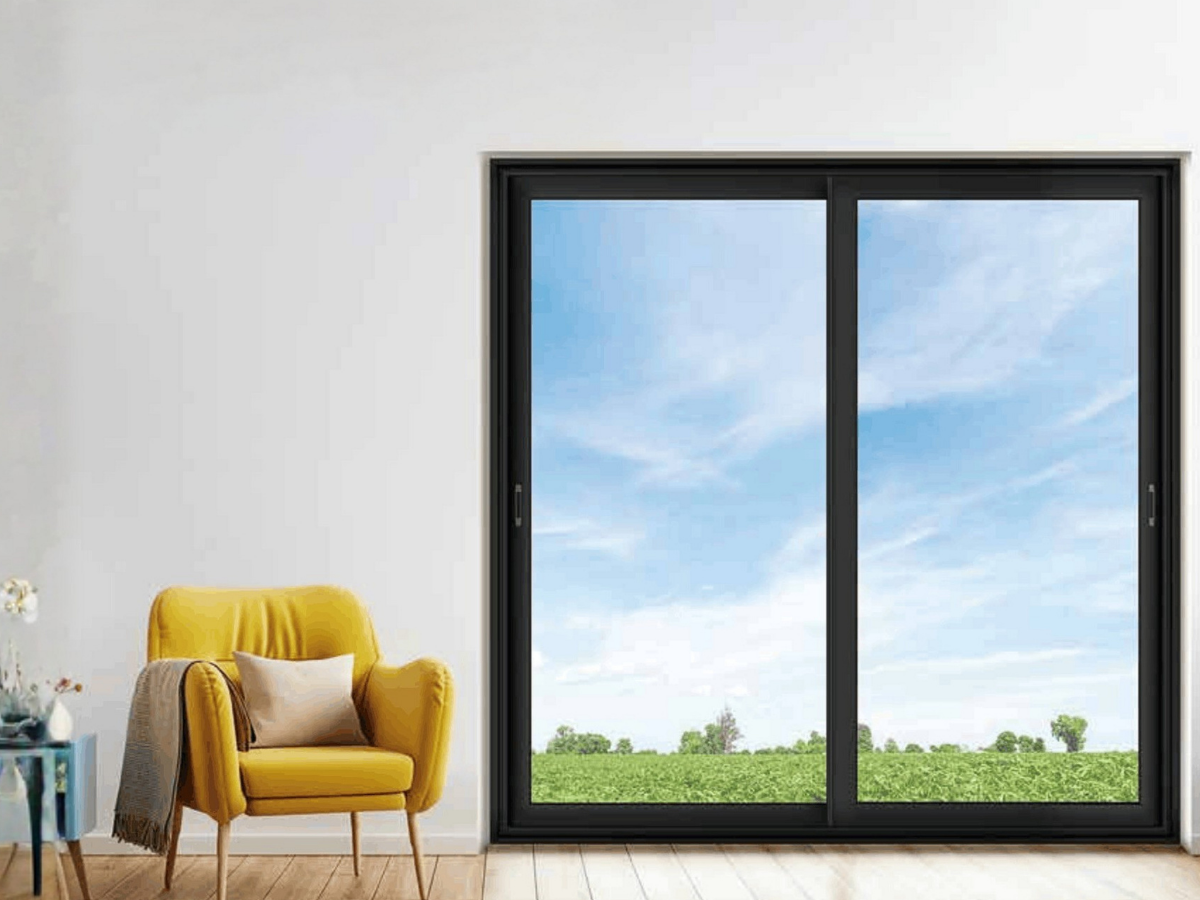

TOT-SD PLUS
Sliding series

Product specifications

  • Max sash height (mm): 2400
  • Max sash width (mm): 1200
  • Glass range (mm): 5 – 20

Performance parameters

  • Wind load: 2 kpa
    As per class C5 (BS EN12210 : 2000)
  • Air tightness: 300 Pa
    As per class 2 (BS EN12207 : 2000)
  • Water tightness: 150 Pa
    As per class 4A (BS EN12207 : 2000)
Popular Typologies

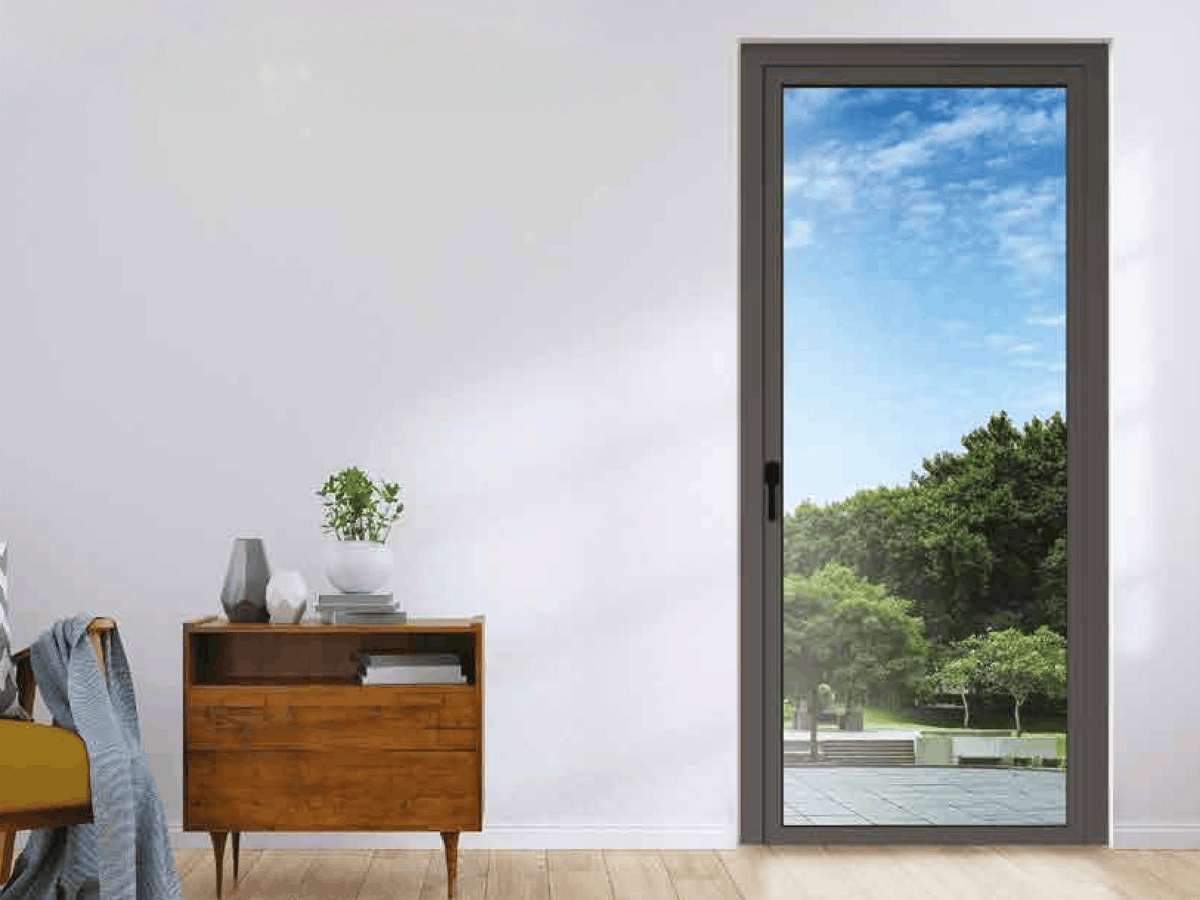

TOT-CS
Casement series

Product specifications

  • Max sash height (mm):
    Door – 2400, Window – 1500
  • Max sash width (mm):
    Door – 900, Window – 750
  • Glass range (mm): 5 – 20

Performance parameters

  • Wind load: 1.6 kpa
    As per class 4C (BS EN12210 : 2000)
  • Air tightness: 150 Pa
    As per class 2 (BS EN12207 : 2000)
  • Water tightness: 150 Pa
    As per class 4A (BS EN12207 : 2000)

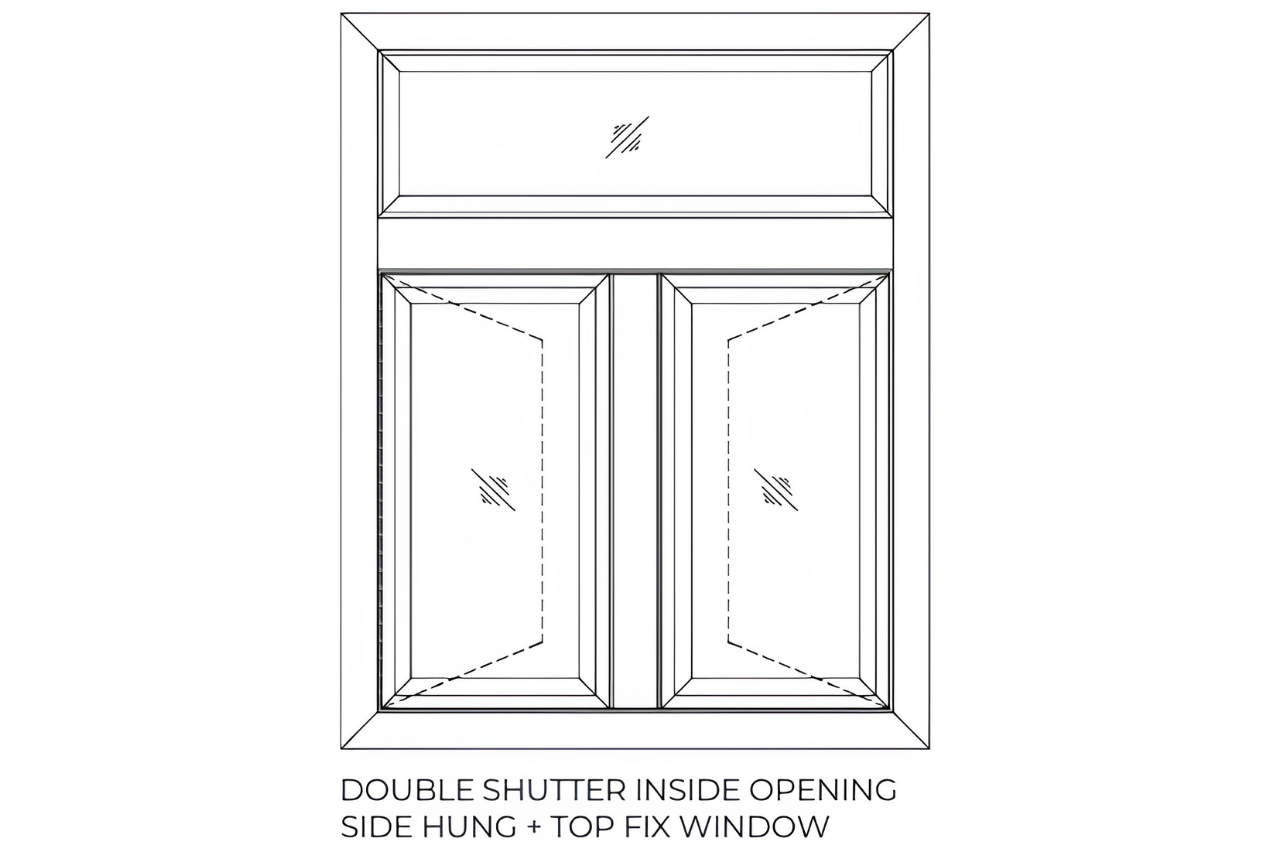

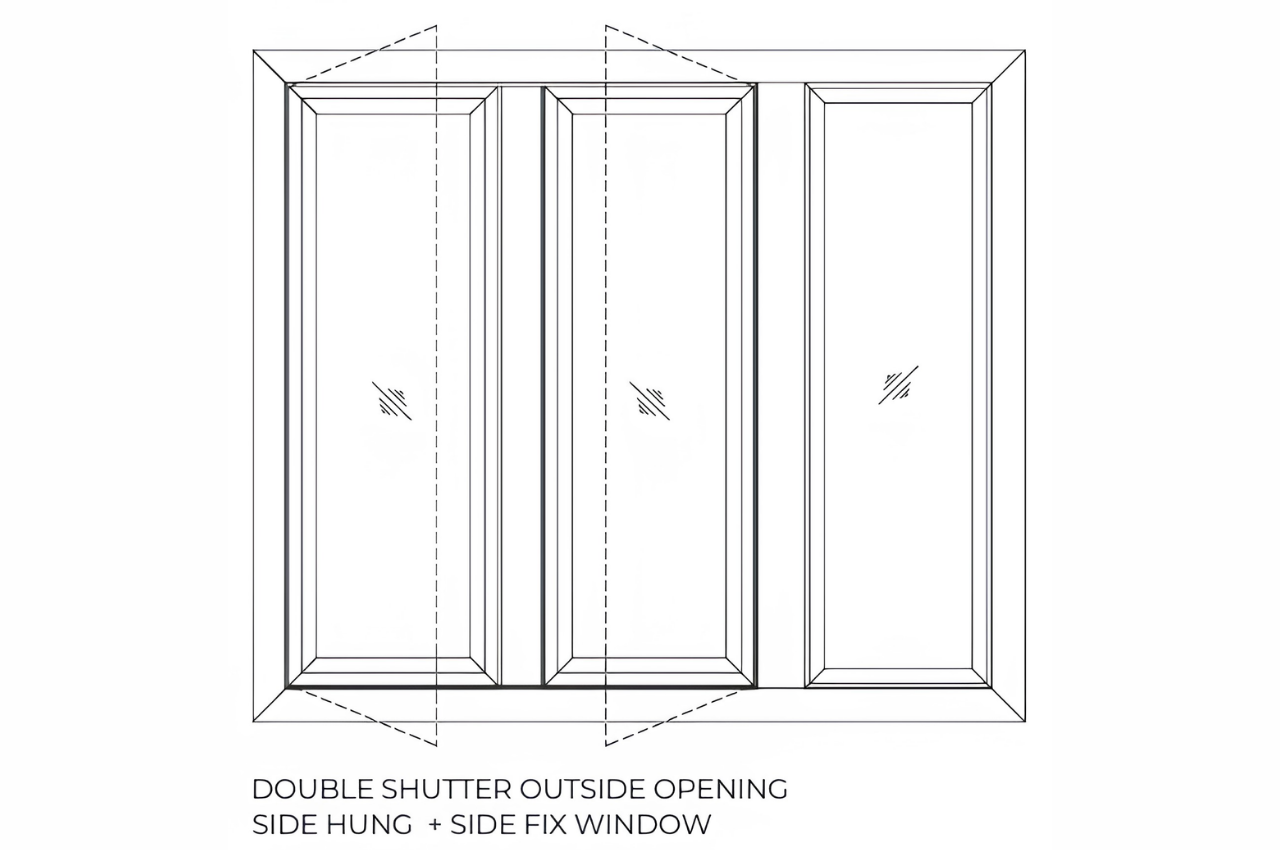

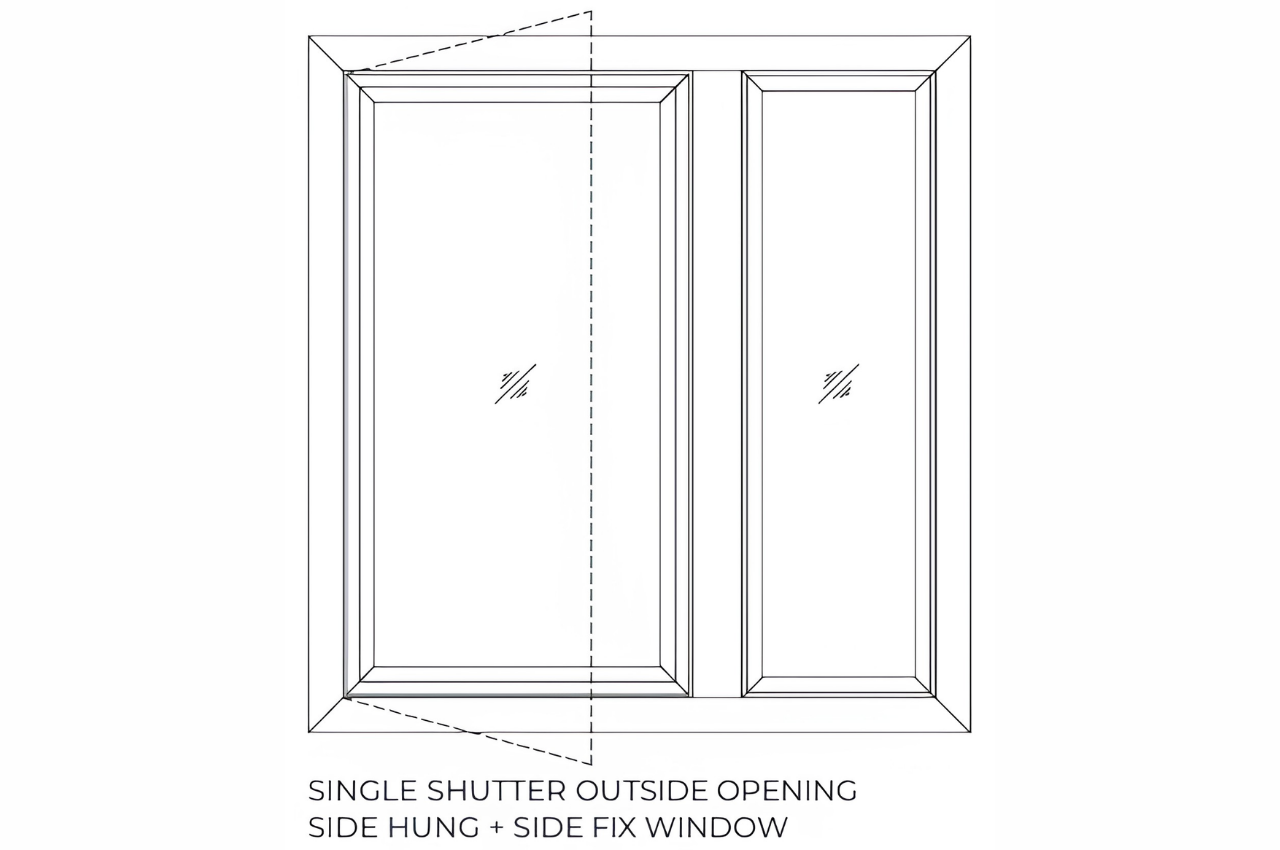

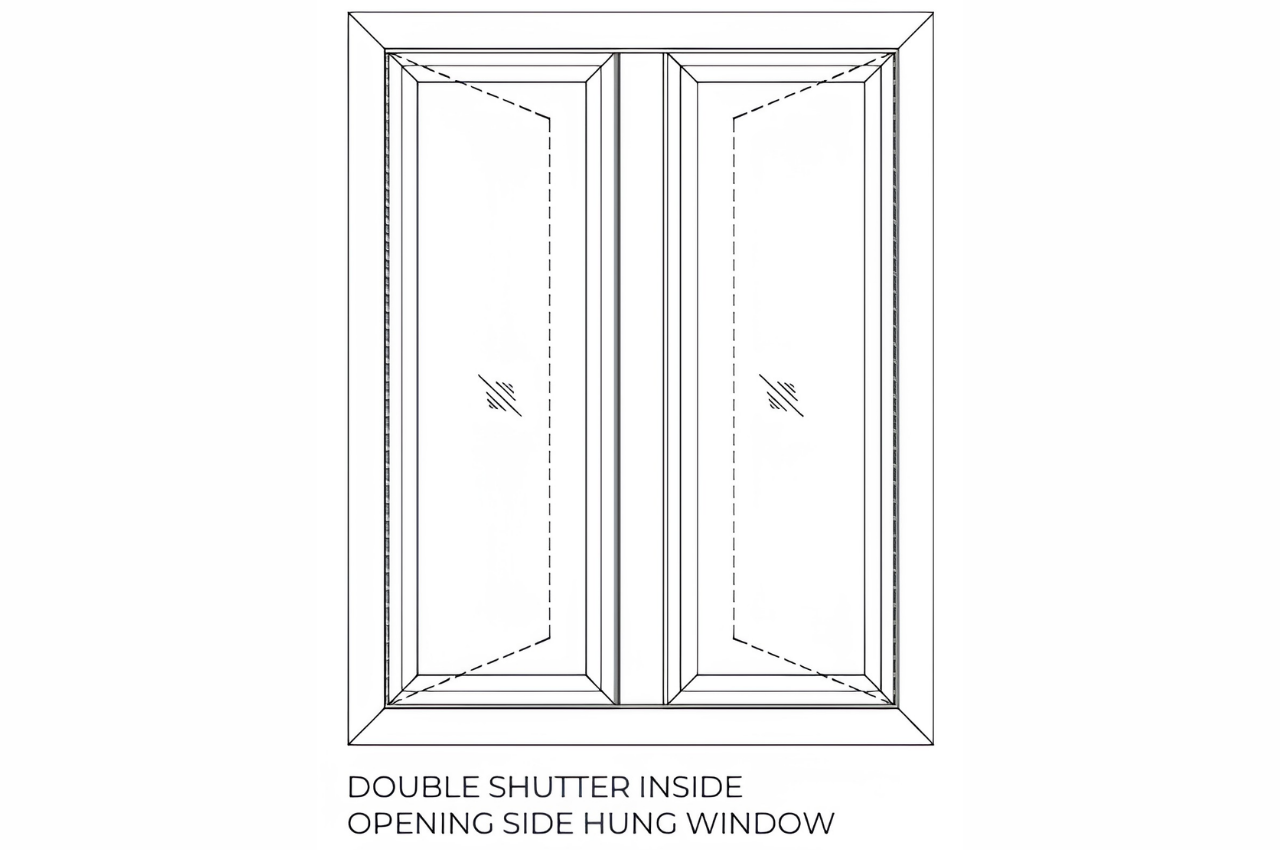

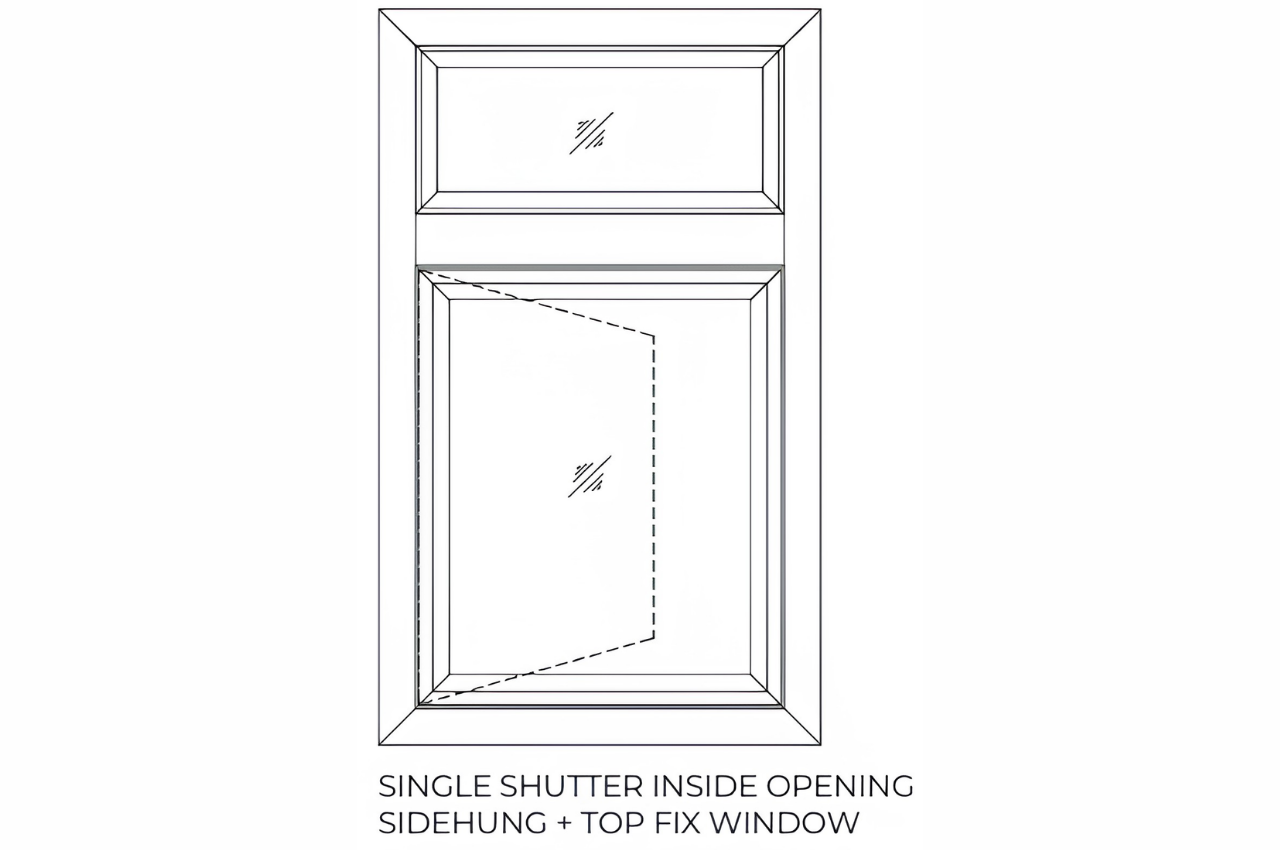

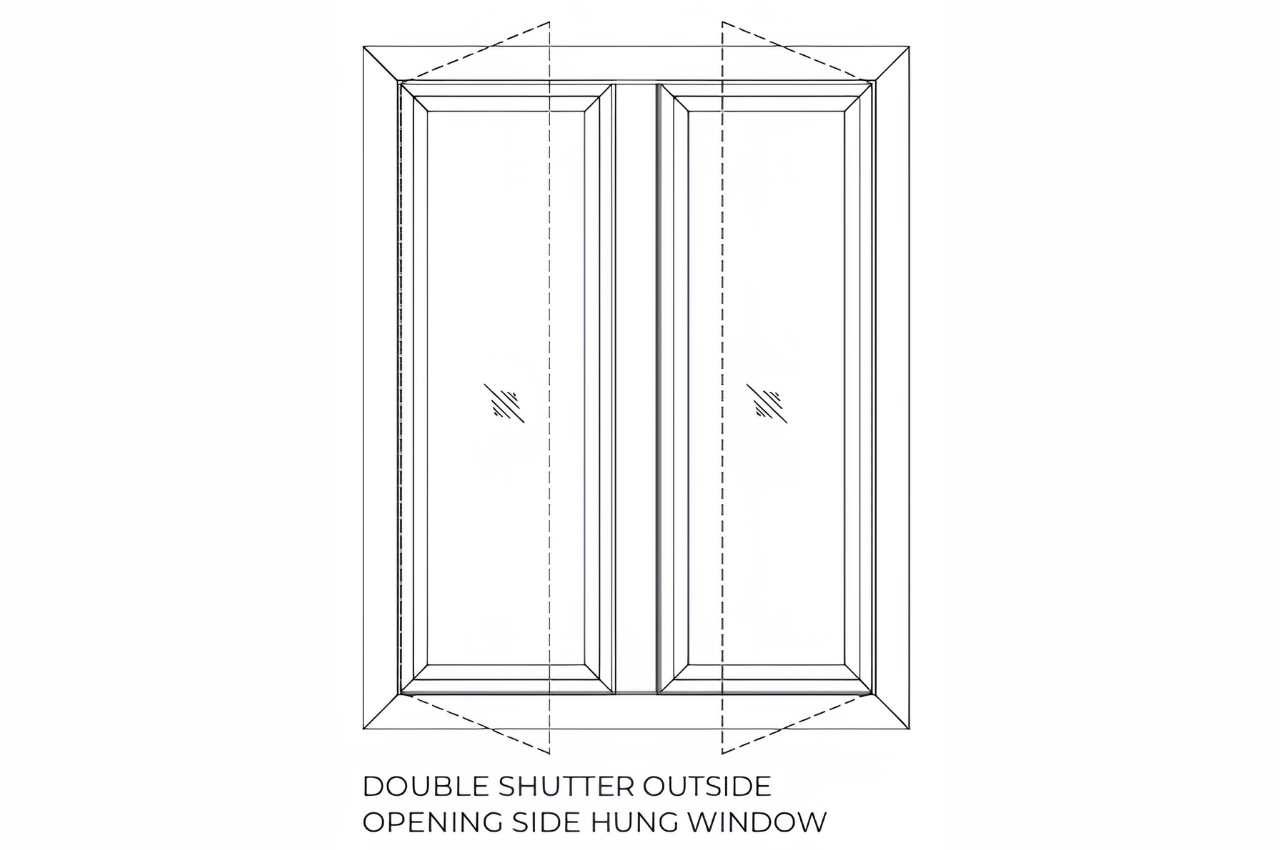

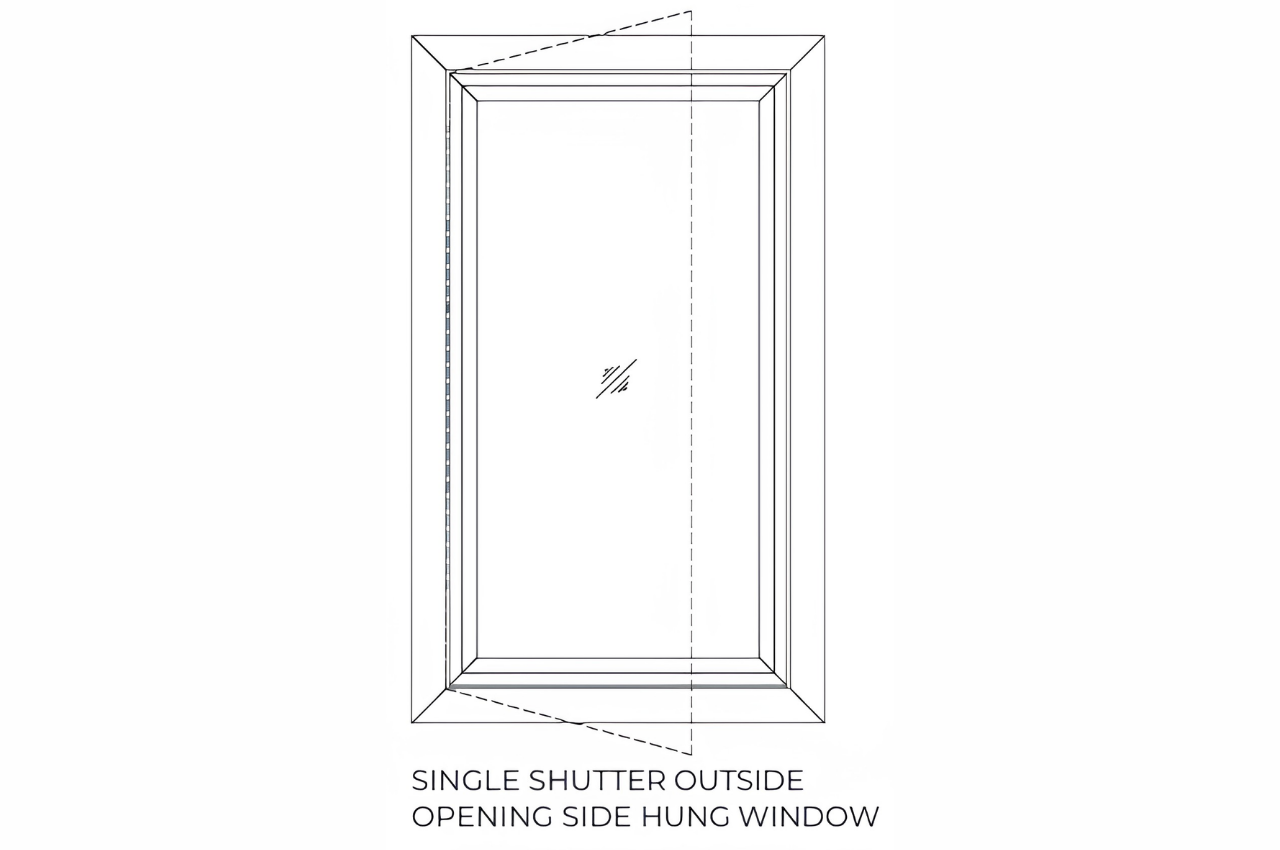

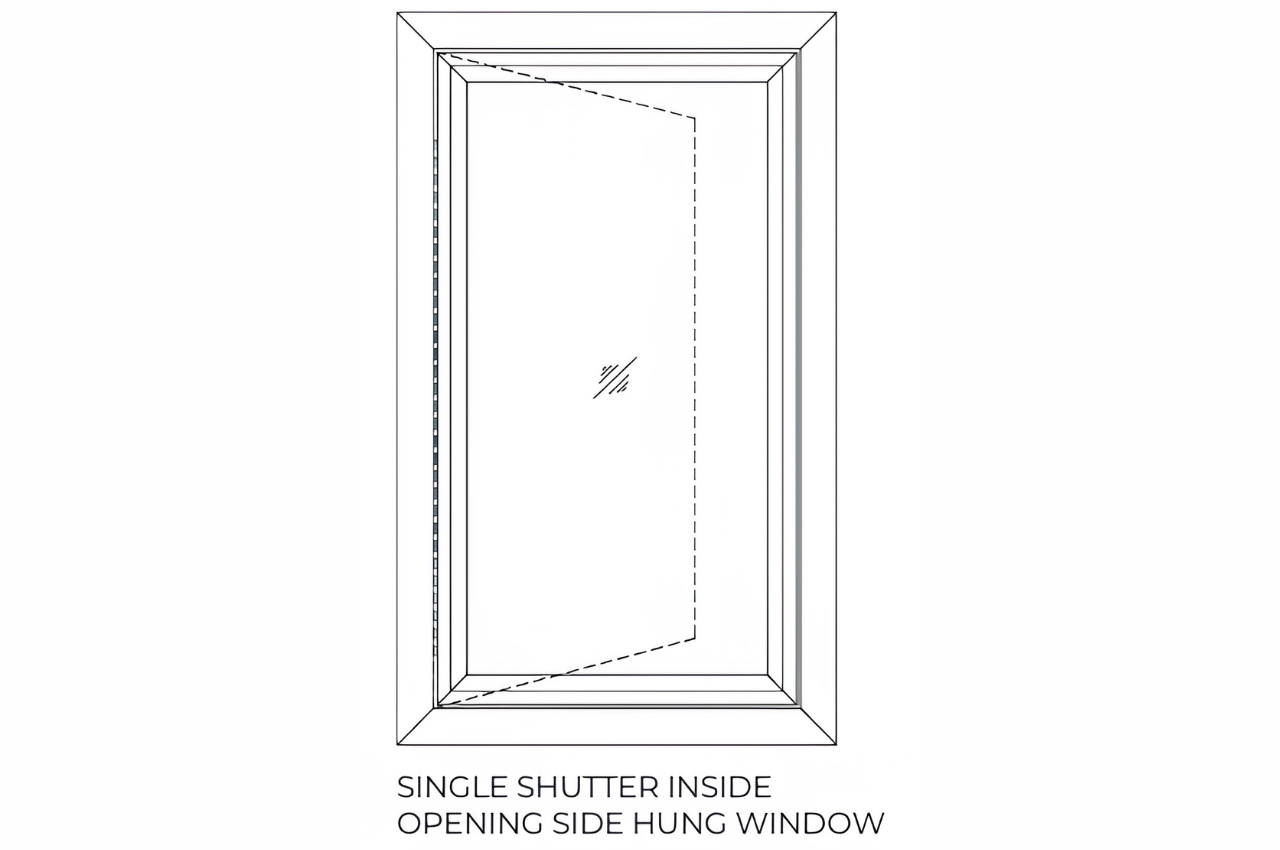

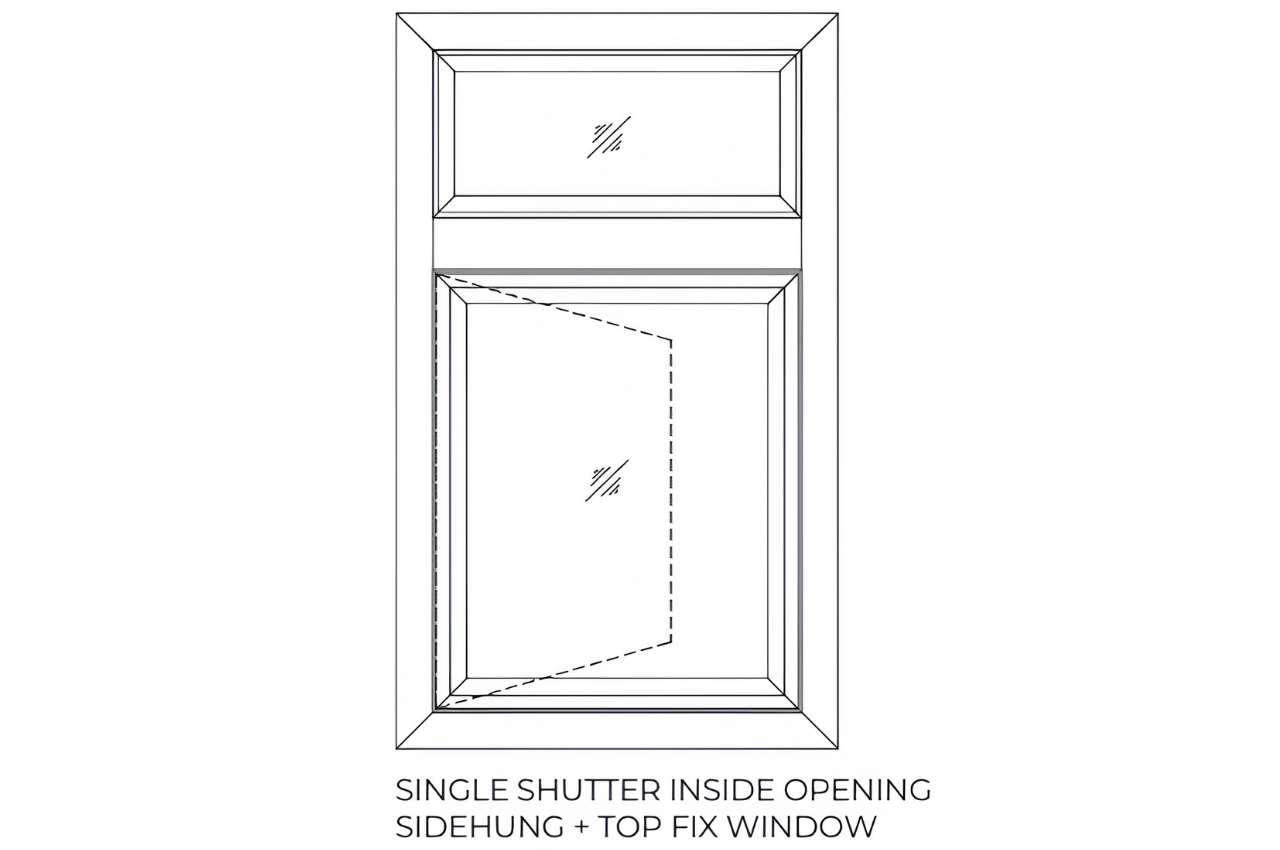

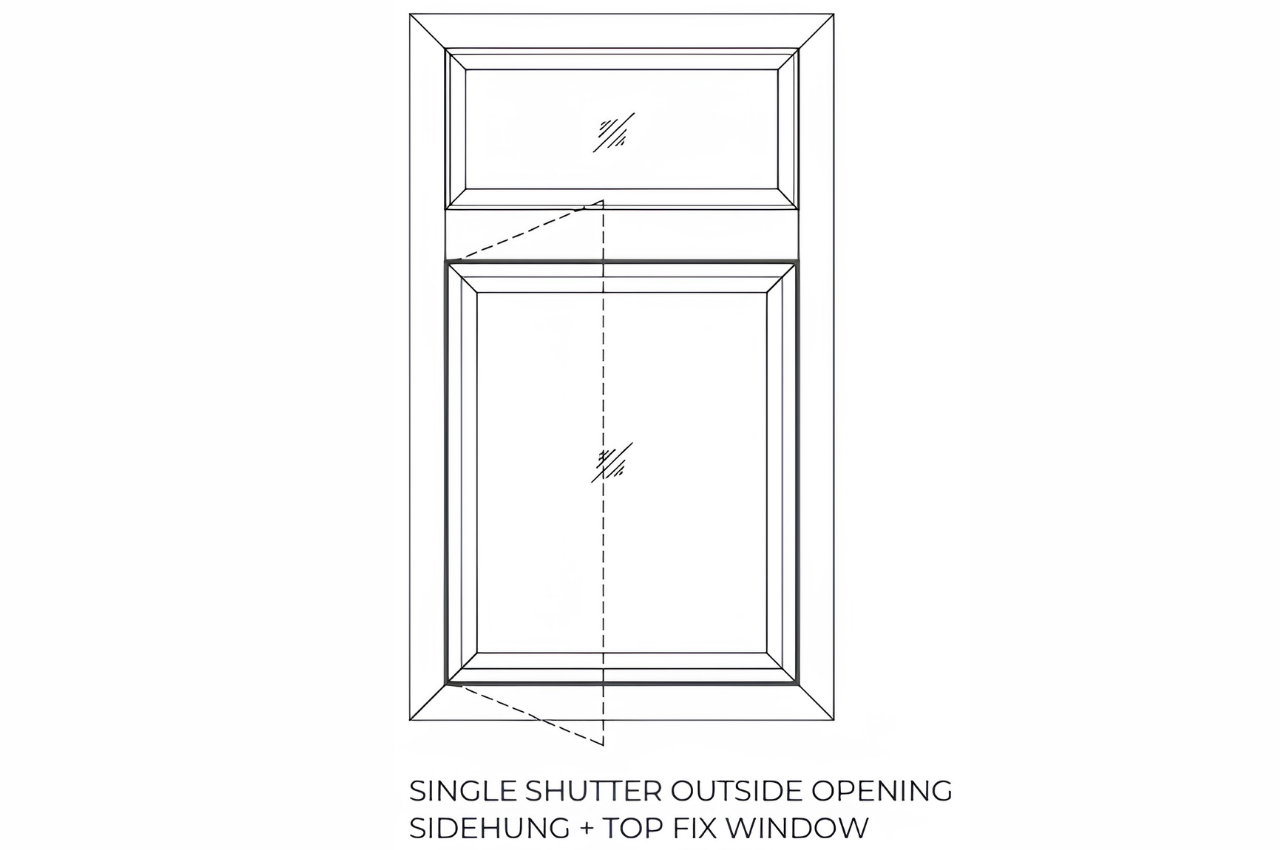

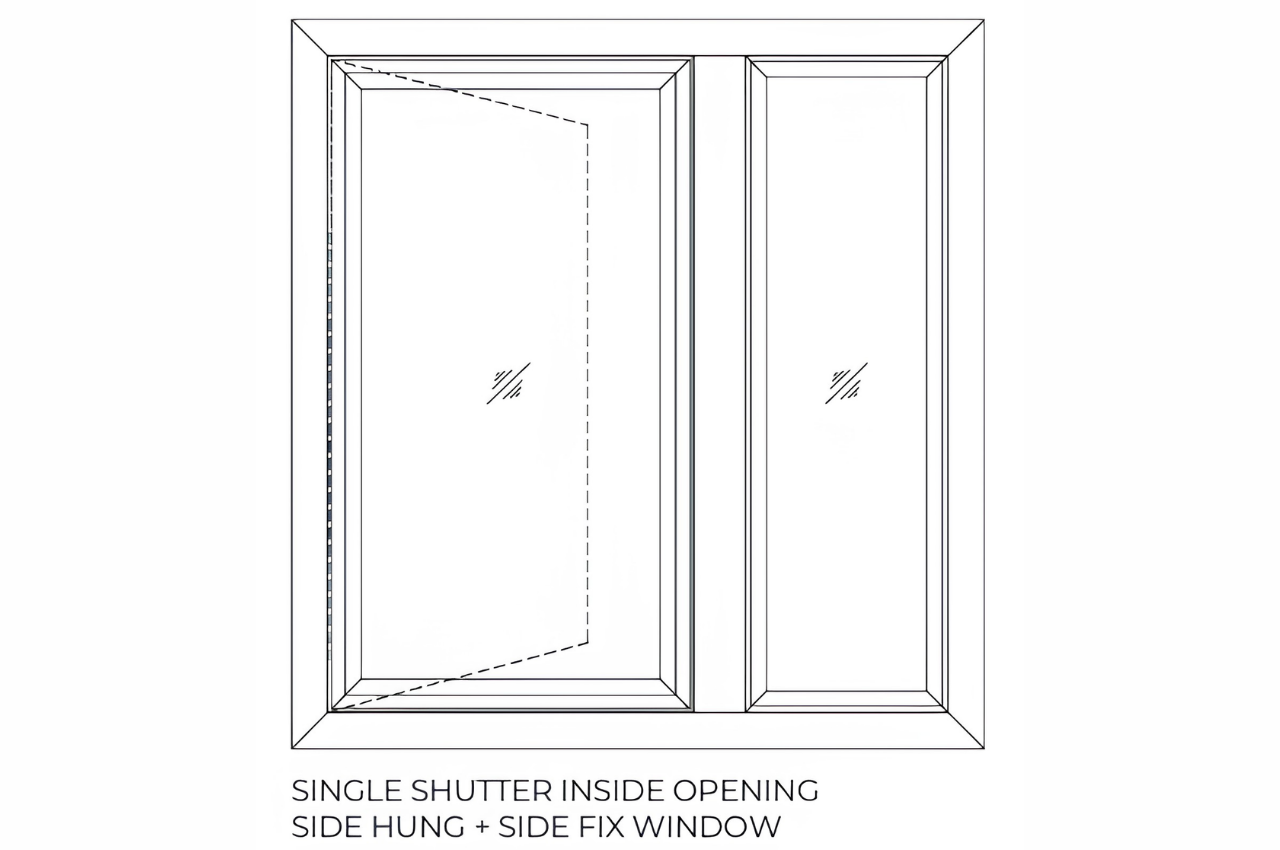

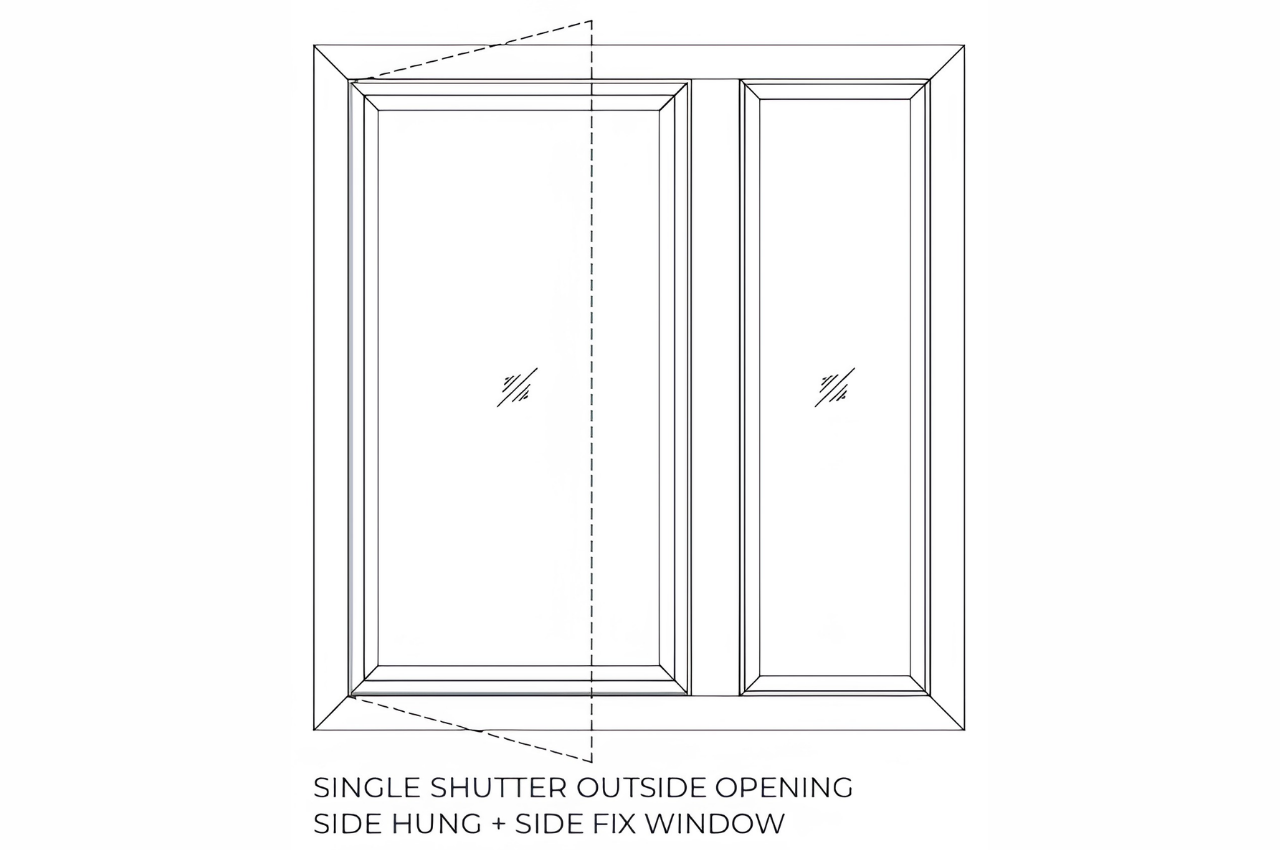

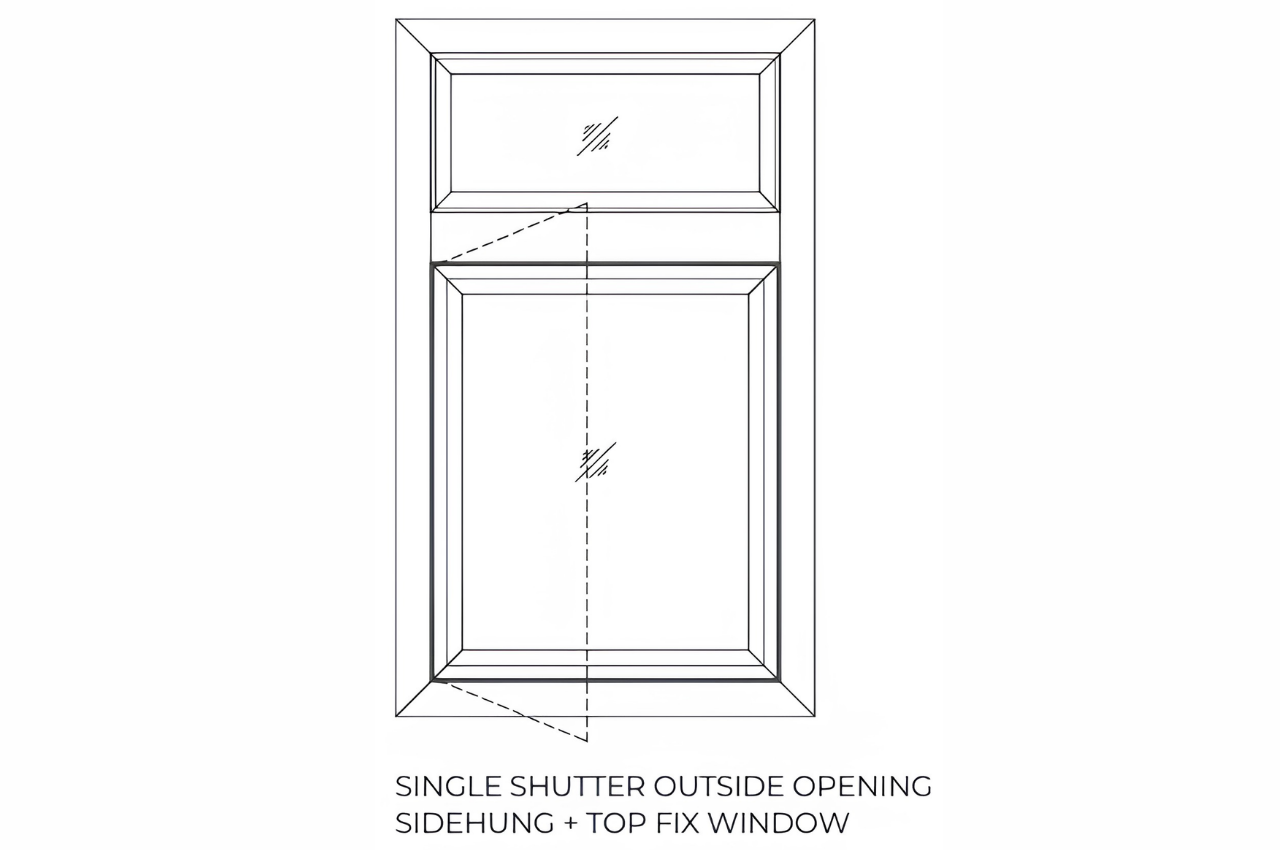

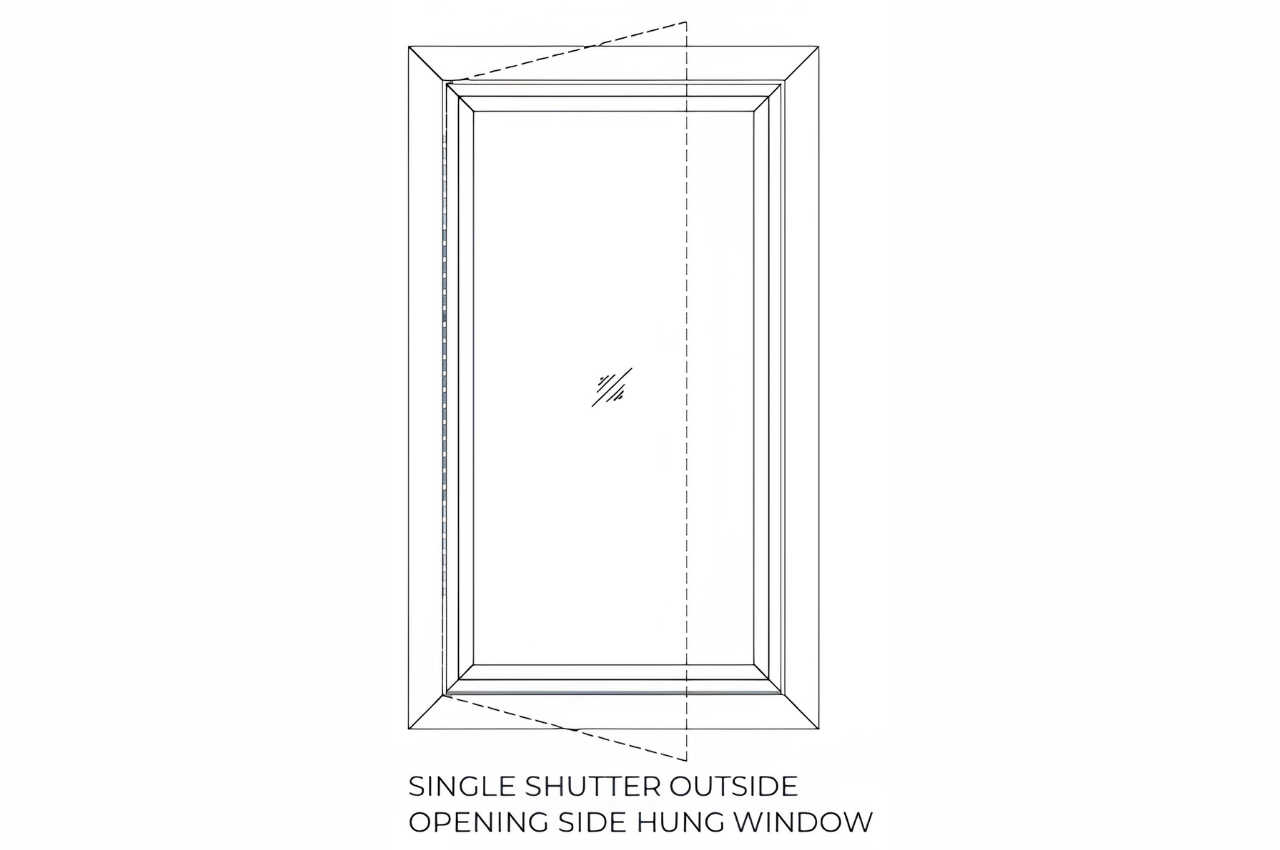

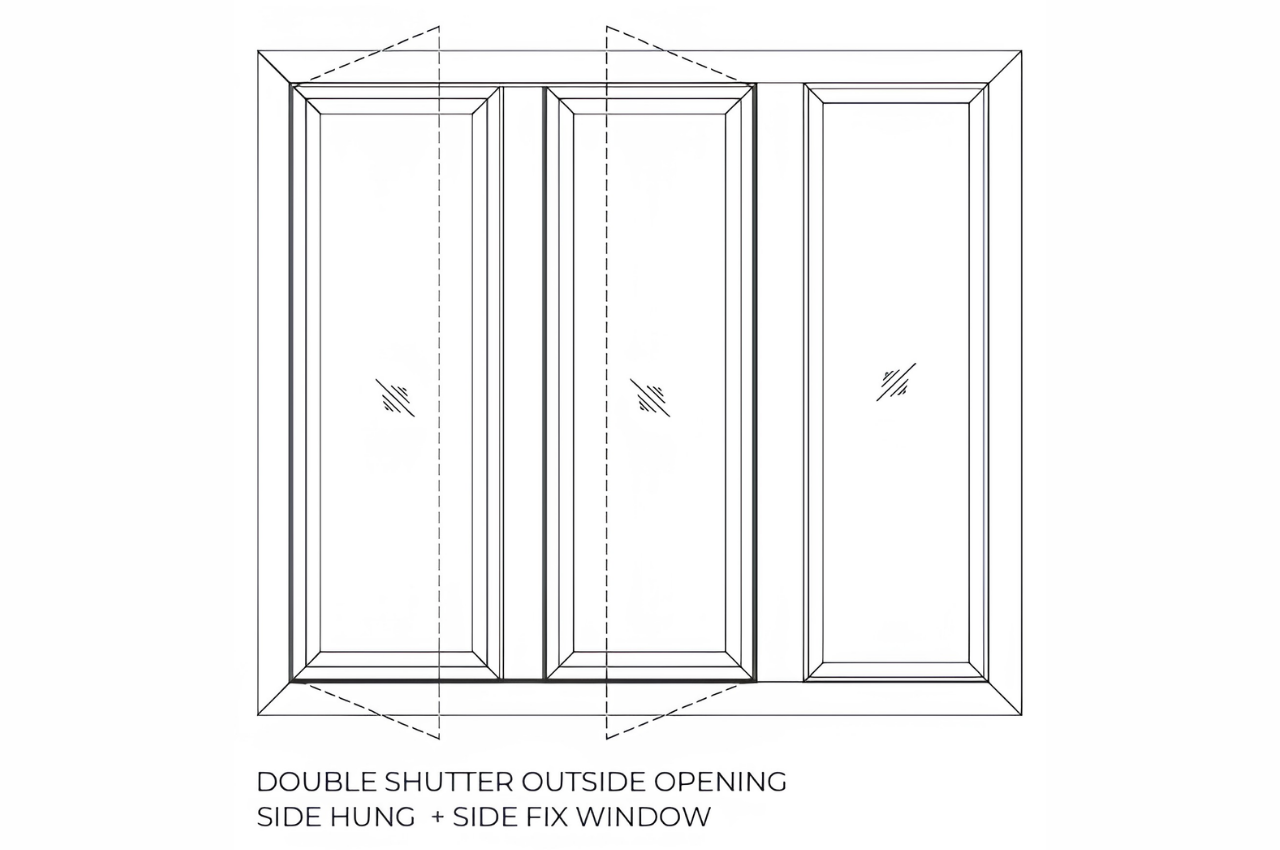

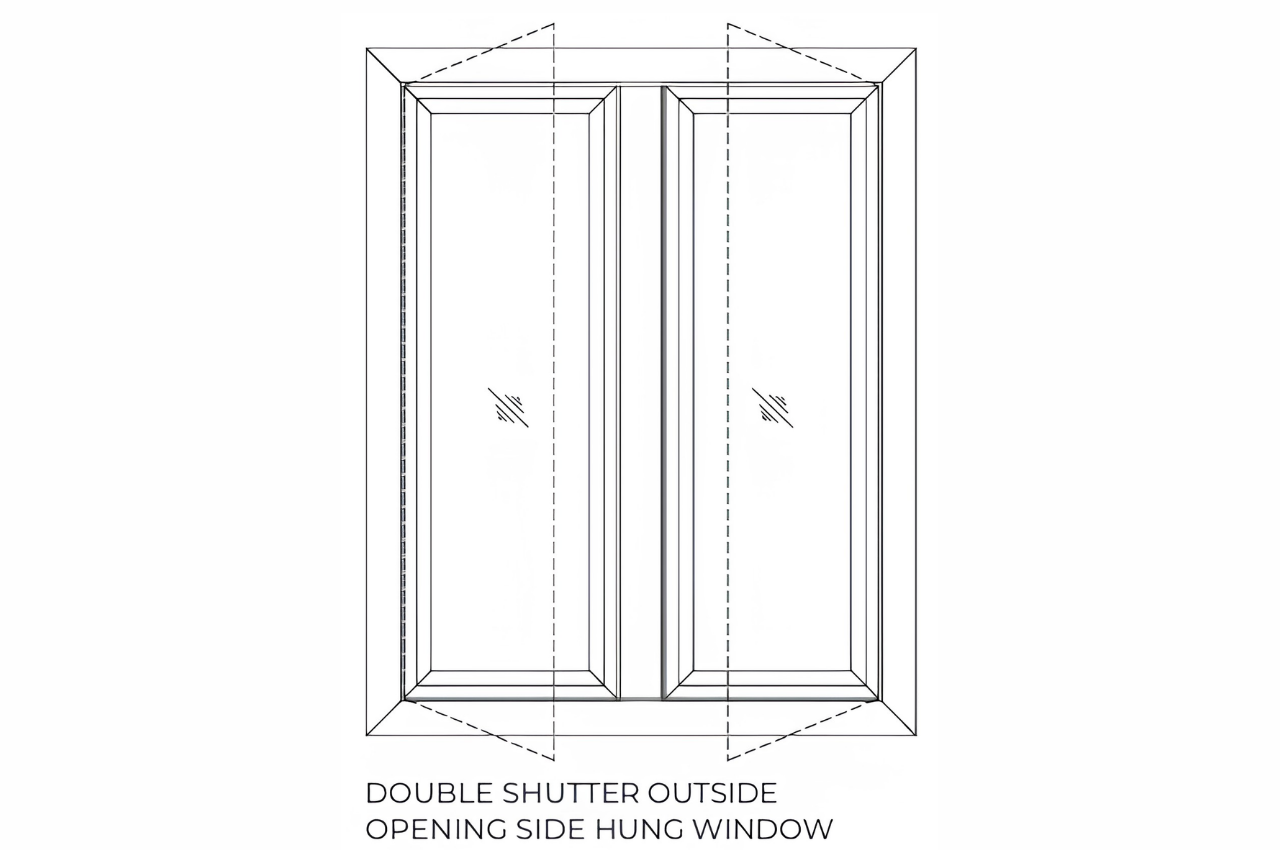

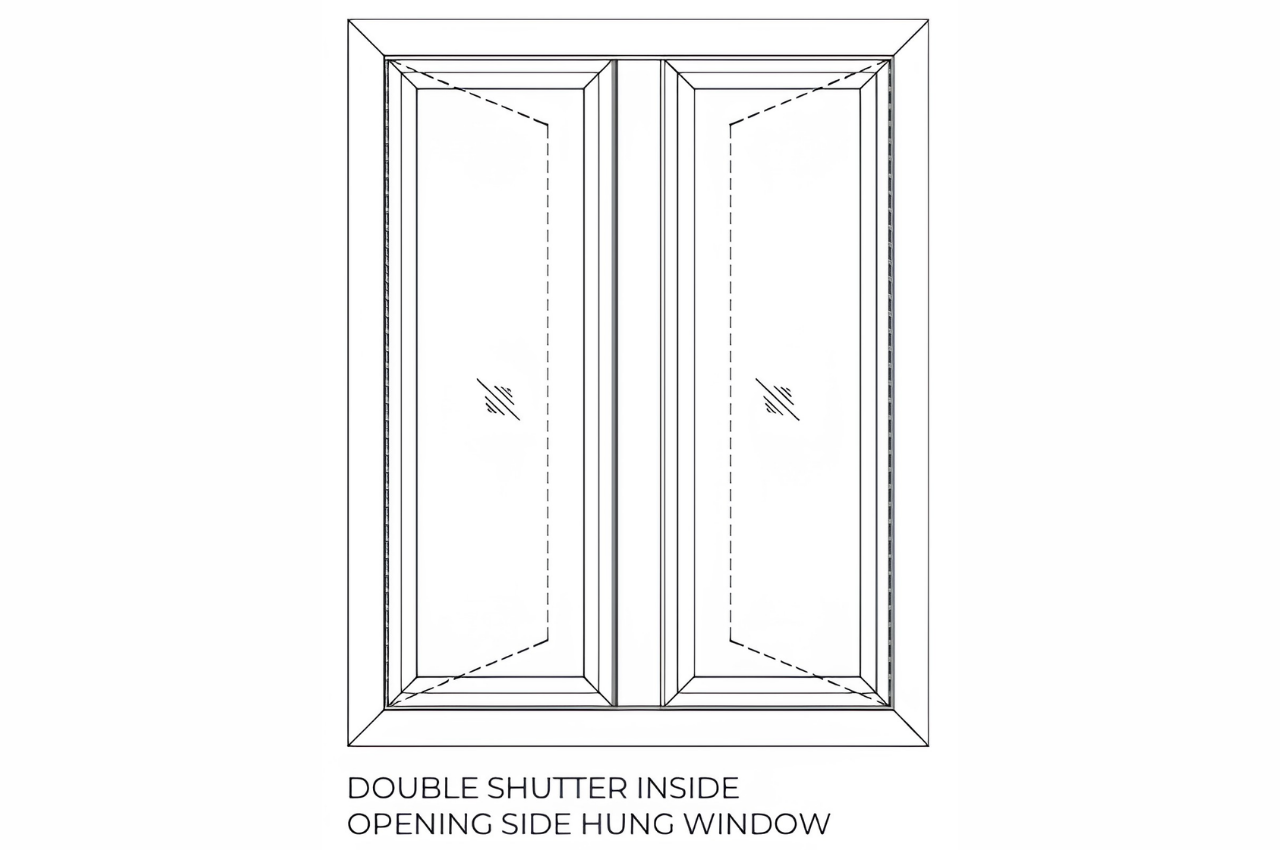

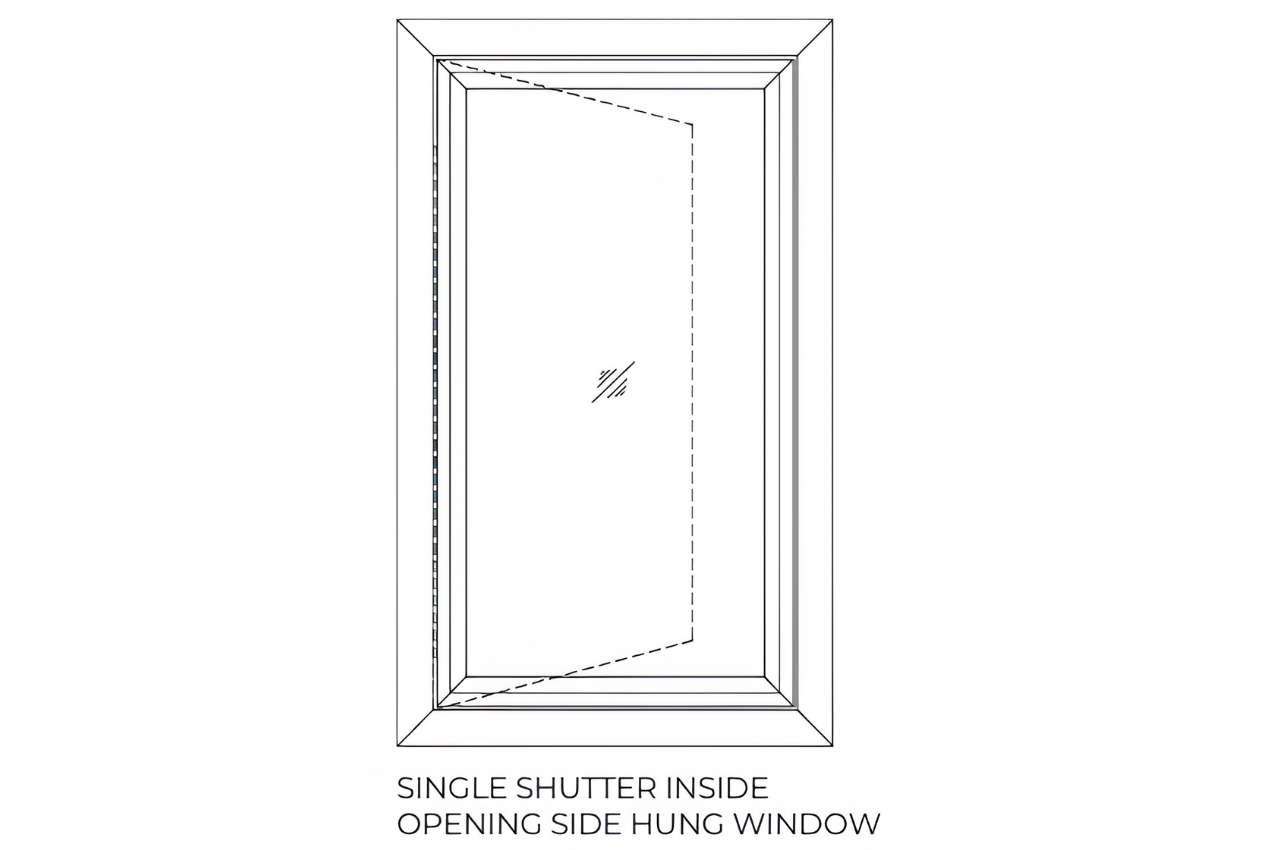

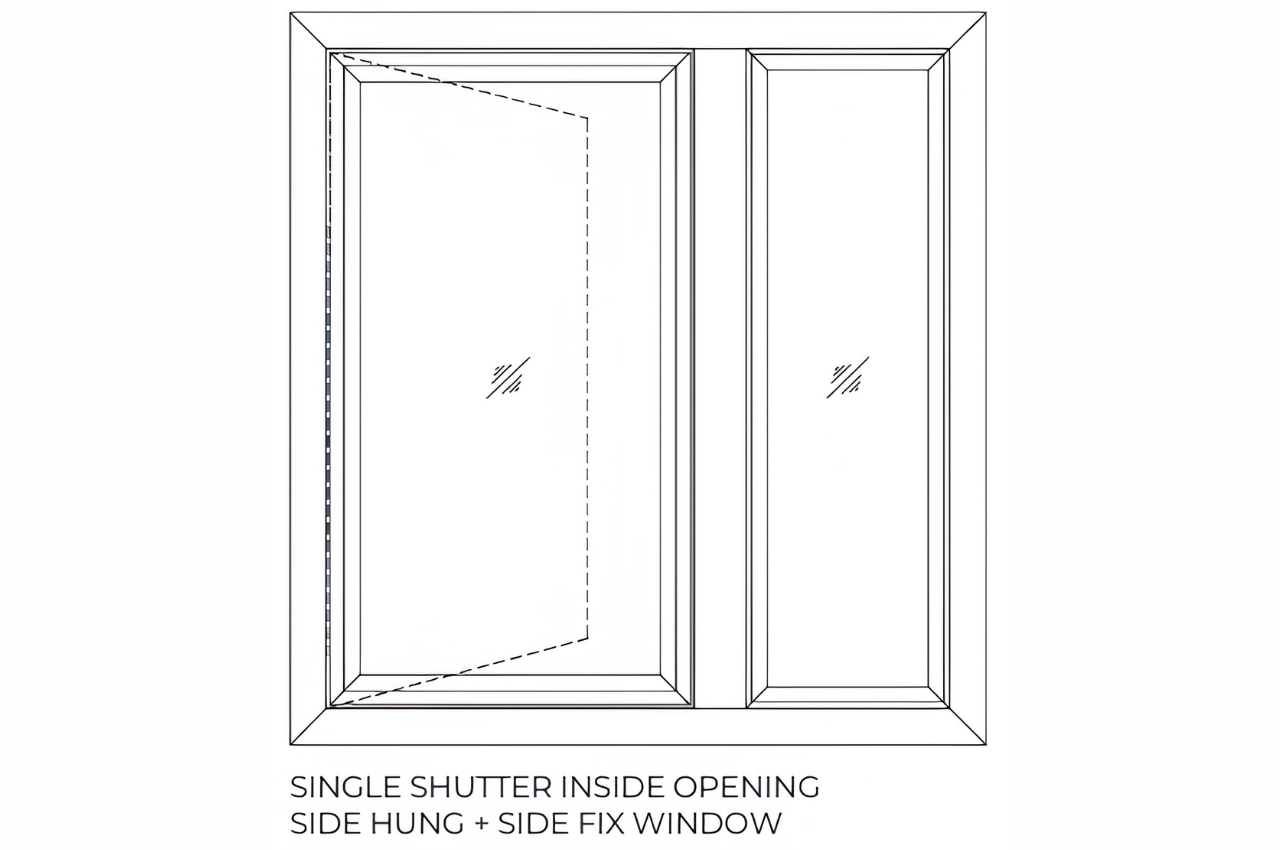

Popular Typologies

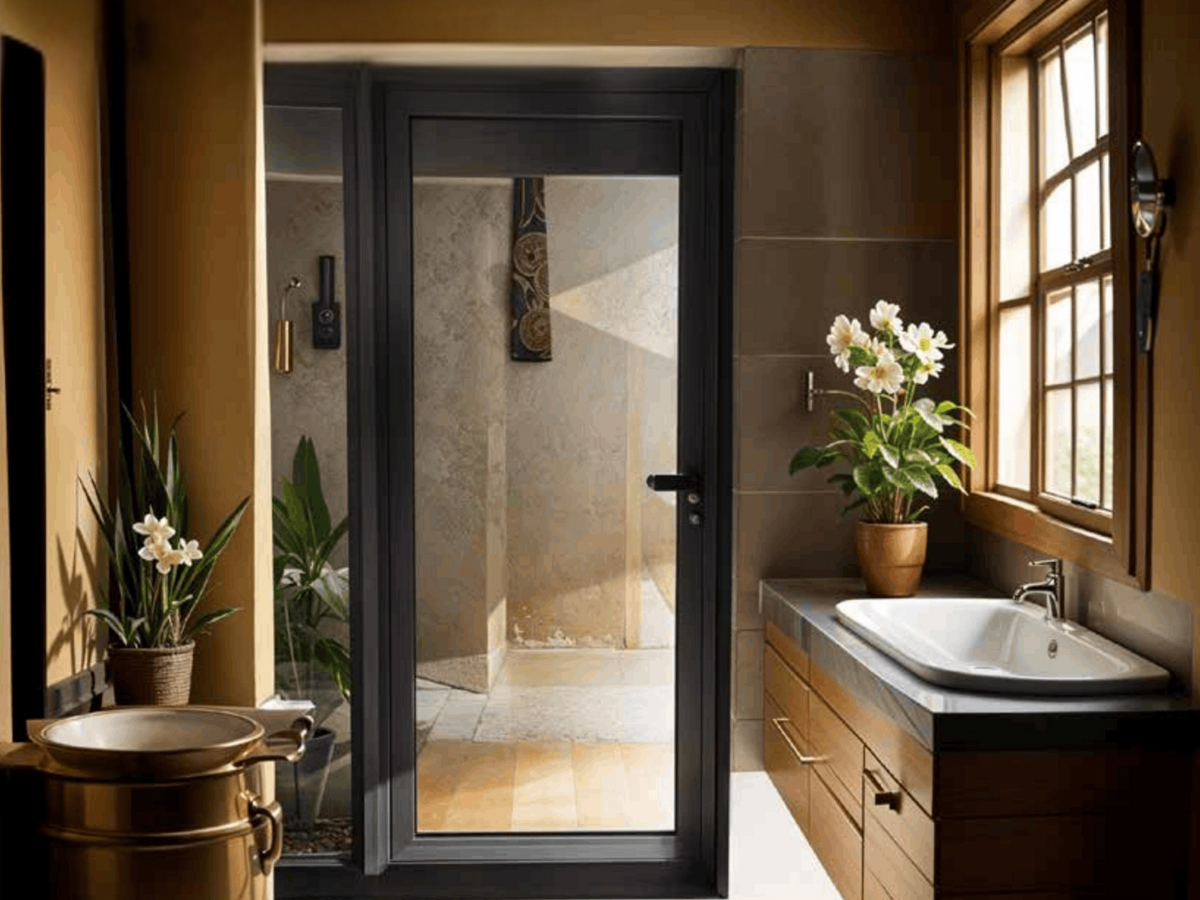

TOT CS Plus
Casement series

Product specifications

  • Max sash height (mm):
    Door – 2700, Window – 2000
  • Max sash width (mm):
    Door – 900, Window – 900
  • Glass range (mm): 6 – 24

Performance parameters

  • Wind load: 2.0 kpa
    As per class C5 (BS EN12210 : 2000)
  • Air tightness: 300 Pa
    As per class 2 (BS EN12207 : 2000)
  • Water tightness: 300 Pa
    As per class 7A (BS EN12207 : 2000)

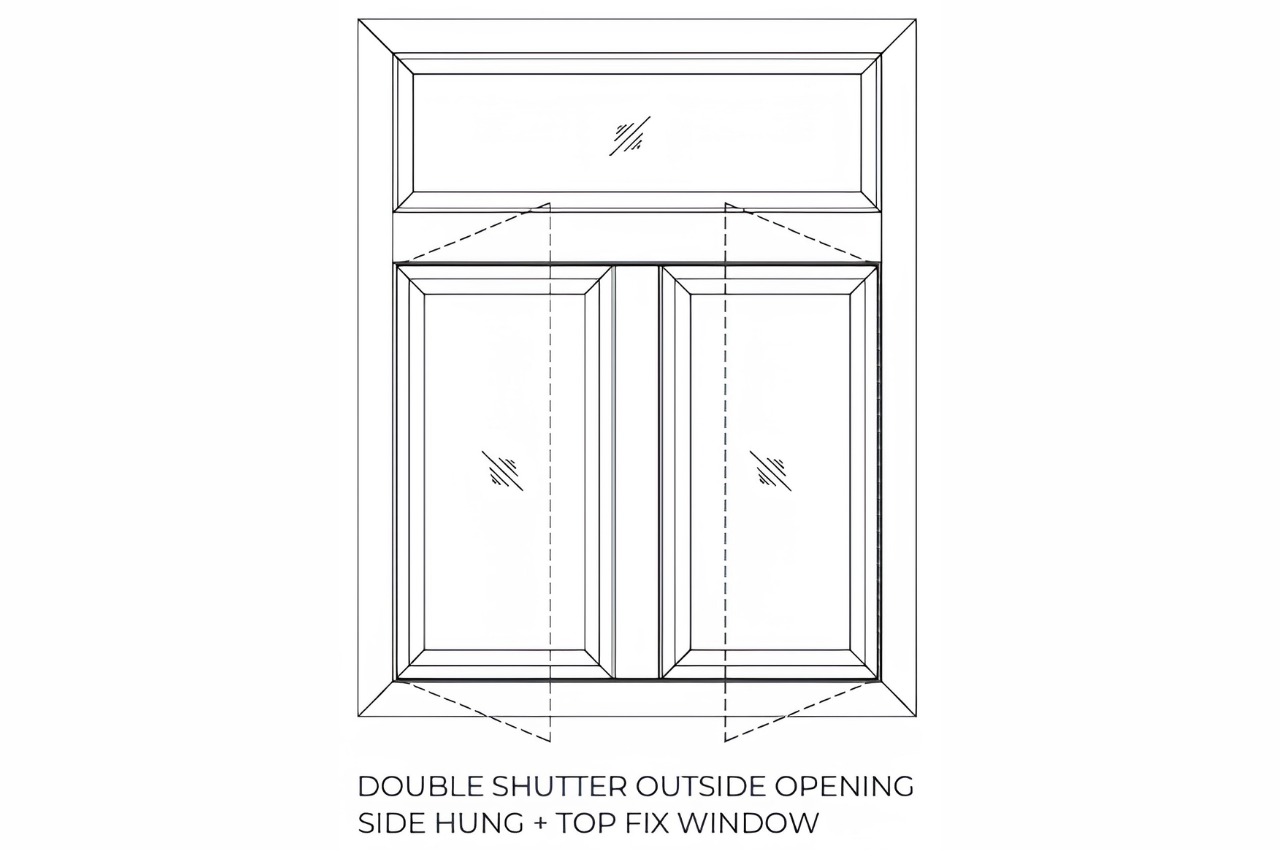

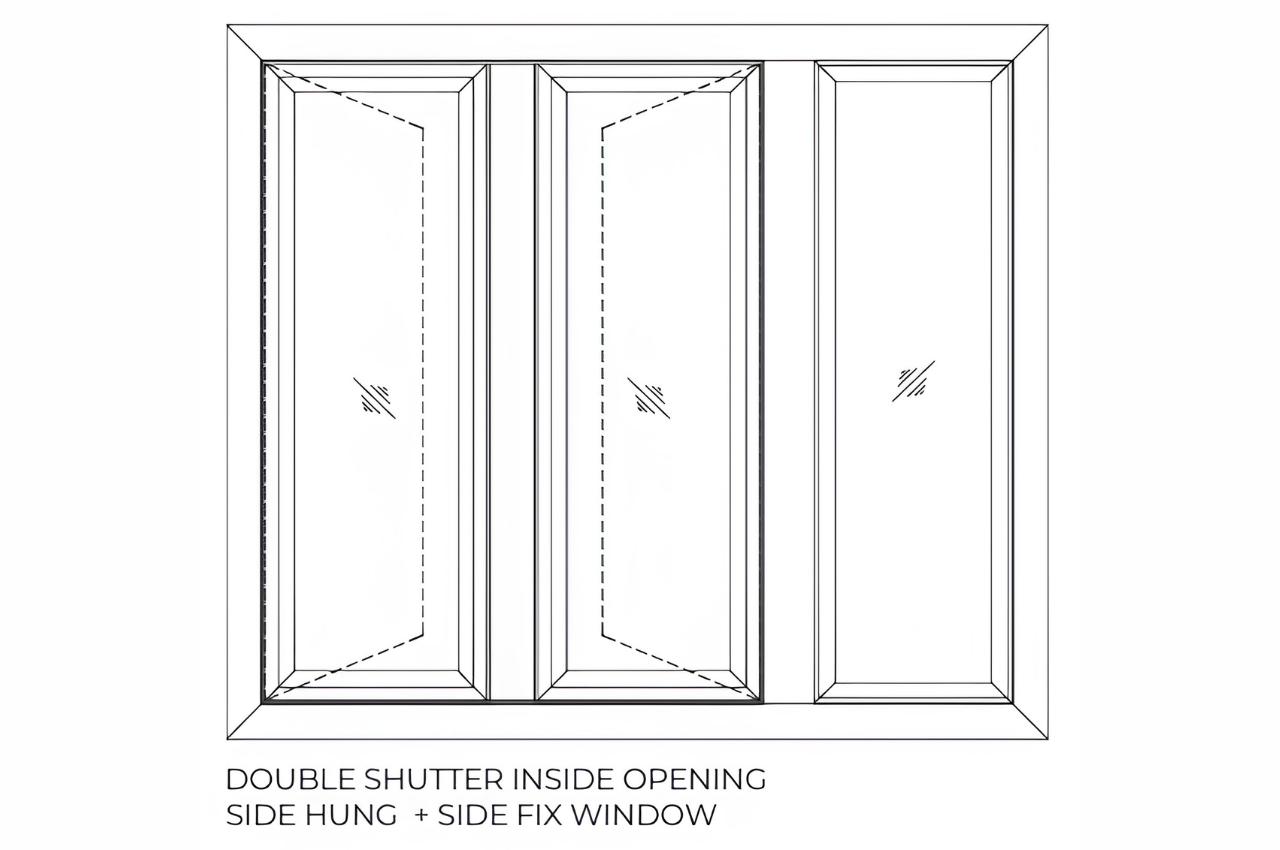

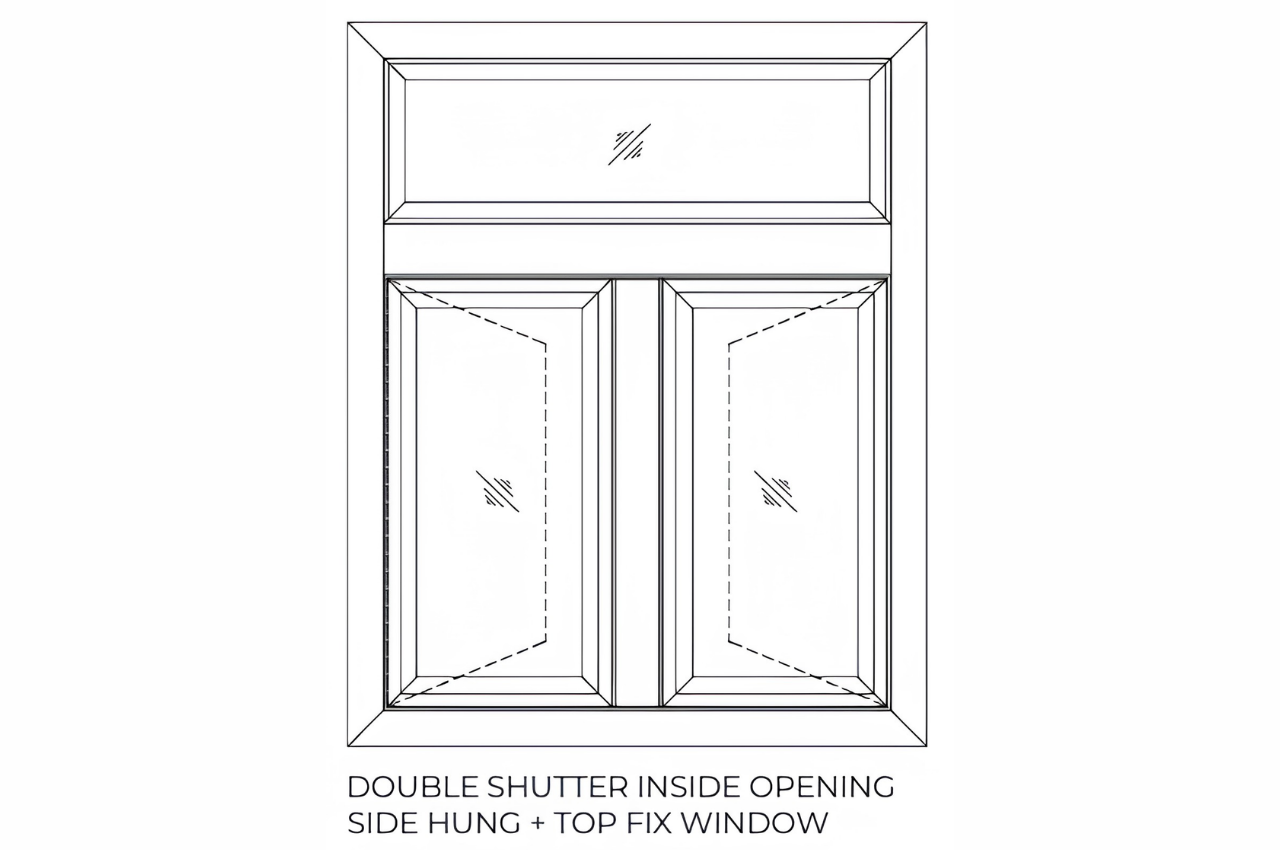

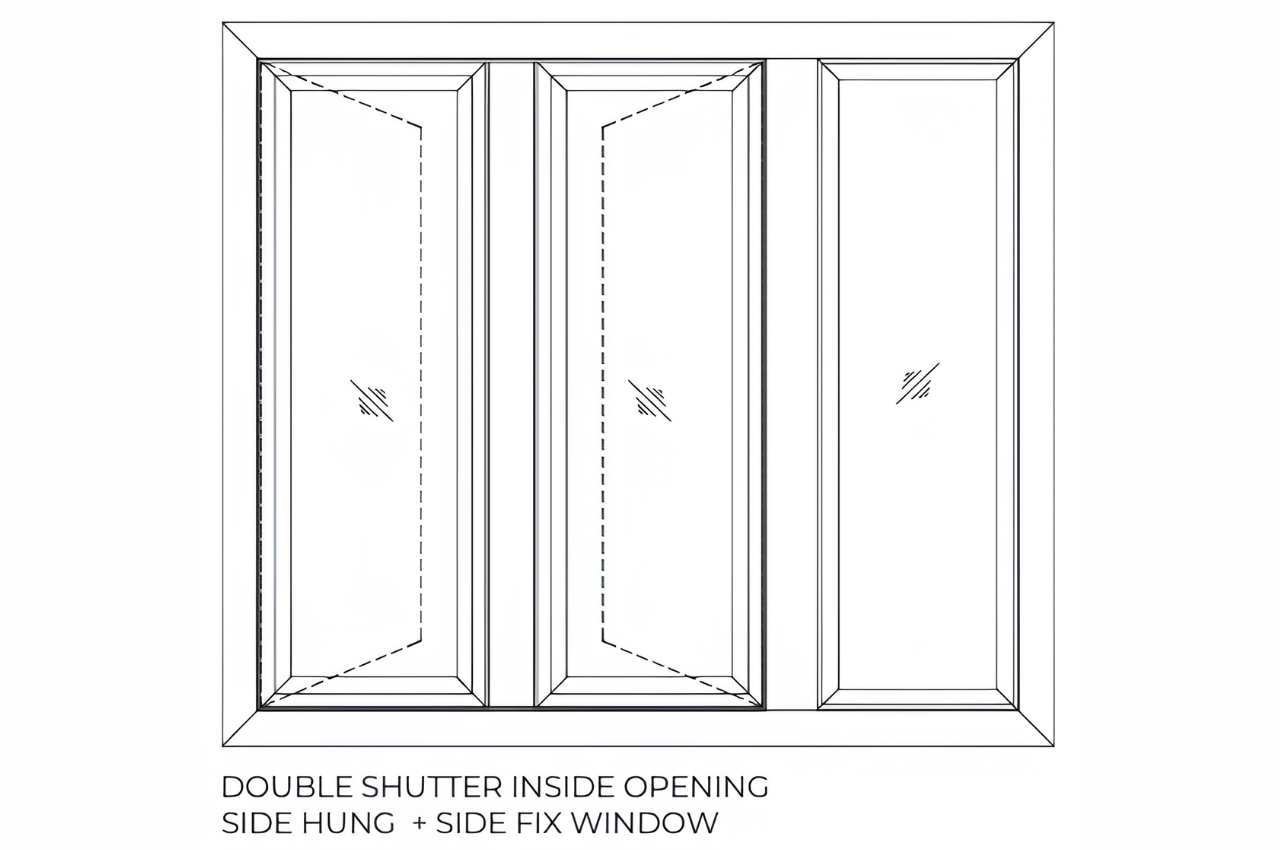

Popular Typologies

Experience the Difference of Precision Engineering

Get in touch with our team today to explore our System Windows Series and find the perfect solution for your project.
